Fluid End Parts
The hydraulic valve seat puller is a professional service tool designed to safely remove an installed valve seat from the mud pump fluid end module during valve seat replacement or routine pump maintenance. It eliminates damage to fluid end expendables that is often caused by removing the valve seat with a cutting torch.
Product Introduction
The hydraulic valve seat puller is a professional service tool designed to safely remove an installed valve seat from the mud pump fluid end module during valve seat replacement or routine pump maintenance. It eliminates damage to fluid end expendables that is often caused by removing the valve seat with a cutting torch.
Components

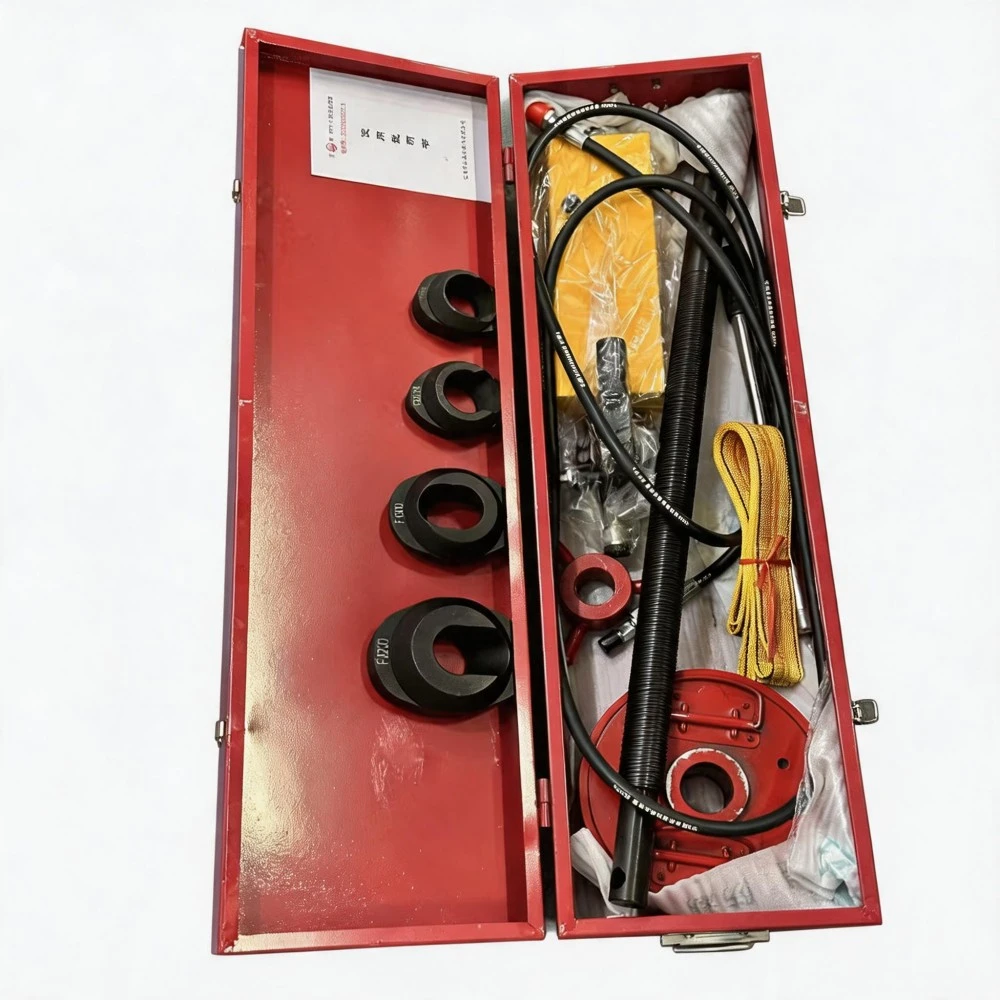

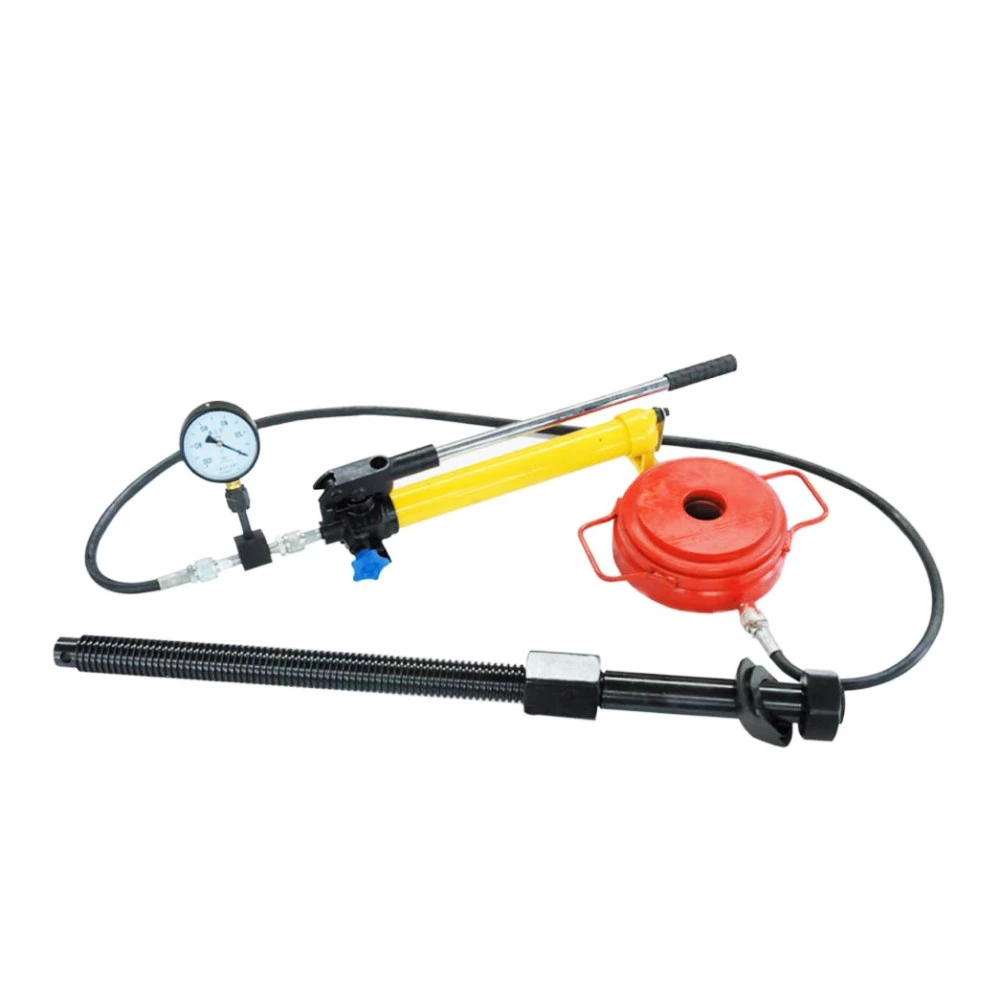

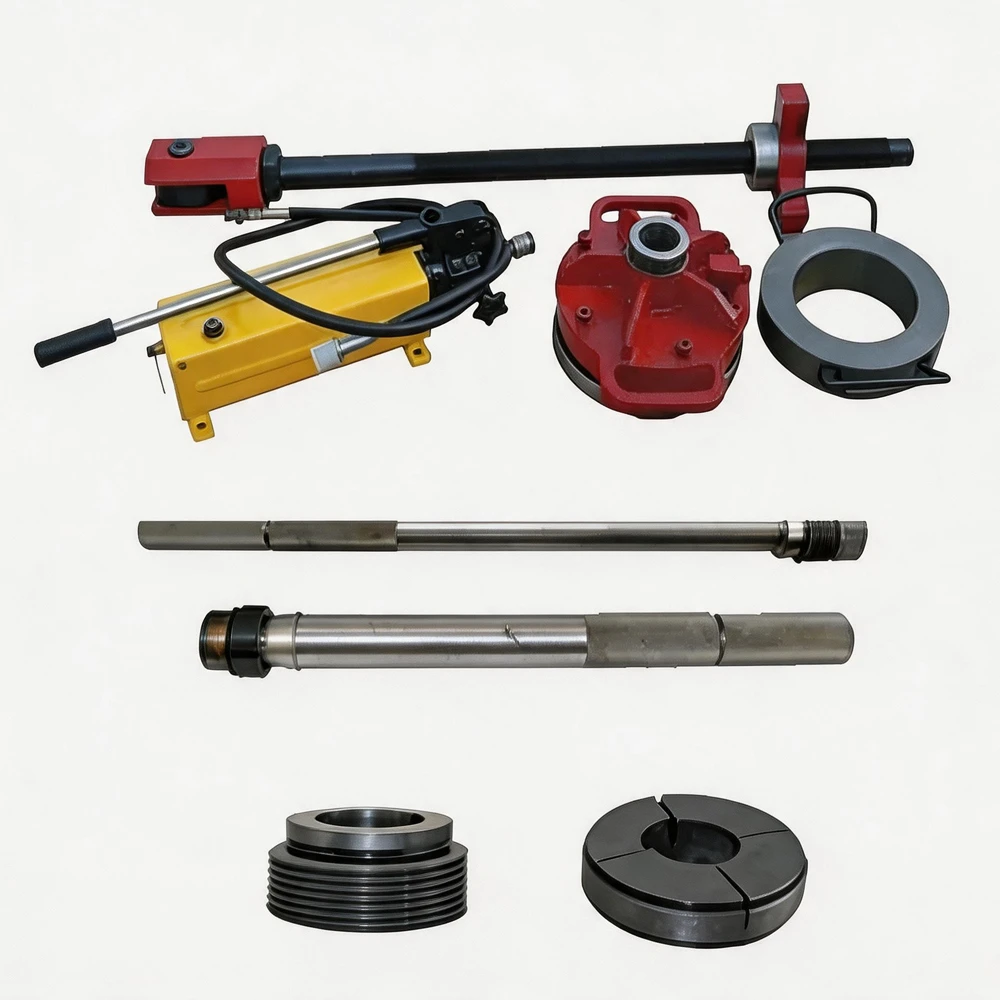

Consists of an oil cylinder, a hydraulic hand pump with pressure gauge, full thread rods, and a puller claw.
Key Advantages
Simple structure, easy to operate
Saves significant manpower and maintenance time
Cost-effective with high efficiency
Key components (full thread rods and puller claw) are made of 35CrMo forged steel for durability
Applicable Valve Seat Sizes
API #4, #5, #6, #7 valve seats; also available for 3-WEB, 4-WEB, and FULL OPEN valve seats.
Compatible Pump Models
Works with Gardner Denver triplex pumps, Emsco mud pumps, NOV triplex pumps, Bomco pumps, OILWELL mud pumps, IDECO pumps, OPI pumps, and more.
Technical Specifications
|
Brand |
Type |
|
Emsco |
F500 F800 F1000 F1300 F1600 |
|
Gardener denver |
PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 |
|
National |
7-P-50 9-P-100 12-P-160 K-700 |
|
Ideco |
T-500 T-800 T1000 T-1300 |
|
Oilwell |
A-350PT A-600PT A-850PT A-1700PT |
|
Russian |
8T-650 UNBT-950 UNBT-1180L BT600 |
Applications
Offshore Drilling Mud Pump Replacement Parts
Corrosion-resistant power end and fluid end parts built for harsh marine conditions, fully interchangeable with mainstream F-series triplex mud pumps and designed for extended runtime between maintenance.
Deep Well Onshore Drilling Pump Components
Heavy-duty pump parts rated for high-pressure deep drilling operations, including forged crankshafts, crossheads and fluid end modules, delivering consistent performance under continuous heavy load per API standards.
Workover & Land Drilling Aftermarket Pump Parts
Cost-effective OEM-compatible spare parts for routine onshore drilling and workover projects, covering common wear parts of power end, fluid end and structural assemblies to cut maintenance costs.
