Power End Parts
FH Petroleum manufactures mud pump belt pulleys for OEM and replacement applications, with established production experience supplying BOMCO mud pump manufacturing programs.
Our standard belt pulleys are primarily manufactured from HT250 gray cast iron. For higher or special technical requirements, forged alloy steel configurations can also be custom manufactured according to approved specifications.
Controlled machining, heat treatment and finishing processes are applied according to product requirements. OEM and replacement production can be supported from verified pump models, part numbers, technical drawings, dimensions or approved samples.
Product Description
The mud pump belt pulley, also commonly referred to as a drive sheave, is a key component of the mud pump power transmission system. It transfers power from the drive system to the mud pump through multiple V-belts.
For large mud pumps operating under demanding drilling conditions, pulley geometry and manufacturing consistency are important to reliable power transmission. The center bore, hub, mounting features and V-belt grooves must be manufactured according to the specified drive arrangement and dimensional requirements.

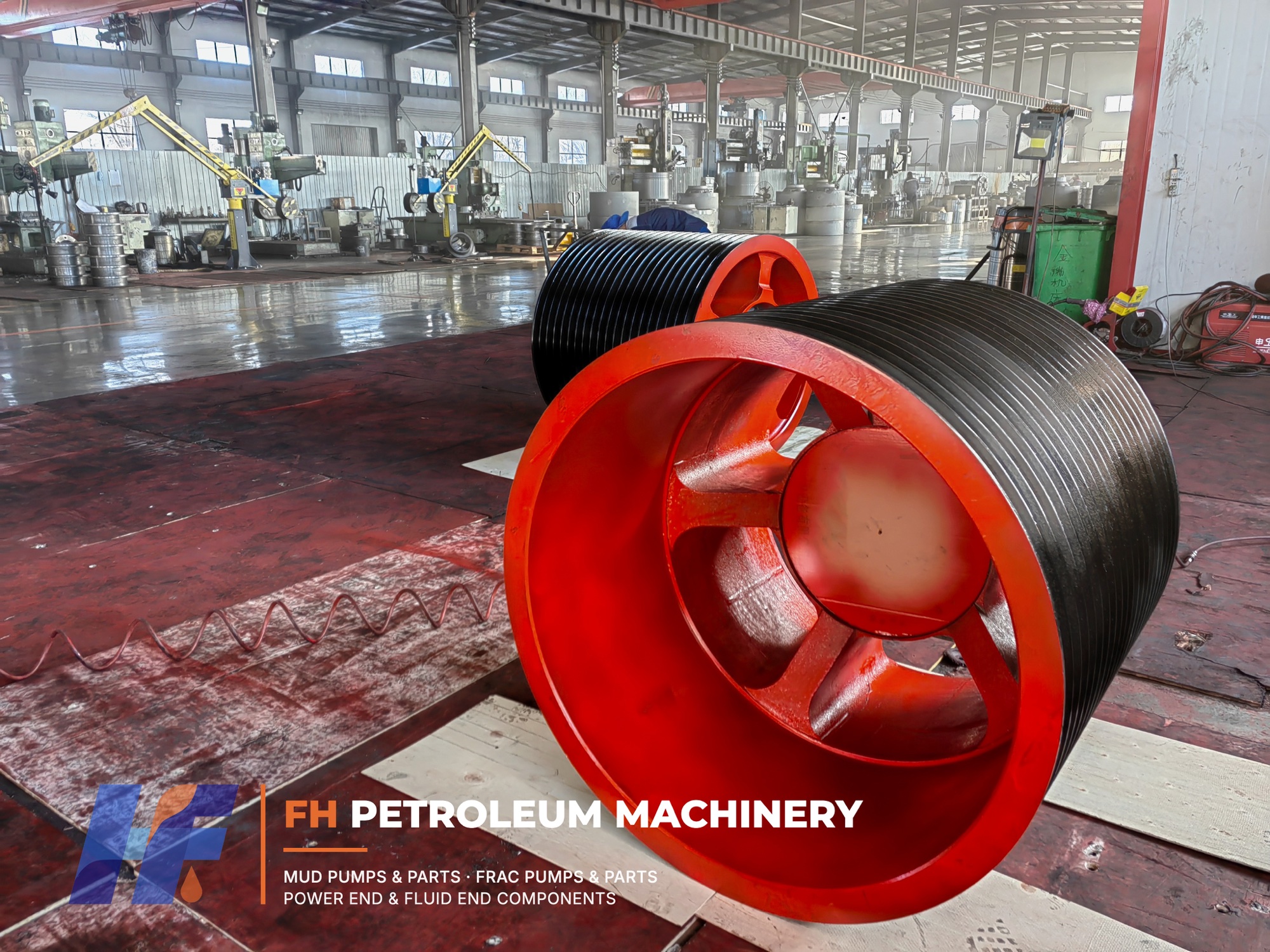

FH Petroleum manufactures large multi-groove mud pump belt pulleys for OEM production and replacement applications.
HT250 gray cast iron is the primary material used for FH Petroleum's standard mud pump belt pulley production.

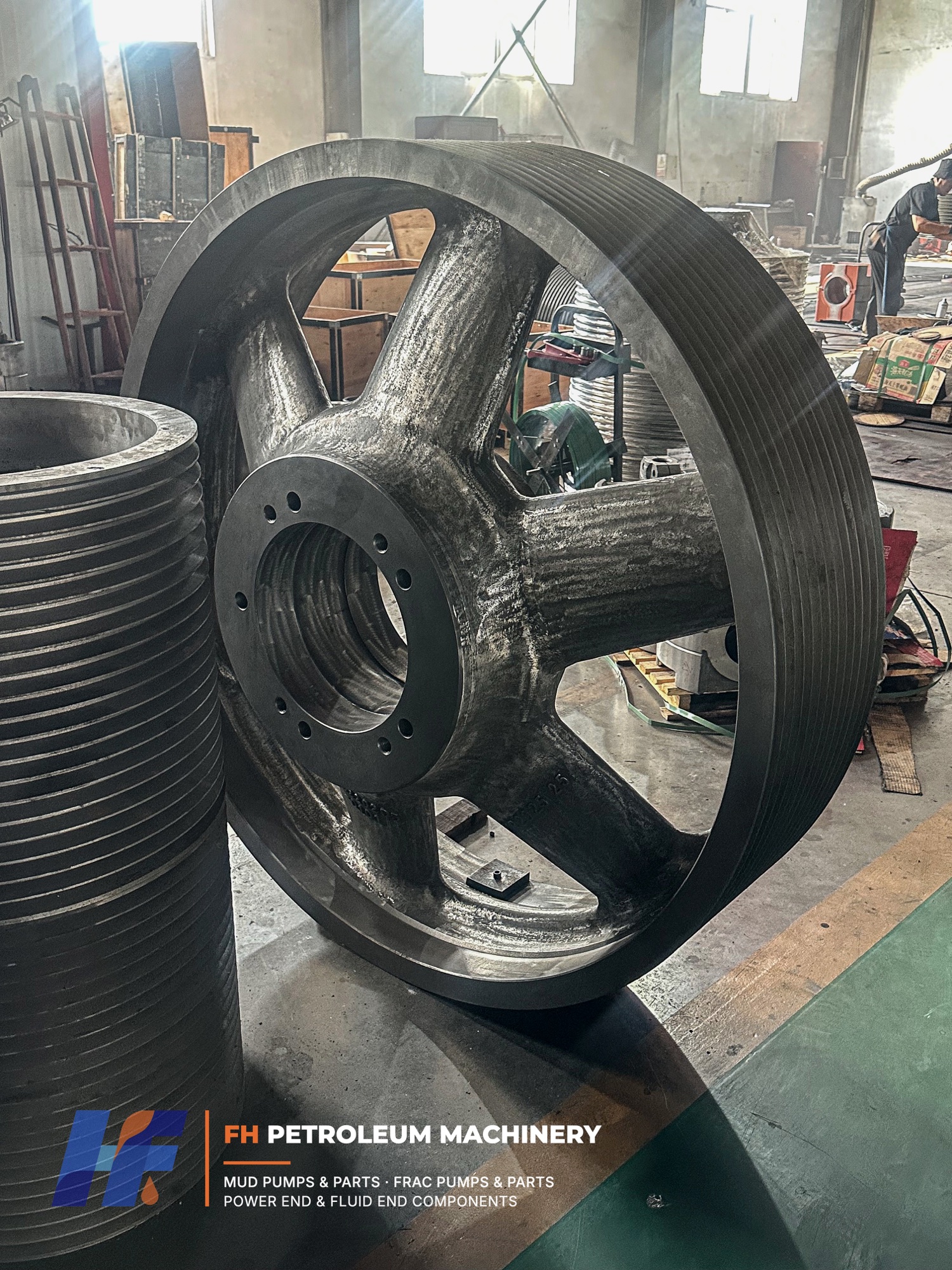

Pulley bodies are manufactured according to the approved product design, with the hub, rim, spoke and multi-groove areas produced to the specified pulley geometry and technical requirements.
For applications requiring higher or special material specifications, forged alloy steel belt pulleys can also be custom manufactured according to approved designs and customer requirements.

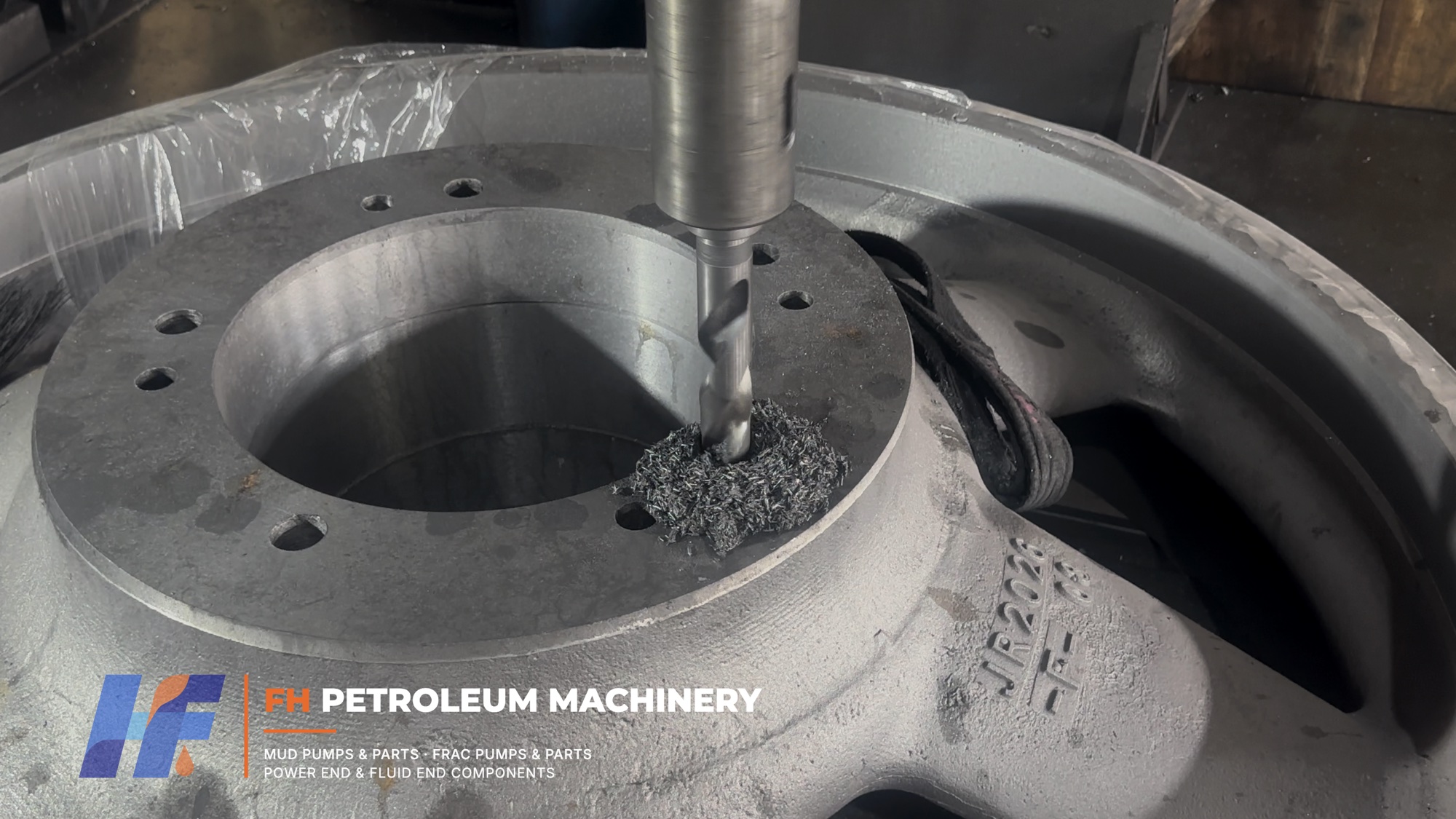

Machining is a critical stage in mud pump belt pulley production. FH Petroleum machines key pulley features including the center bore, hub, mounting holes and multi-groove belt profile according to approved drawings and dimensional requirements.
Accurate machining supports correct pulley fit, belt contact, smooth operation and low vibration under the specified installation and operating conditions.
Depending on the pulley design and technical requirements, heat treatment and groove-surface hardening can be applied to improve wear resistance in the belt-contact area.
The required treatment is selected according to the approved product specification and application requirements.
The video below shows representative manufacturing stages from FH Petroleum's mud pump belt pulley production, including pulley-body preparation, machining, surface finishing, painting and packaging.

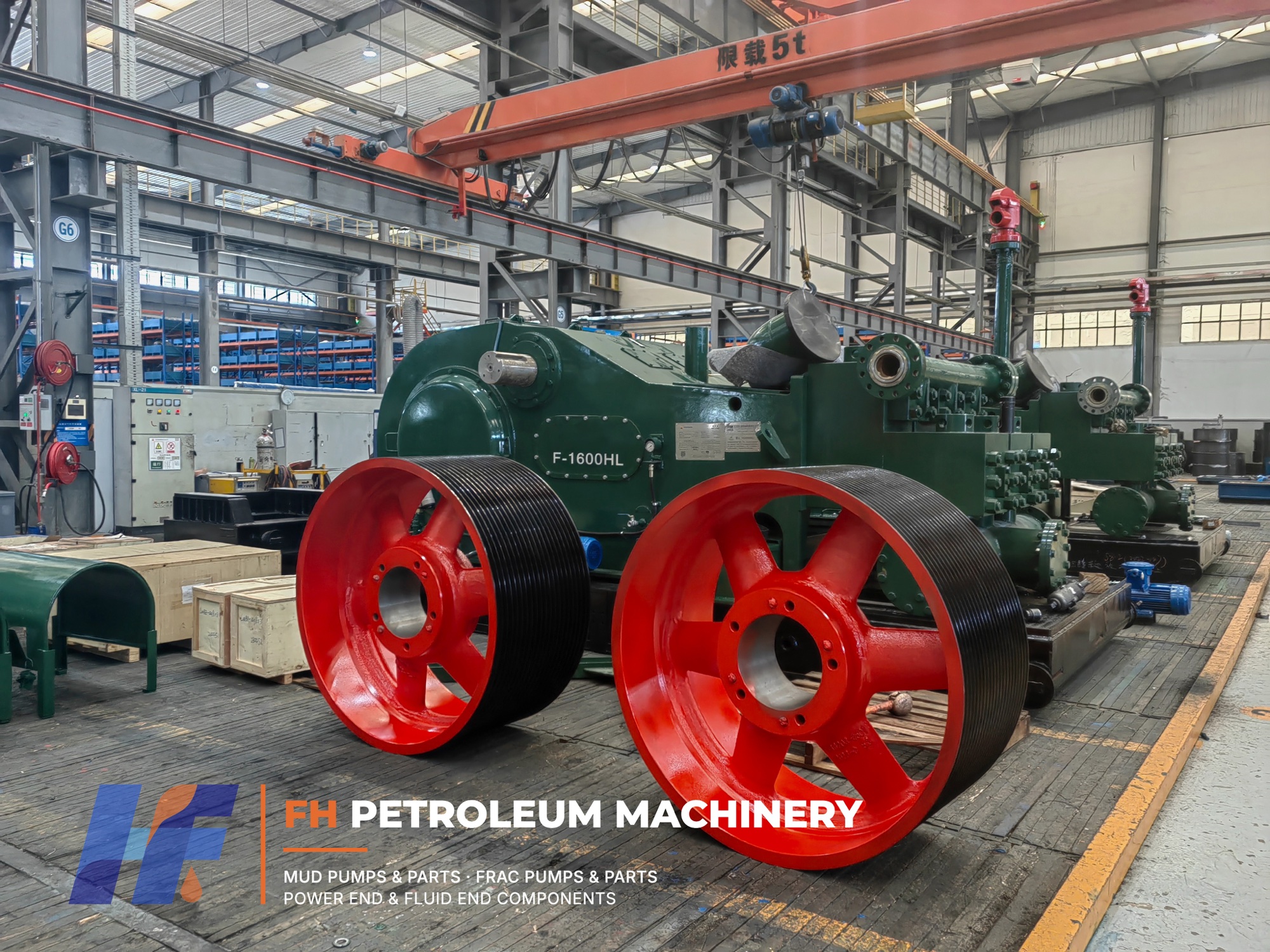

The footage includes different production batches and applications, followed by finished FH-manufactured belt pulleys prepared for assembly on an F-1600HL mud pump.

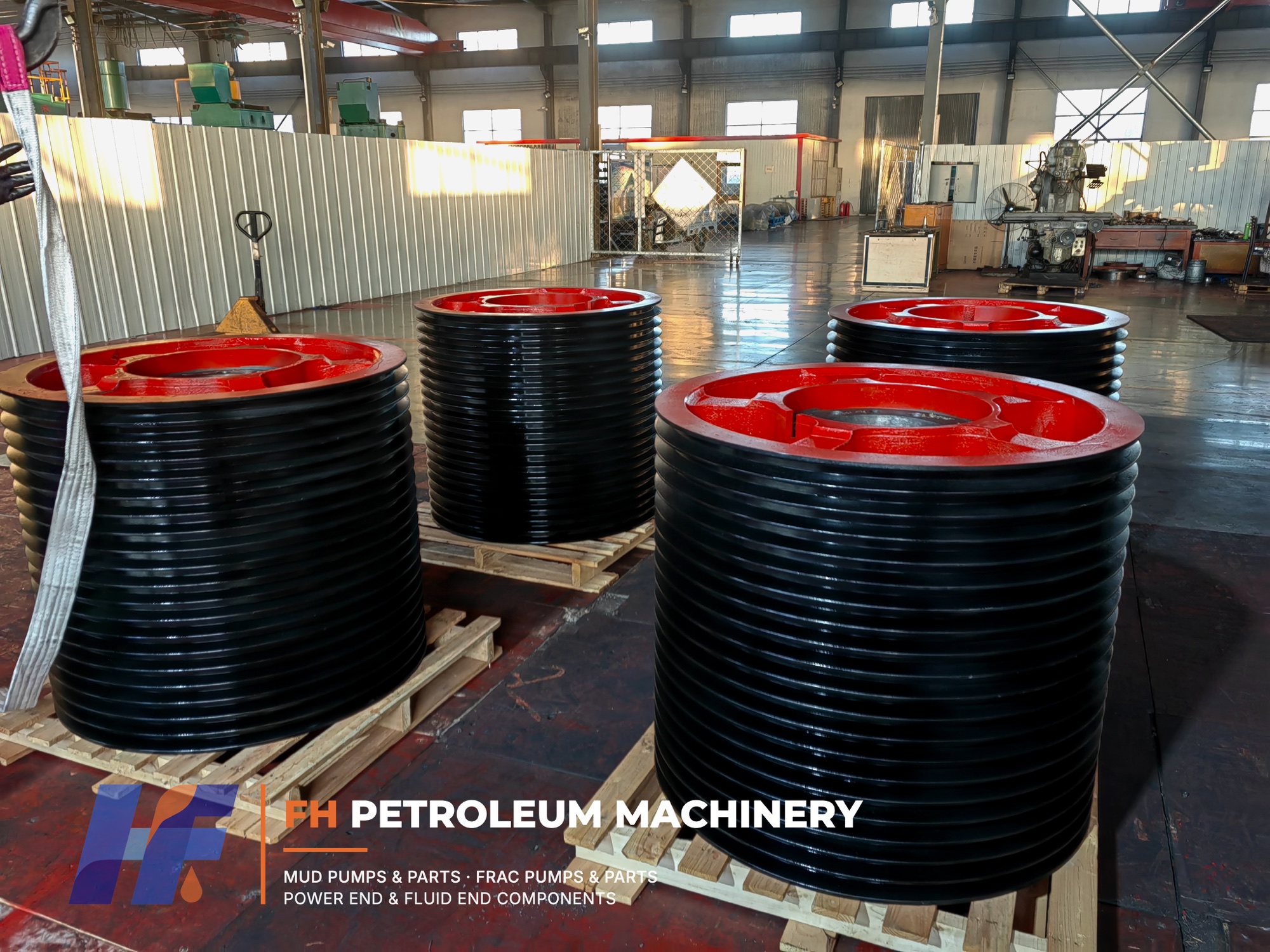

After machining and required production checks, belt pulleys proceed to surface finishing and painting according to the applicable product and customer requirements.

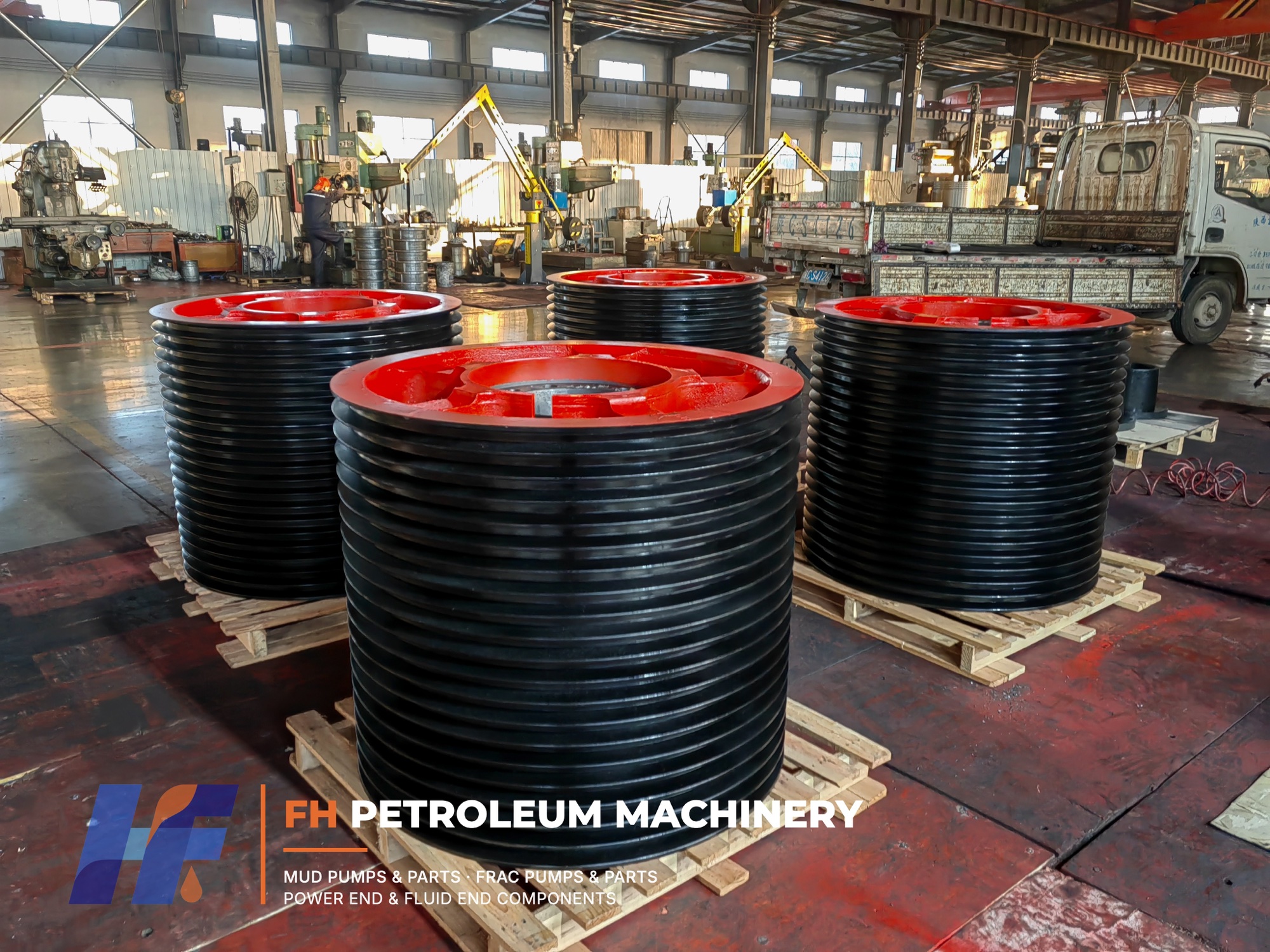

Finished pulleys are then prepared for handling, packaging and subsequent OEM assembly or replacement use.
Mud pump belt pulleys are one of FH Petroleum's established core products.
FH Petroleum has extensive production experience supplying belt pulleys for BOMCO mud pump production. This OEM supply experience has given our manufacturing team practical familiarity with the dimensional control, machining consistency and batch-production discipline expected in mud pump manufacturing.
We support repeat OEM production and recurring aftermarket requirements where manufacturing consistency across multiple orders is important.
FH Petroleum supports both batch production and custom manufacturing of mud pump belt pulleys.
For recurring OEM requirements, production is controlled according to approved drawings and technical specifications to maintain consistency between production batches.
For replacement, special or older equipment, manufacturing can also be evaluated from verified pump models, part numbers, technical drawings, dimensions or approved samples.
Our manufacturing capabilities support:
FH Petroleum supports mud pump manufacturers, distributors, service companies and equipment suppliers with OEM, replacement and private-label belt pulley manufacturing.
Production can be arranged according to customer drawings, part numbers, product identification, packaging and agreed inspection requirements.
Replacement pulleys can be manufactured to match the required OEM dimensions and interface specifications, with final compatibility confirmed by pump model, part number, technical drawing, dimensions or approved sample.
Key Manufacturing Features
Primary material for standard FH mud pump belt pulley production.
Available for special or higher-specification applications.
Critical pulley features are machined according to approved drawings and dimensional requirements.
Applied according to specified product and application requirements.
Established production experience supplying belt pulleys for BOMCO mud pump manufacturing programs.
Supports recurring OEM orders and aftermarket replacement requirements.
Production can be evaluated from part numbers, drawings, dimensions or approved samples.
Customer identification, packaging and agreed production requirements can be supported.
Why Choose FH Petroleum for Mud Pump Belt Pulleys?
Mud pump belt pulleys are one of FH Petroleum's established manufacturing products, supported by recurring OEM production experience.
Established experience supplying belt pulleys for BOMCO mud pump production.
Machining, heat treatment, groove finishing and batch production are controlled according to approved technical requirements.
Requirements can be evaluated from verified pump models, part numbers, drawings, dimensions or approved samples.
FH Petroleum also manufactures crankshafts, bull gears, pinion shafts, connecting rods, crossheads, guide plates, crosshead pins and extension rods.
FH Petroleum manufactures belt pulleys for a wide range of mud pump drive configurations. The models below are representative replacement references. Final compatibility should be confirmed by pump model, part number, technical drawing, dimensions or approved sample.
|
Brand |
Compatible Models |
|
BOMCO |
F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, D-375, D-700 |
|
LANSHI |
3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
|
QINGZHOU |
SL3NB-1300A, QZ-1000, QZ-500, QZ-350, QZ-800, SL3NB-1600 |
|
HONGHUA |
3NB-1600F, HHF800/1000, HHF1300/1600, HHF1600HL, HHF2200HL |
|
DRILLMEC |
7TS450, 7TS600, 9T800, 9T1000, 10T1300, 12T1600 |
|
EMSCO |
F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC-1600, FC-2200 |
|
IDECO |
T-500, T-800, T-1000, T-1300, T-1600 |
|
GARDNER DENVER |
PZ-7, PZ-8, PZ-9, PZ-10, PZ-11 |
|
NATIONAL |
7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-200, 14-P-220, K-700, K-700A, K-500, K-500A |
|
OILWELL |
A-350PT, A-560PT, A-600PT, A-850PT, A-1100P, A-1400PT, A-1700PT |
|
ELLIS WILLIAMS |
W-440-LP, E-447, E-2200, W446, W440 |
|
RUSSIAN Series |
8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310 |
Other pulley sizes, groove configurations and drive arrangements can be evaluated according to customer drawings, dimensions, part numbers or approved samples.
FH Petroleum mud pump belt pulleys are manufactured for power transmission applications in:
For a new or replacement mud pump belt pulley requirement, please provide as much of the following information as available:
Pump model | Part number | Technical drawing | Pulley dimensions | Groove configuration | Required quantity
If the original part number or drawing is unavailable, our team can also evaluate manufacturing requirements from dimensional information or an approved sample.
Contact FH Petroleum for OEM, replacement and custom mud pump belt pulley manufacturing.
