Mud Pump Crosshead Assembly with Segmented Bronze Shoes

A mud pump crosshead assembly works inside the power end, transmitting reciprocating motion while running along controlled sliding surfaces. For replacement and OEM projects, the crosshead body, the bronze sliding surfaces and the inspection method all have to follow the applicable drawing—not a generic catalogue description.

FH Petroleum manufactures mud pump crosshead assemblies from customer drawings, part information and agreed technical requirements. The production footage on this page shows real work from our manufacturing process: turning of bronze sliding surfaces, CNC finish machining of the crosshead body, a completed crosshead fitted with segmented bronze shoes, and portable dimensional inspection of the finished component.

**Send us your pump model, drawing or part number for a manufacturing review.**

## A Power-End Crosshead Built Around the Required Drawing

The crosshead is a working component of the mud pump power end. Its machined body connects the reciprocating drive components and is guided as the pump operates. Because the crosshead runs in relation to other power-end parts, its critical geometry cannot be treated in isolation.

FH approaches each OEM mud pump crosshead as a drawing-based manufacturing project. We review the supplied geometry, material requirements, mating features, bronze-shoe arrangement, inspection scope and documentation needs before confirming production. This allows the manufacturing and inspection plan to follow the specified design rather than relying on unverified assumptions about interchangeability.

Where an existing part is supplied as a reference, it should be accompanied by the available drawing, pump model, part number and acceptance requirements. A sample can support evaluation, but production dimensions and tolerances should be agreed in controlled technical documentation.

## Segmented Bronze Shoes on the Finished Crosshead

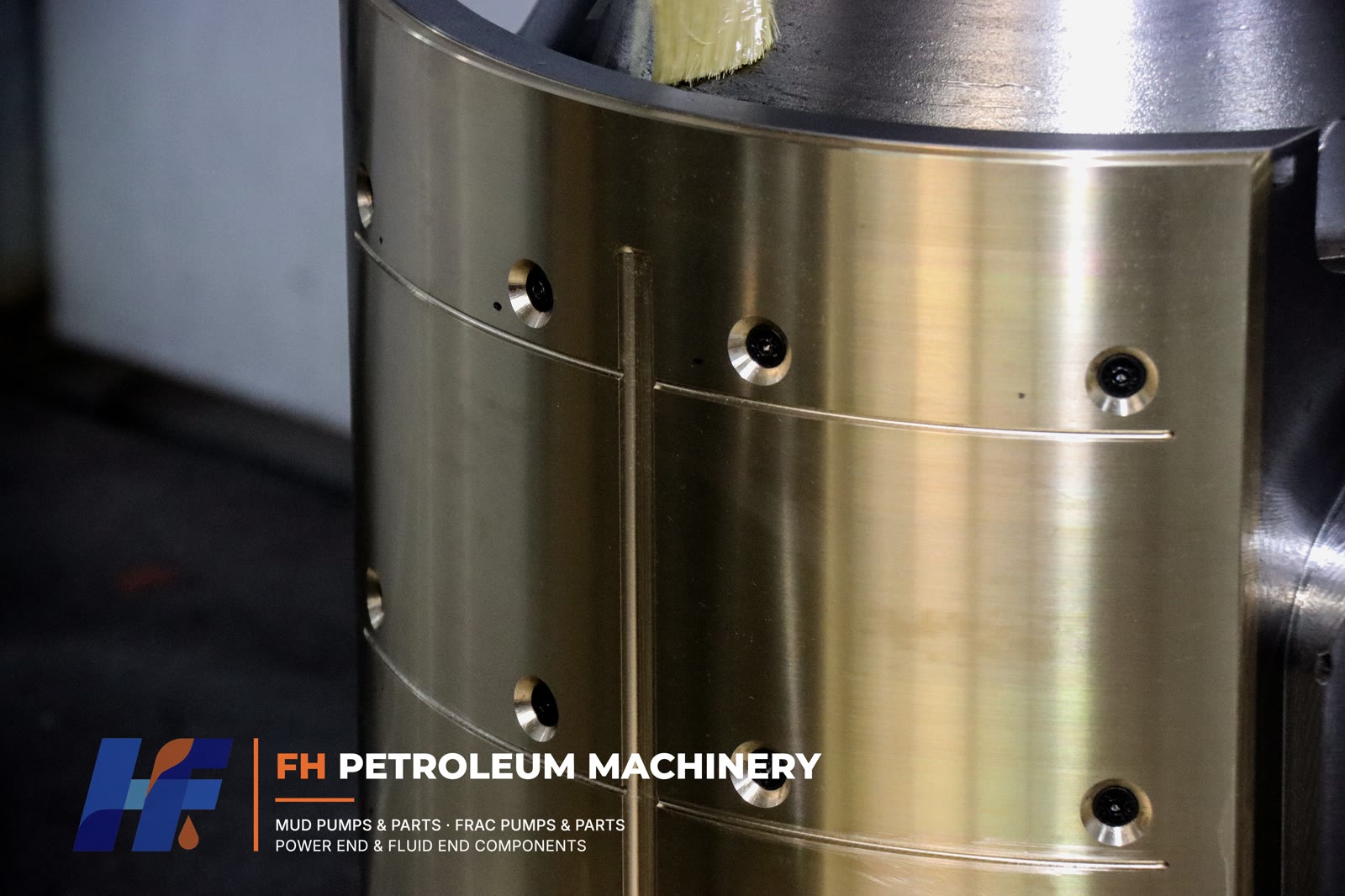

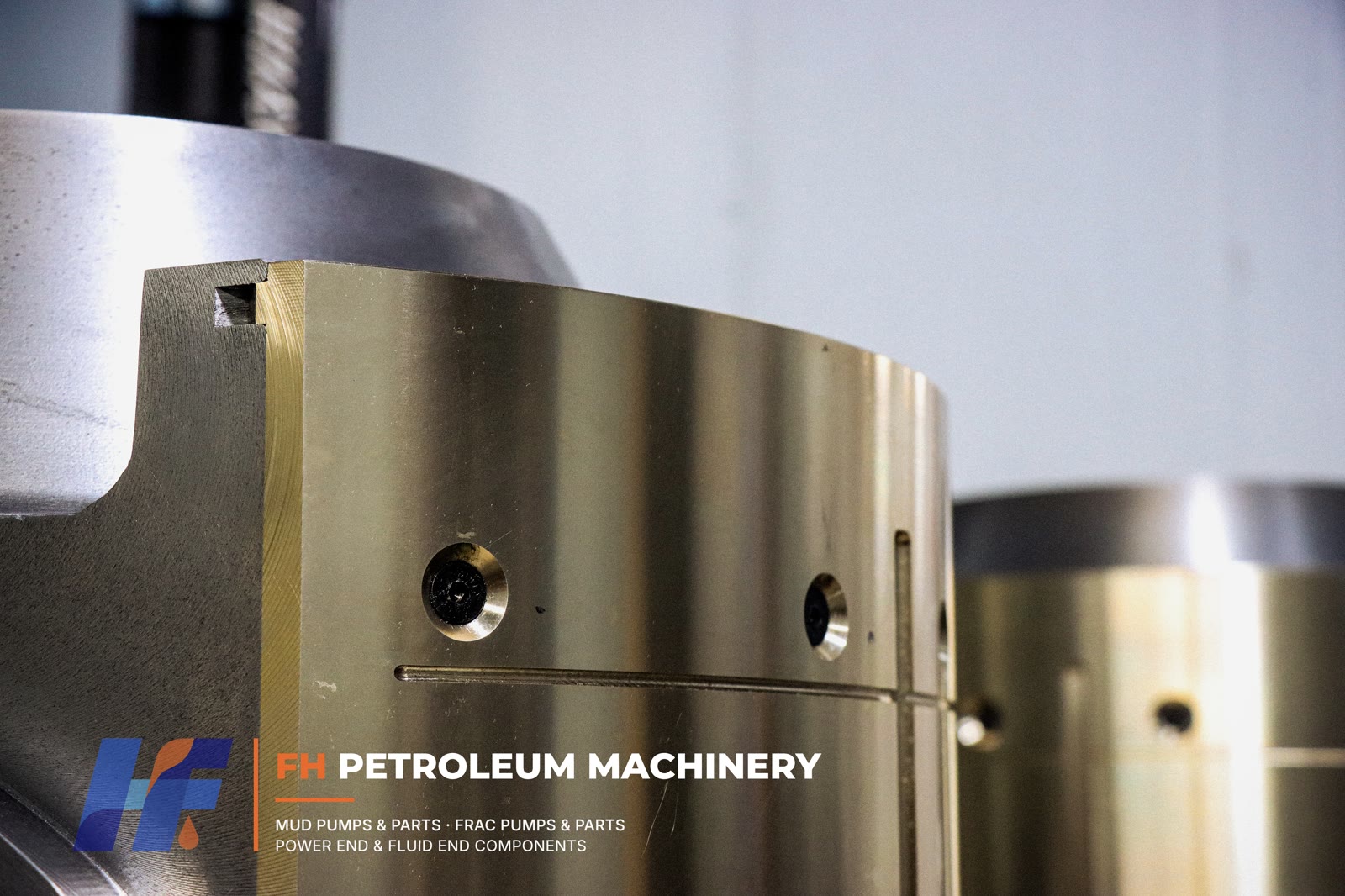

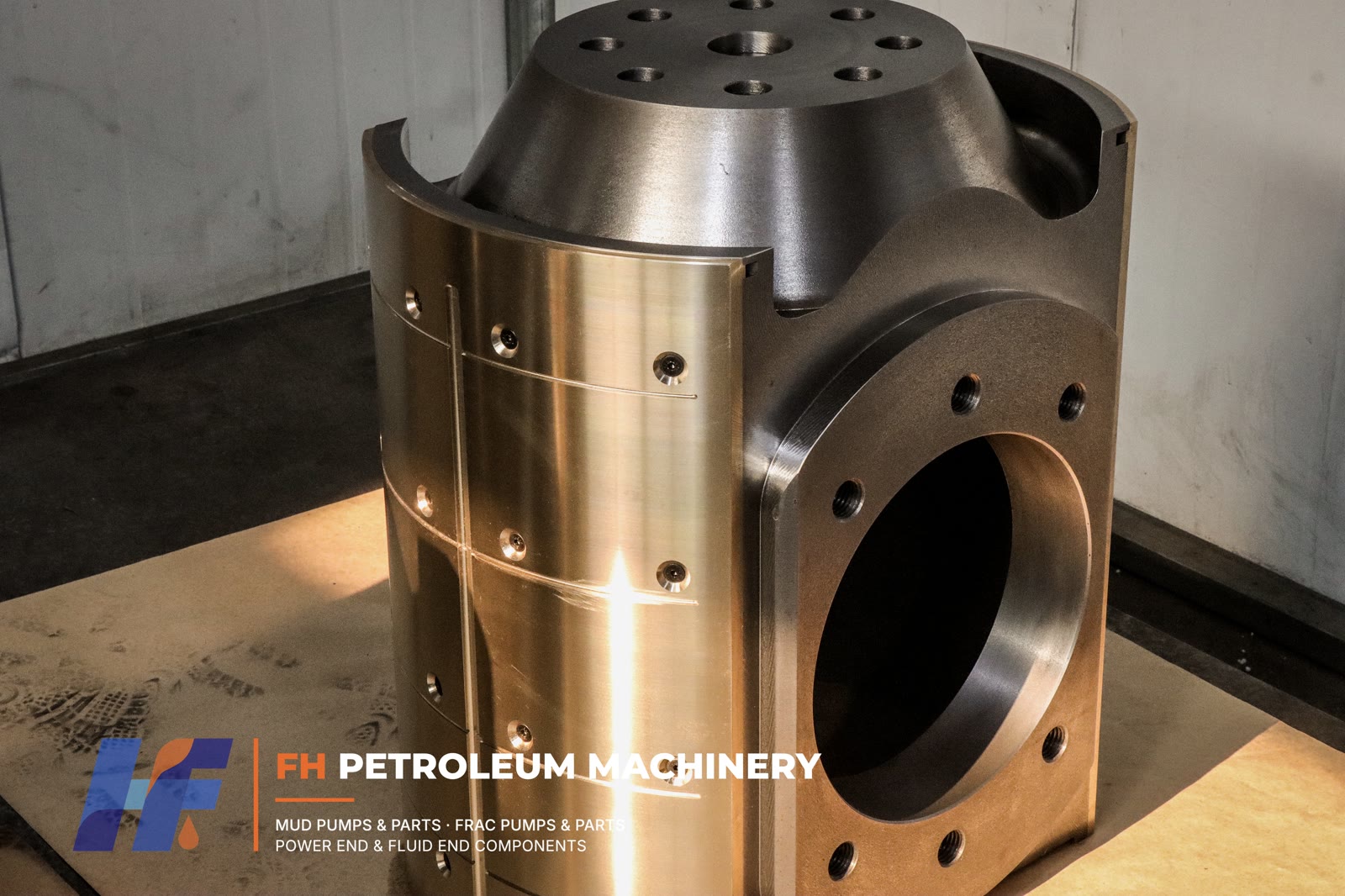

In the assembly shown here, the bronze-colored sliding surface is divided into multiple fitted segments around the crosshead body. The photographs clearly show the segment boundaries and fastening locations. Whether individual segments are replaceable in service depends on the applicable crosshead design and maintenance specification.

The segmented arrangement makes the shoe interfaces, fastening locations and fitted profile important manufacturing details. Each segment has to correspond with the crosshead body and with the geometry defined for the completed assembly. The purpose of the bronze shoes is to provide the specified sliding interface between the crosshead and its guide system; the exact material grade, segment design and acceptance criteria must come from the applicable drawing or customer specification.

FH does not apply one unsupported clearance or material statement to every mud pump design. During quotation, we ask the buyer to identify the pump model and provide the drawing, part number or technical specification so that the bronze-shoe configuration can be reviewed correctly.

## Real Manufacturing Evidence: From Turning to CNC Finish Machining

The media on this page is taken from actual FH production material, not stock imagery. Three short clips show turning operations on the curved bronze-colored sliding surface. The cutting tool, rotating workpiece, chips and developing machined finish are visible at close range.

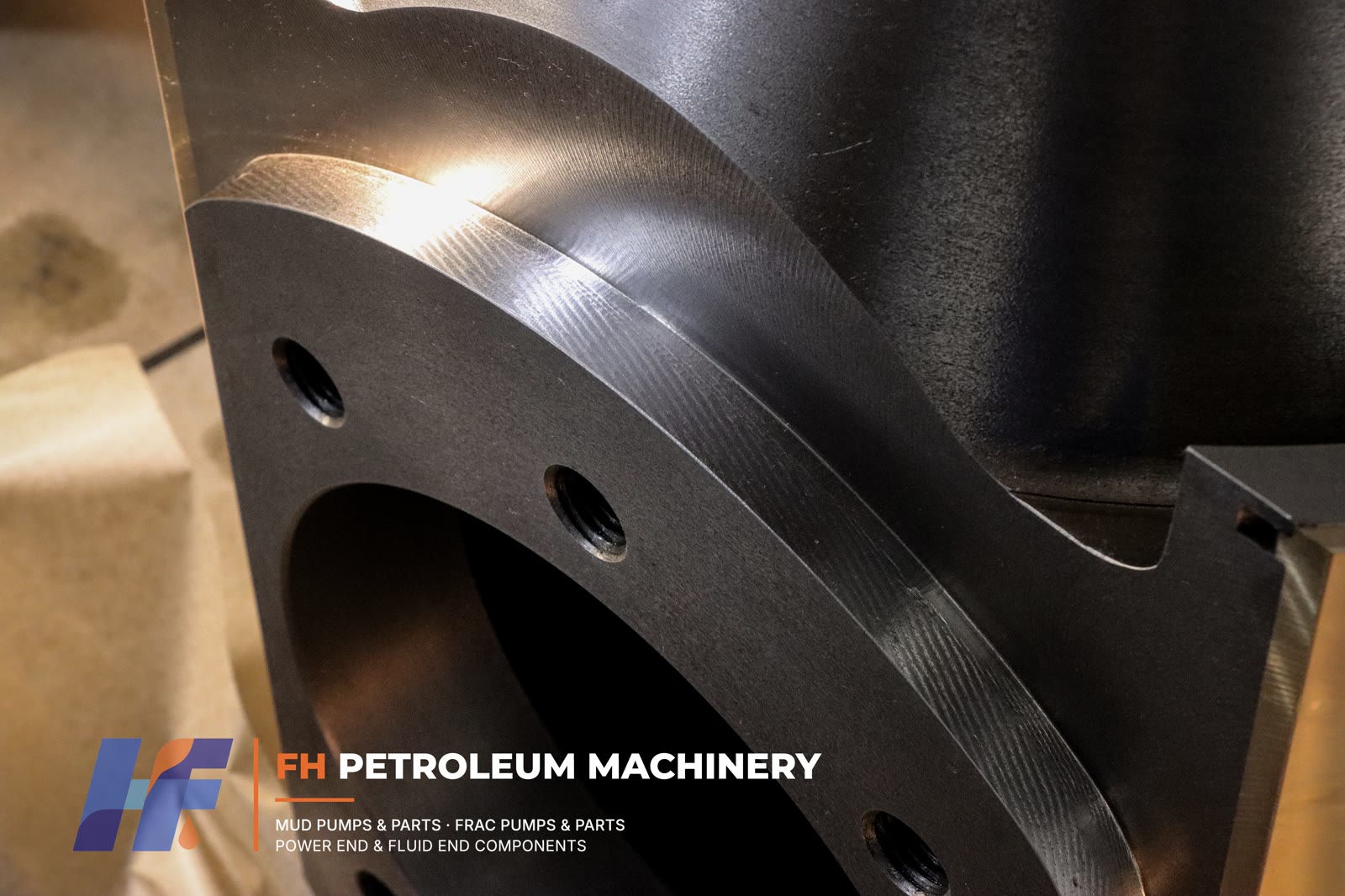

A separate 4K production video shows CNC finish machining of the crosshead body. The footage records the cutter working around the raised profile beside the main opening. This is useful evidence for buyers because it shows the physical component, its machining setup and the surface being produced—not simply a rendered model or a finished part photographed after the fact.

The machining route for a specific order depends on the drawing and supplied condition of the workpiece. Tooling, setup sequence and in-process checks are selected for the geometry that must be produced. FH can review customer requirements for replacement parts, new-build projects and drawing-based OEM manufacture.

## Bronze Shoe Fit and Contact Geometry

Machining an individual bronze segment is only part of the job. The completed crosshead has to be evaluated as an assembly. The inspection footage shows the segmented bronze shoes fitted to the machined body, including the segment boundaries, fastening holes and the relationship between the bronze surface and adjacent crosshead features.

For an OEM project, shoe fit should be controlled by the specified drawing and inspection plan. Relevant characteristics may include the fitted profile, the location of segment interfaces, alignment with reference features and other drawing-defined dimensions. The exact characteristics and tolerances vary by design, so FH confirms them against the customer’s documentation rather than publishing a universal value.

If the project includes an existing assembly, send clear photographs of the wear pattern and mating guide condition together with the drawing or part information. That context helps the technical review, although it does not replace defined acceptance criteria.

## Dimensional Inspection Before Release

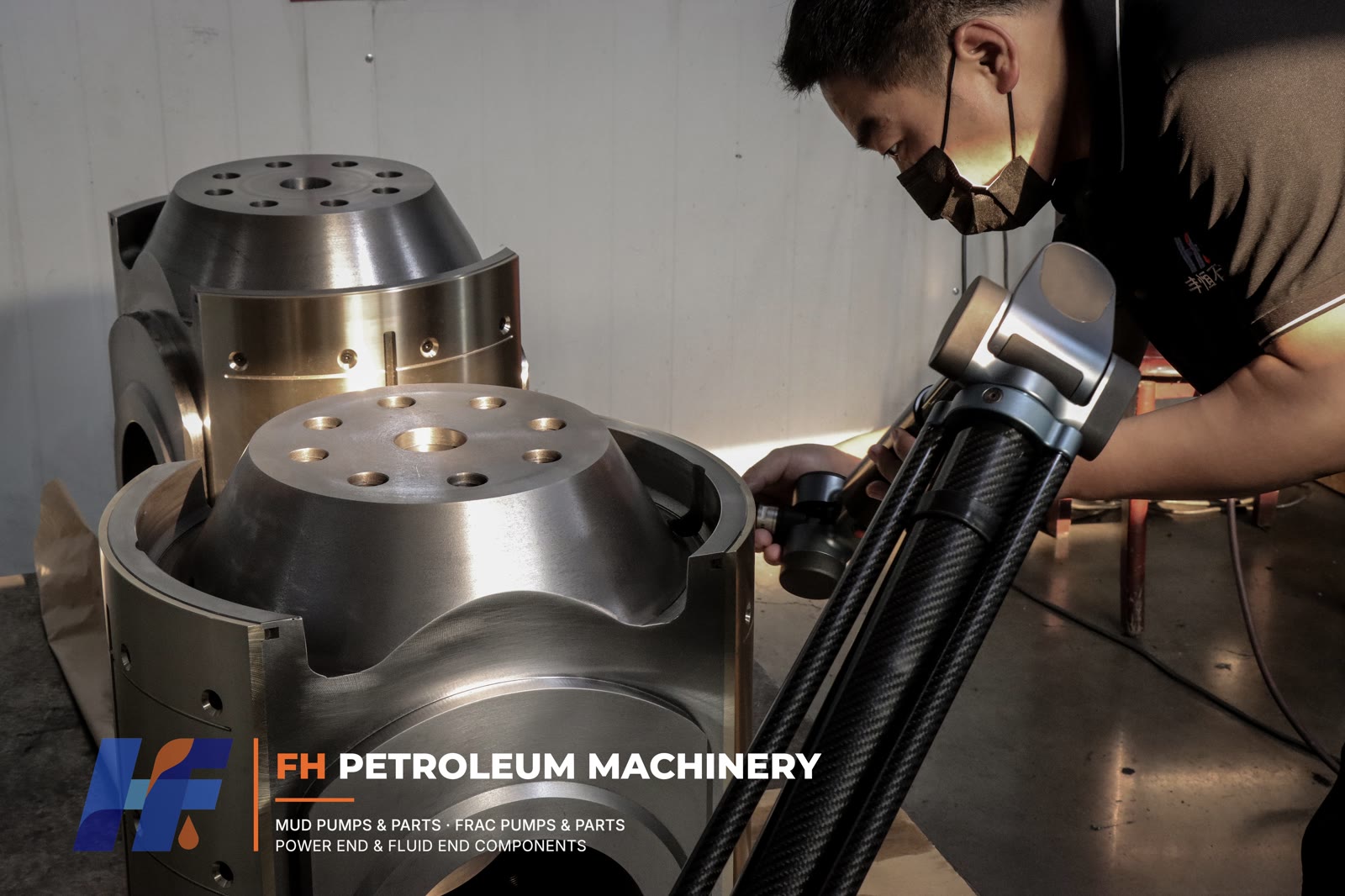

The inspection video shows an operator using a portable articulated coordinate measuring arm fitted with a contact probe to collect measurement points from the completed crosshead and its segmented bronze surfaces. Equipment of this type is also commonly described as a portable CMM. To distinguish it from a fixed bridge-type coordinate measuring machine, this page uses the more precise term portable coordinate measuring arm.

Inspection scope is agreed for the order. Depending on the drawing and purchase requirements, deliverables can be discussed during quotation, including dimensional records, material documentation or other specified quality documents. Only documentation included in the confirmed order should be treated as part of the supply.

This visible inspection step is an important part of the manufacturing story: the page shows not only cutting operations, but also measurement of the fitted component. Buyers can therefore review evidence from production through dimensional verification.

## OEM and Drawing-Based Mud Pump Crosshead Manufacturing

FH Petroleum supports enquiries for replacement and OEM mud pump crosshead manufacturing. To evaluate the project efficiently, please provide:

- mud pump manufacturer and model;
- crosshead drawing, part number or available reference data;
- required material or applicable specification;
- segmented bronze-shoe details, if they are controlled separately;
- order quantity;
- required inspection and quality documents; and
- delivery destination and target schedule.

After reviewing this information, FH can identify open technical questions and prepare a manufacturing quotation. If proprietary information is involved, send only the documentation needed for the initial review and discuss confidentiality requirements with the sales team.

You can also review our [mud pump assemblies and models](https://www.fengliangpetroleum.com/mud-pump-p.html), [mud pump spare parts](https://www.fengliangpetroleum.com/Mud-pump-spare-p.html), and [mud pump bearings and power-end parts](https://www.fengliangpetroleum.com/mud-pump-bearing-p.html).

## Request a Crosshead Manufacturing Review

Need a mud pump crosshead assembly with segmented bronze shoes? Send FH the pump model, drawing or part number, quantity and inspection requirements. Our team will review the available information and respond with the technical questions needed to define the supply.

**[Contact FH Petroleum](https://www.fengliangpetroleum.com/Contact-us.html) to submit your crosshead enquiry.**

### Buyer questions

**Can FH manufacture a mud pump crosshead from a customer drawing?**
FH accepts drawing-based enquiries. Manufacturability, material, tolerances, inspection scope, quantity and documentation requirements are reviewed before an order is confirmed.

**Are segmented bronze shoes supplied as part of the crosshead assembly?**
They can be reviewed as part of the specified assembly when they are included in the customer’s drawing and order requirements. The exact segment design and material must be confirmed for the project.

**What inspection is shown in the video?**
The footage shows portable dimensional inspection with an articulated measuring arm and touch probe on a crosshead fitted with segmented bronze shoes. It should not be described as a conventional fixed-bed CMM unless FH verifies additional equipment or process details.

**What should I send for a quotation?**
Send the pump model, drawing or part number, material/specification, quantity, required inspection documents and delivery destination. Photographs of an existing part can provide useful context.
