Mud Pump Fluid End Cylinder Head and Cylinder Head Plug

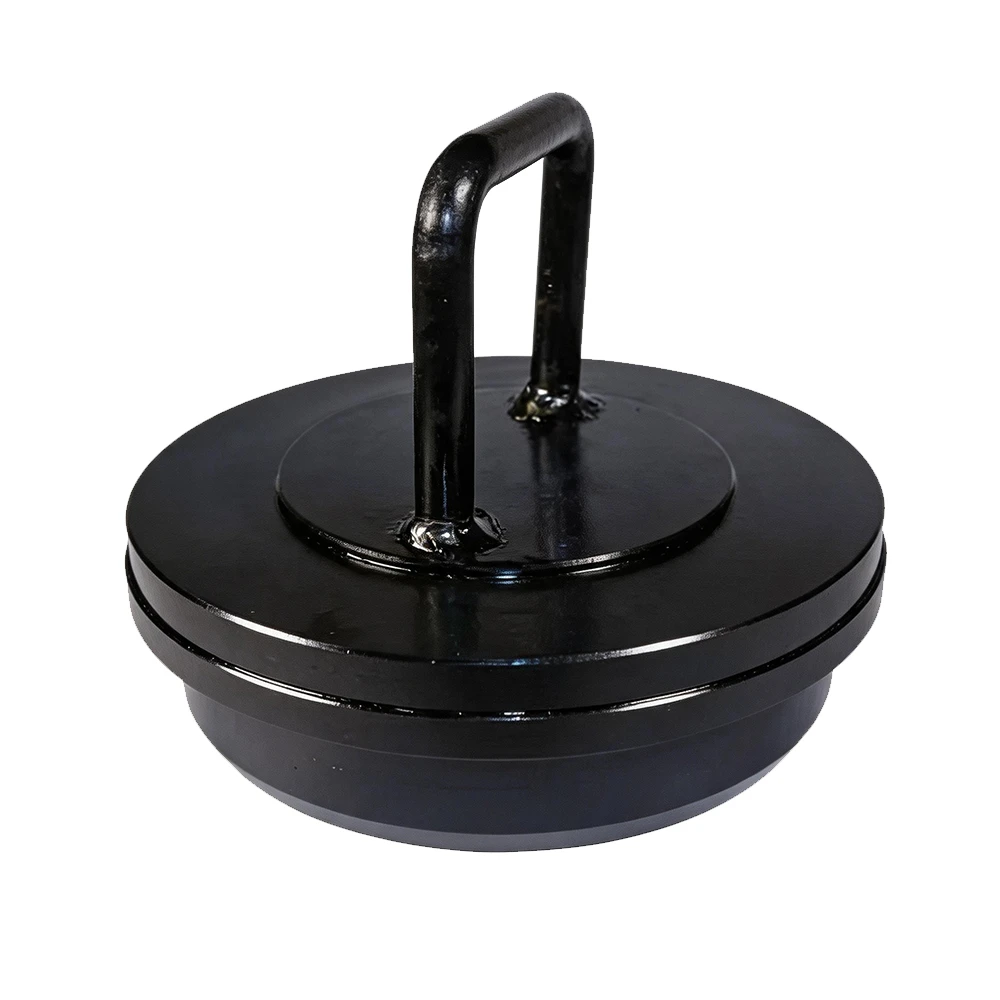

The cylinder head plug is a critical component of the mud pump fluid end for oil drilling. It is installed in the hydraulic cylinder (or fluid end studded assembly) and acts as a fixing element. In the F1300/1600 mud pump, the cylinder head plug presses the positioning plate tightly. The plug consists of a handle and a plug body welded together. The blank of the plug body is made of 45 steel and quenched to HB217–255. The front part is equipped with a cylinder head (valve cover) sealing ring to ensure sealing and pressure retention of the hydraulic cylinder. Adopting a highquality, properly matched plug improves the loading condition, increases bearing capacity, and extends service life.

Inquire Now

Download Catalog

Core Processes & Performance

Heat-treated and internally hardened for high durability.
Available in various materials to meet a wide range of applications.
Standard one-piece and/or two-piece configuration.
Pressure ratings: 5,000 psi (35.1 MPa), 7,500 psi (52.7 MPa), and 10,000 psi (70.3 MPa).
Discharge connections available on each side; suction connections on each side or front center.

Product Features

Premium Material: Forged alloy steel with anticorrosion coating extends service life.
Precision Machining: Tight tolerance (±0.01mm) guarantees perfect sealing and compatibility with major mud pump models (e.g., Gardner Denver, NOV, Schlumberger).
API Compliance: Meets API 7K/8C standards for oilfield equipment safety.
Interchangeable Design: Compatible with Fseries, triplex, and quintuplex mud pumps.
Customization: Available in various sizes, thread types (e.g., API Reg, IF), and surface treatments.

Brand	Type
Russian pump	UNBT950,UNB600,8T650,UNBT 1180L,NBT600,NBT300ect.
BOMCO/Emsco/HongHua	FB1300/1600,F1300/1600,F800/1000,F500 &some duplex pumps.
Gardener denver	PZ 7,PZ8/9,PZ 10/11,KF-FXK,FY-FXD,FD-FXX,FG-FXG,FQ-FXQ,FF-FXP,FG-GXG.
National	7P50,8P80,9P100,10P130,12P160,14P220,JWS165,JWS340/400,C250/350,K700,K500,K380.
Oilwell	A560/600PT,A850/1100PT,A1400/1700PT,214P,810P.
ldeco	T500,T800/1000,T1300/1600.
Wirth	TPK1000,TPK1600,TPK2000/2200.
Weatherford	MP-5,MP-8,MP-10,MP-13,MP-16

Applications

Offshore Drilling Mud Pump Replacement Parts

Corrosion-resistant power end and fluid end parts built for harsh marine conditions, fully interchangeable with mainstream F-series triplex mud pumps and designed for extended runtime between maintenance.
Deep Well Onshore Drilling Pump Components

Heavy-duty pump parts rated for high-pressure deep drilling operations, including forged crankshafts, crossheads and fluid end modules, delivering consistent performance under continuous heavy load per API standards.
Workover & Land Drilling Aftermarket Pump Parts

Cost-effective OEM-compatible spare parts for routine onshore drilling and workover projects, covering common wear parts of power end, fluid end and structural assemblies to cut maintenance costs.

Need Mud Pump Parts Or Equipment?

Send us your drawing, model number or requirements.Our engineers will reply within 24 hours.
