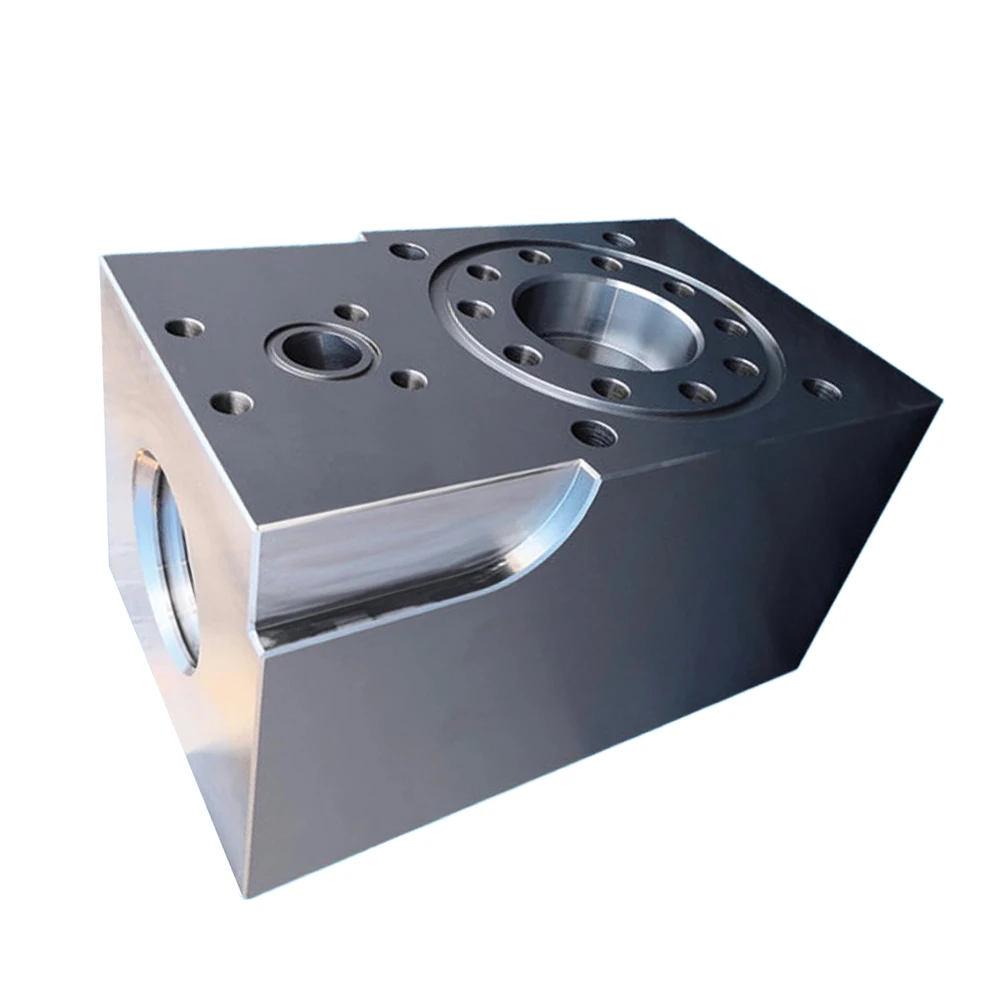

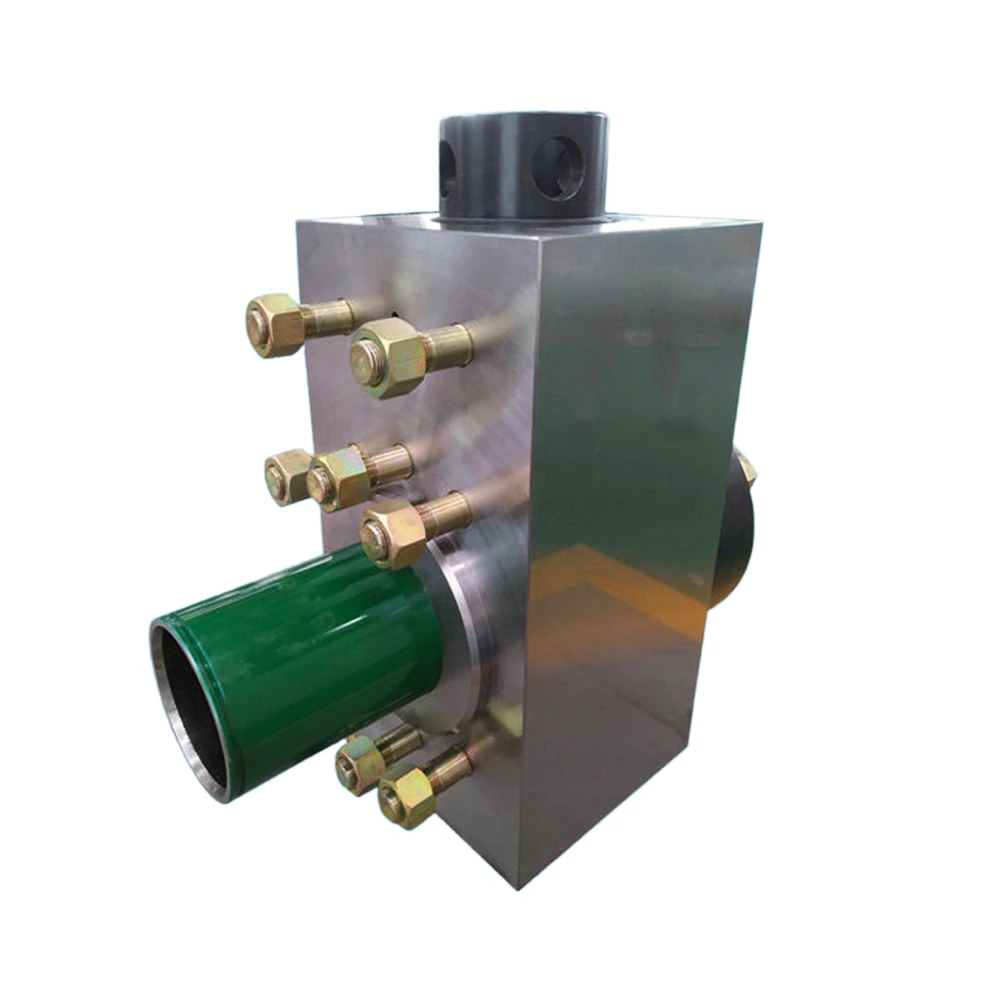

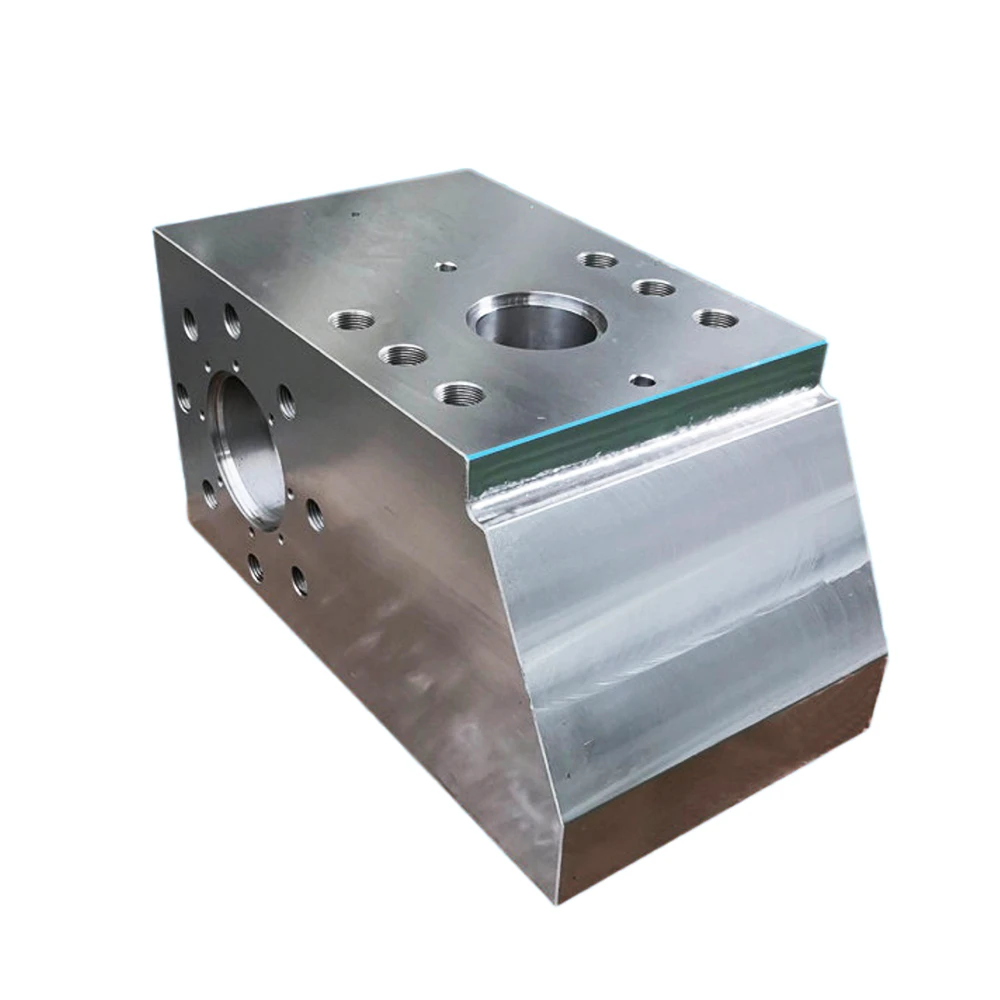

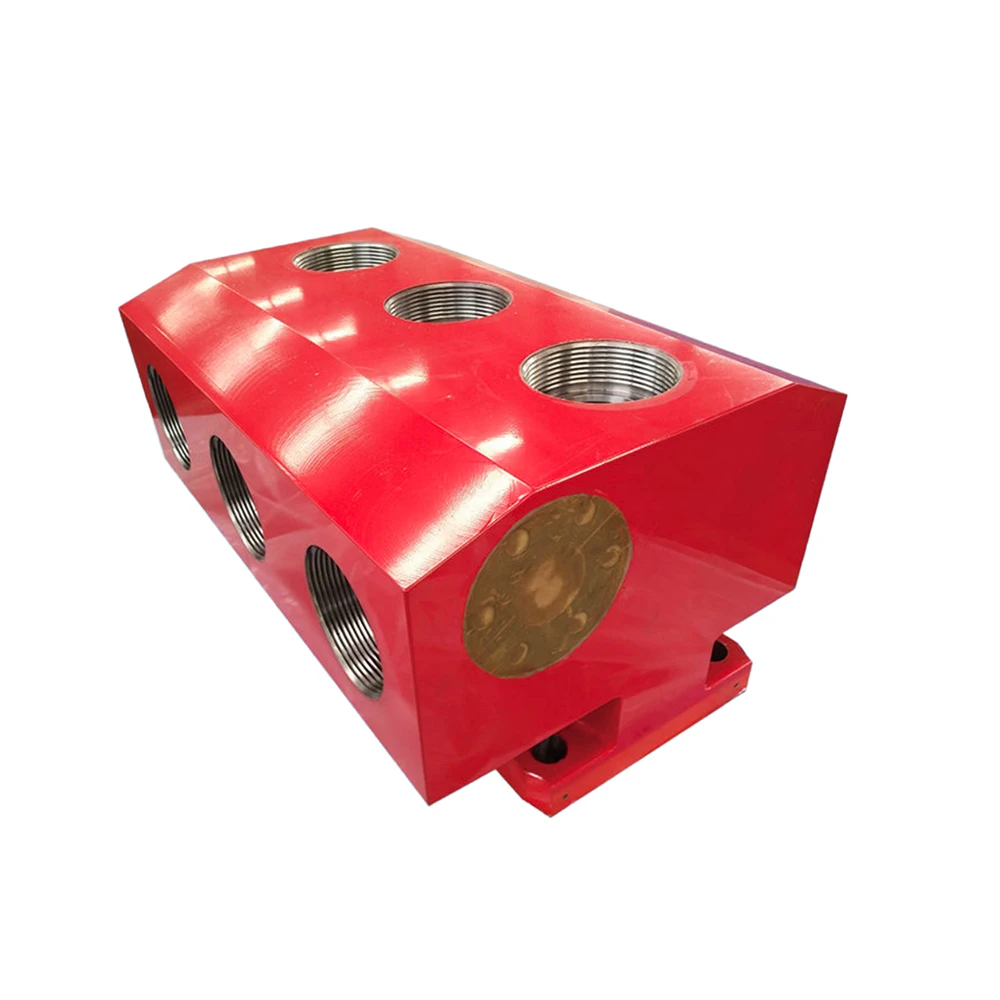

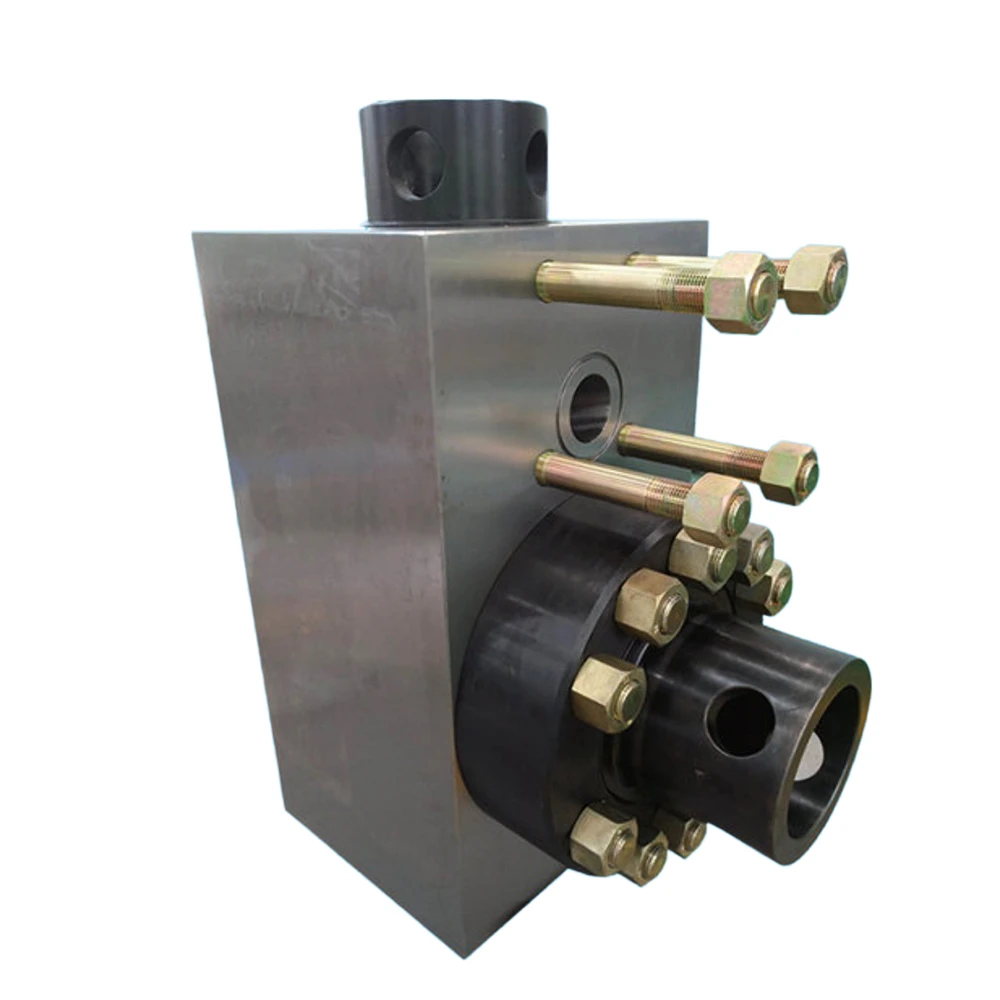

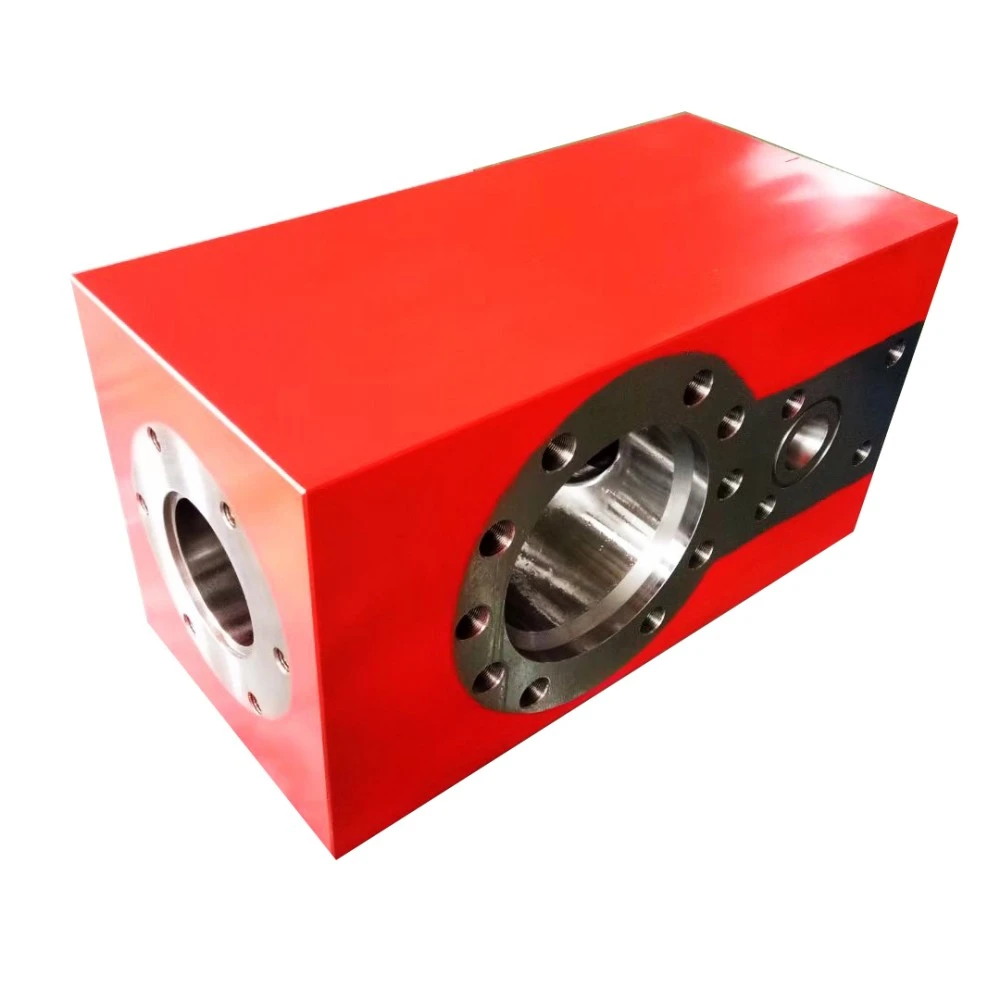

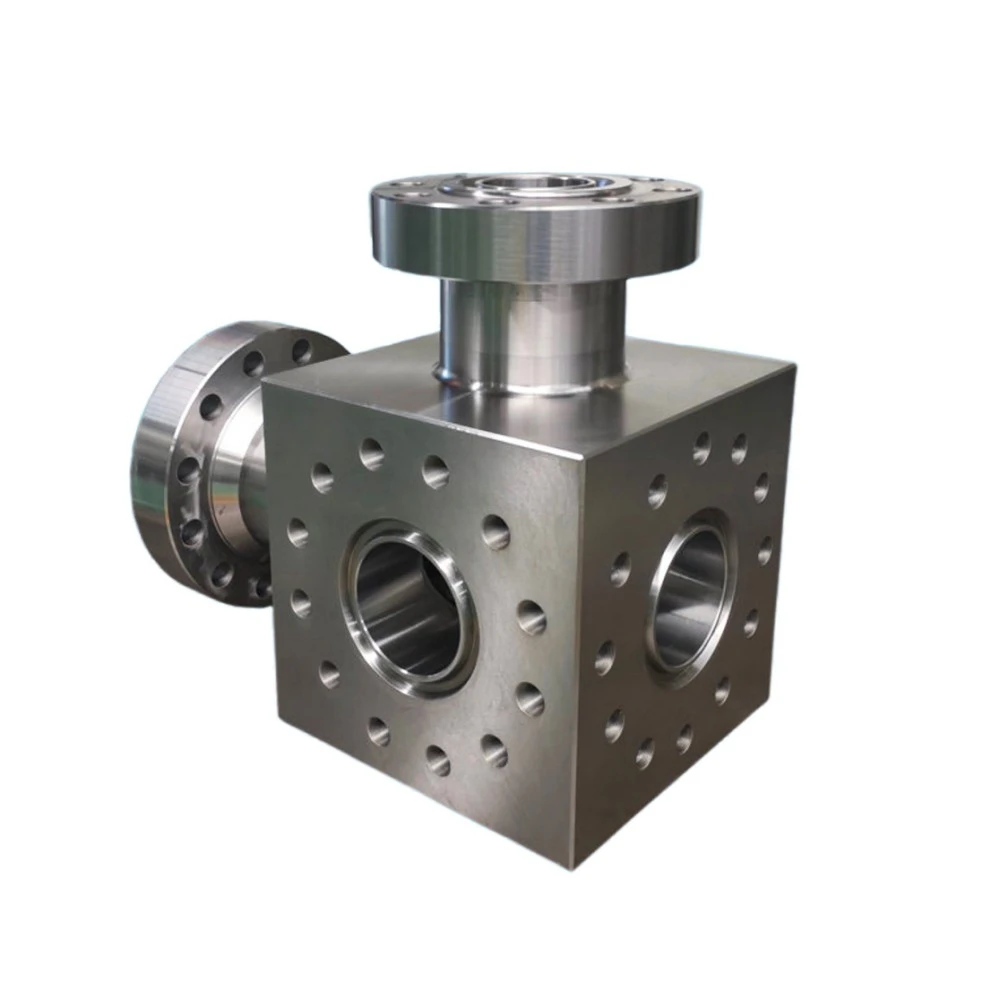

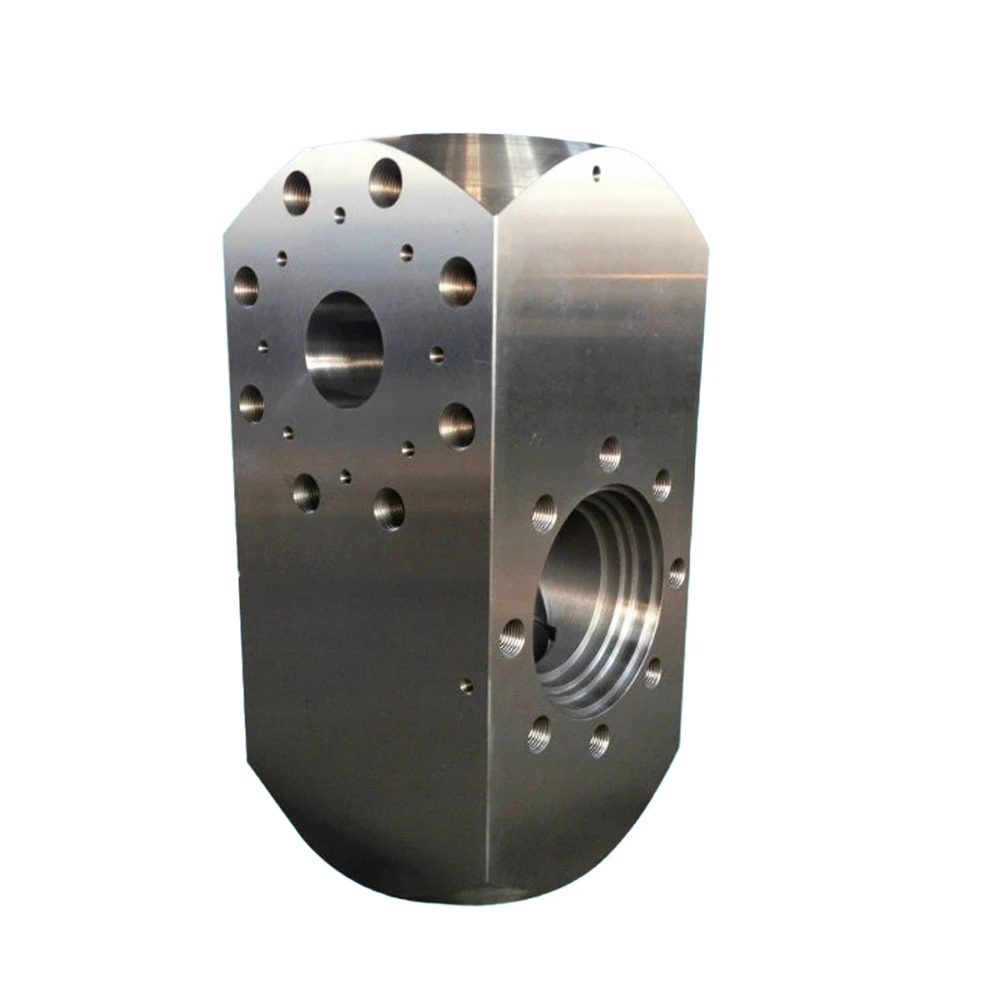

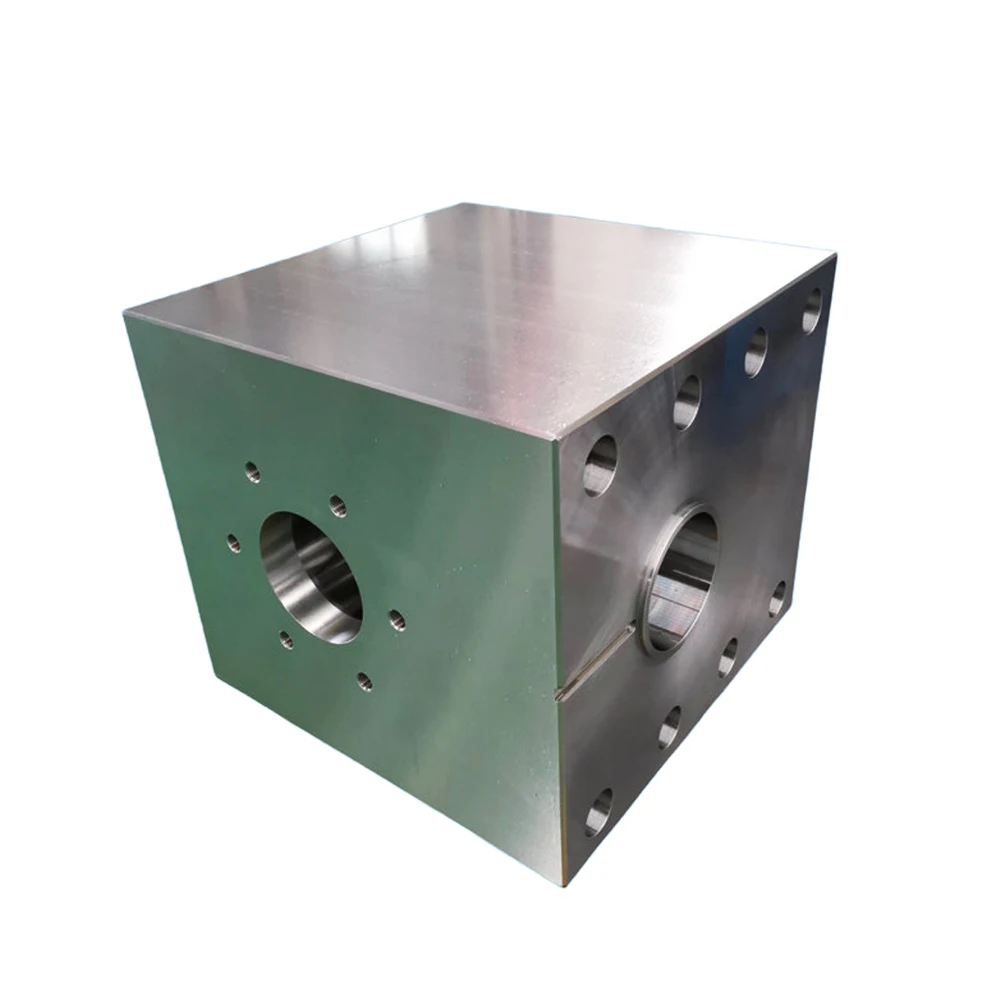

Mud Pump Hydraulic Cylinder (Valve Box)

Manufactured in strict accordance with API Spec 7K international drilling equipment standards, our hydraulic cylinders are precisely compatible with mainstream mud pump models including F series and 3NB series with outstanding versatility. The product is integrally forged from premium materials such as 45# carbon steel and 42CrMo high-strength alloy steel, which fundamentally eliminates internal material defects like porosity and looseness. Combined with multi-stage heat treatment and multiple precision machining procedures, the cylinder features dense structure and excellent resistance to impact and fatigue.

The three hydraulic cylinders equipped on each pump are fully interchangeable, greatly simplifying on-site maintenance and spare parts management. Critical positions including the cone sawtooth thread of the cylinder head, all threaded holes and inner cavity curved joint surfaces are elaborately machined to guarantee assembly accuracy and sealing stability. The inner wall can be reinforced via quenching, nitriding, hard alloy surfacing or ceramic coating processes, followed by precision honing. The finished product achieves a surface roughness ≤Ra0.2μm with maximum hardness up to HRC65, effectively resisting abrasion and erosion caused by sand-containing mud for long-term service in various harsh high-pressure drilling environments.

Compliant with International Standards & Wide Compatibility

Produced fully in line with API Spec 7K standards, perfectly matching mainstream mud pumps such as F series and 3NB series, and serving as a reliable OEM replacement for original equipment parts.

Integral Forging & Superior Material Performance

Adopting one-piece integral forging technology and premium raw materials including 45# carbon steel and 42CrMo alloy steel, the cylinder avoids common casting defects, featuring uniform compact structure and outstanding resistance to impact, fatigue, cracking and deformation.

Multi-layer Reinforcement & Ultra-high Wear and Corrosion Resistance

The inner wall can be hardened through nitriding, quenching, alloy surfacing or ceramic coating, paired with precision honing for ultra-smooth surface finish. With hardness reaching HRC65, it withstands long-term scouring of high-pressure sand mud and greatly extends service life.

Full Precision Machining for Stable Sealing & Assembly

Key areas such as cylinder head cone sawtooth threads, screw holes and inner cavity mating surfaces are precisely processed to realize tight fitting, preventing mud leakage and pressure drop and ensuring stable operation under high-pressure working conditions.

Full Interchangeability for Easy Maintenance

All three cylinders on a single pump are completely interchangeable without exclusive model matching, cutting spare parts inventory costs and simplifying disassembly, repair and replacement to reduce pump downtime losses.

High Pressure Resistance for Severe Working Conditions Treated

with multi-stage heat strengthening, the cylinder boasts remarkable pressure resistance, suitable for harsh oilfield operations including high-pressure drilling, deep well drilling and high-sand-content mud service with stable and reliable performance.
