Power End Parts

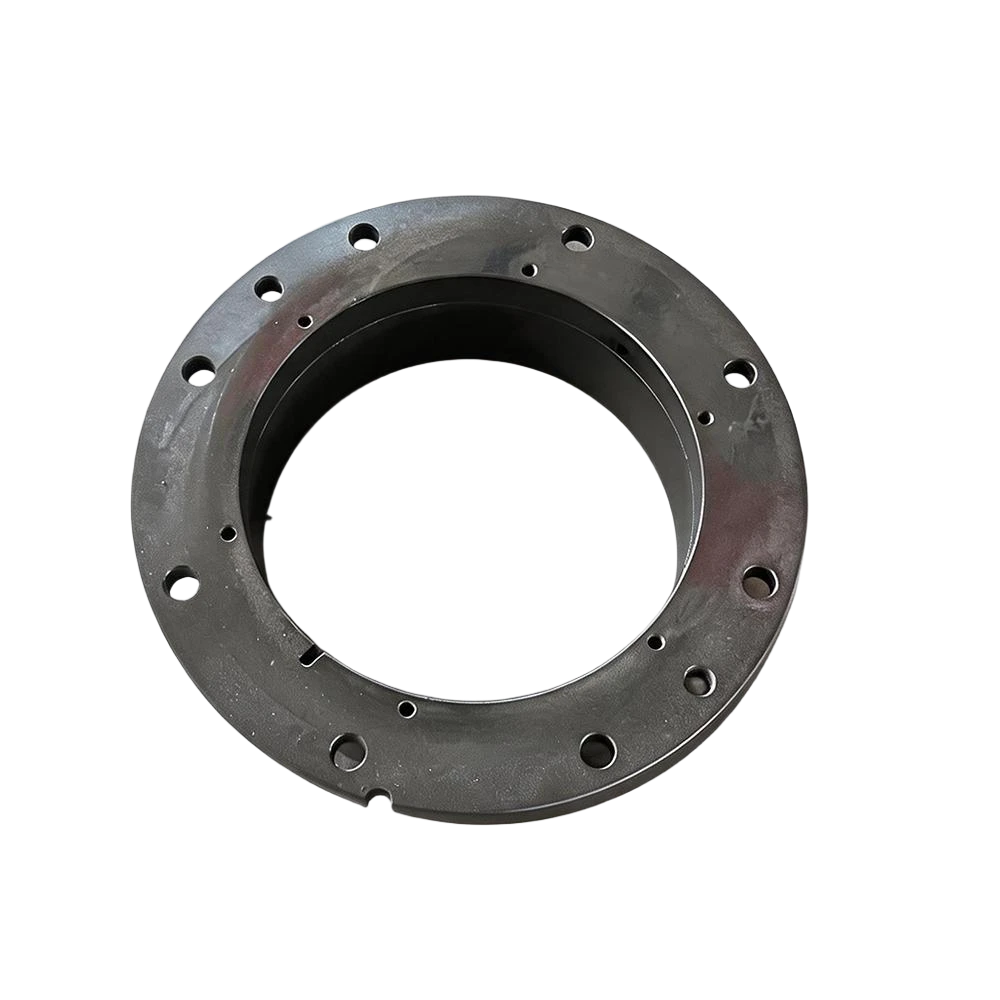

The flanged bearing sleeve is a core support component for the power end of mud pumps. As a transitional bushing between the bearing and pump housing, it provides stable support for the crankshaft and crosshead assembly, withstands alternating loads, and protects the pump housing and bearing seat from direct wear. It is a critical accessory for ensuring long-term stable operation of the mud pump.
Structure & Features
Integral Flanged Design: The heavy-duty cylindrical body and mounting flange are forged as one piece, offering excellent rigidity and impact resistance for the high-pressure alternating loads of heavy-duty mud pumps.
Bolt Hole Pattern: Evenly distributed bolt holes on the outer flange allow for secure mounting to the pump housing or bearing seat, preventing movement during operation.
Precision Bore Machining: The inner surface is precision turned and honed with tight dimensional tolerances, ensuring accurate bearing alignment and minimizing vibration and wear.
Wear & Corrosion Resistant Material: Forged from high-strength alloy steel (e.g., 35CrMo/42CrMo) with a black oxide or anti-corrosion finish, providing excellent fatigue and impact resistance for a long service life.
Optional Lubrication Features: Some models include internal oil grooves or holes for compatibility with forced lubrication systems, helping to reduce bearing operating temperature and extend bearing life.
Compatibility & Advantages
Compatible with power ends of major oilfield mud pumps, including F-1300, F-1600, 14-P-220, and 3NB series.
Fully interchangeable with original equipment parts, requiring no modification for direct replacement.
As a wear part, it is quick and easy to replace, significantly reducing maintenance costs and downtime caused by pump housing wear.
Technical Specifications
|
Brand |
Compatible Models |
|
BOMCO |
F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, D-375, D-700 |
|
LANSHI |
3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
|
QINGZHOU |
SL3NB-1300A, QZ-1000, QZ-500, QZ-350, QZ-800, SL3NB-1600 |
|
HONGHUA |
3NB-1600F, HHF800/1000, HHF1300/1600, HHF1600HL, HHF2200HL |
|
DRILLMEC |
7TS450, 7TS600, 9T800, 9T1000, 10T1300, 12T1600 |
|
EMSCO |
F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC-1600, FC-2200 |
|
IDECO |
T-500, T-800, T-1000, T-1300, T-1600 |
|
GARDNER DENVER |
PZ-7, PZ-8, PZ-9, PZ-10, PZ-11 |
|
NATIONAL |
7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-200, 14-P-220, K-700, K-700A, K-500, K-500A |
|
OILWELL |
A-350PT, A-560PT, A-600PT, A-850PT, A-1100P, A-1400PT, A-1700PT |
|
ELLIS WILLIAMS |
W-440-LP, E-447, E-2200, W446, W440 |
|
RUSSIAN Series |
8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310 |
Applications
Offshore Drilling Mud Pump Replacement Parts
Corrosion-resistant power end and fluid end parts built for harsh marine conditions, fully interchangeable with mainstream F-series triplex mud pumps and designed for extended runtime between maintenance.
Deep Well Onshore Drilling Pump Components
Heavy-duty pump parts rated for high-pressure deep drilling operations, including forged crankshafts, crossheads and fluid end modules, delivering consistent performance under continuous heavy load per API standards.
Workover & Land Drilling Aftermarket Pump Parts
Cost-effective OEM-compatible spare parts for routine onshore drilling and workover projects, covering common wear parts of power end, fluid end and structural assemblies to cut maintenance costs.
