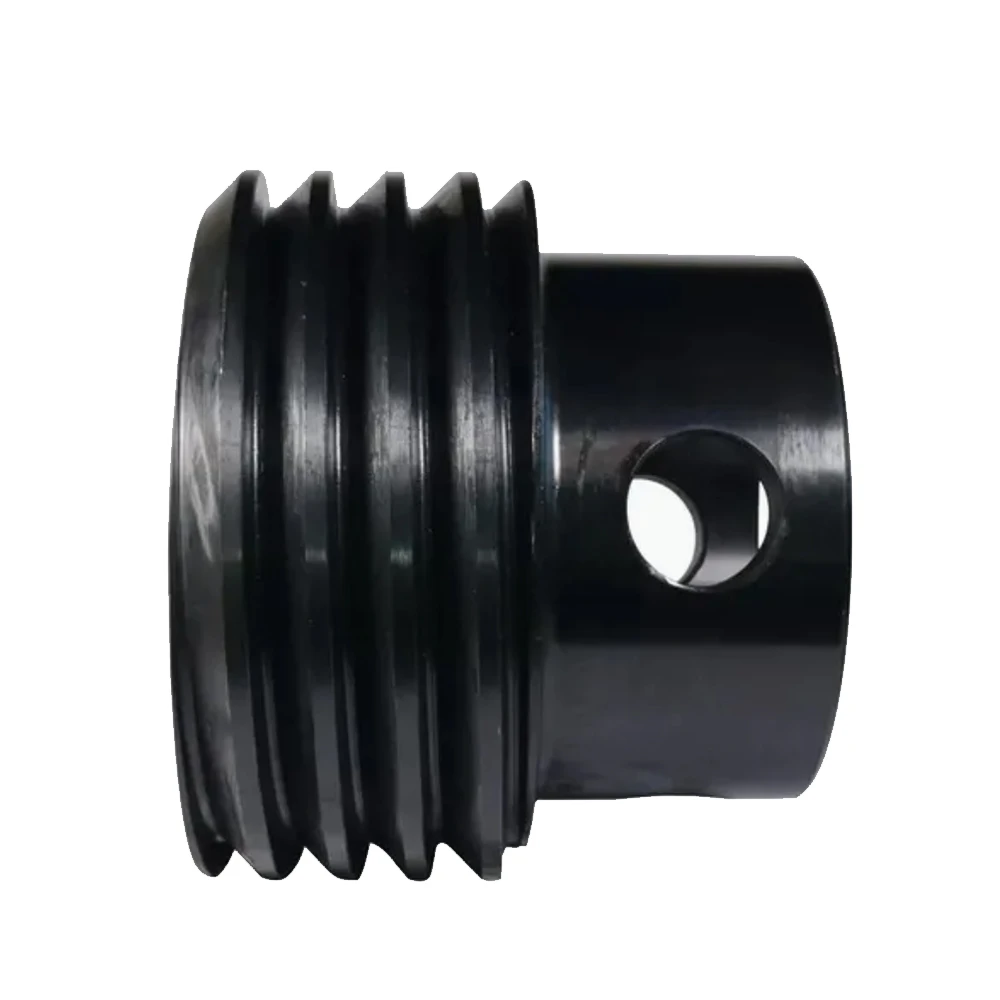

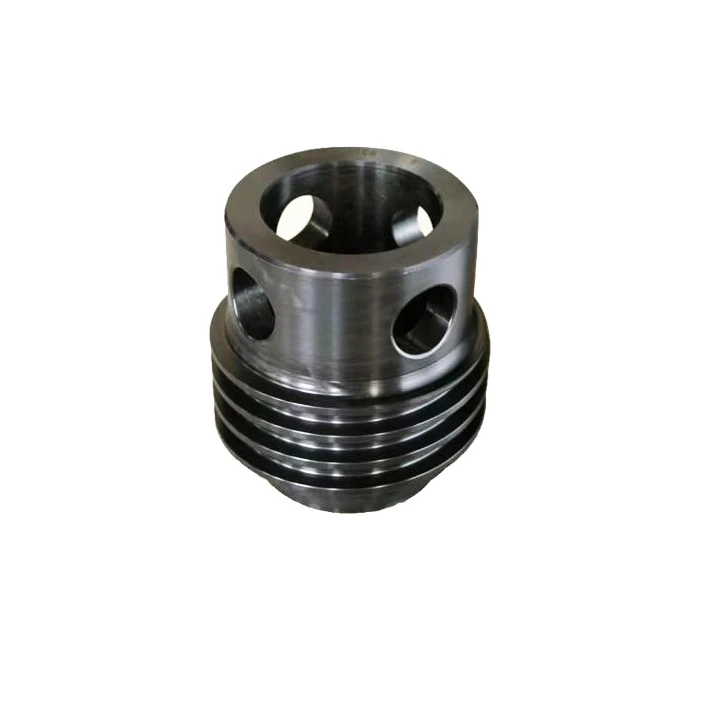

Oilfield API Standard Drilling Mud Pump Spare Parts Cylinder Head Cover Valve Cover

The mud pump valve cover is available in domed and flat plate styles, installed on the top of the hydraulic cylinder to seal the valve chamber opening, fix and center the discharge valve effectively. It is tightly fastened by multiple bolts and equipped with professional sealing parts to prevent liquid leakage, safely containing high pressure inside the valve box. This structural design allows convenient routine inspection and quick replacement of valves, springs and valve seats, greatly reducing overall maintenance downtime compared with traditional integrated valve boxes. The valve cover blank is forged from 35CrMo alloy steel and thermally refined to achieve a hardness of 241–285 HB. Metric and inch thread versions are available, with only thread hole specifications different while all other dimensions remain fully universal. All mud pump fluid end components are manufactured from high-quality AISI 8620 or AISI 4135 alloy steel, processed with professional heat treatment and internal hardening to enhance durability. Every part undergoes precision machining and strict non-destructive testing (NDT) to ensure long wear-resistant service performance. The valve cover is designed for 5000 psi, 7500 psi and 10000 psi pressure ratings to adapt to different working demands. Custom forgings of 35CrMo and 40CrMoMn alloy are also offered, adopting secondary smelting and deoxidation treatment for high purity and superior mechanical properties, manufactured in accordance with JB/TQ252-81 standards. We provide a complete line of mud pump fluid end and power end spare parts, including cylinder head, valve lock cover, threaded rings, plugs, upper and lower valve guides, liner locks, wear plates and other related accessories.

Our mud pump parts feature strong interchangeability and can perfectly match and replace components for 3NB, F-series, PZ-series, HBRS, BOMCO, EMSCO, NOV P-series, IDECO and other internationally renowned mud pump brands.

1. Superior Structural Durability & Fatigue Resistance Made of high-strength forged alloy steel with professional thermal refining and internal hardening treatment. The valve cover effectively resists cyclic pressure impact, sealing surface wear and thread abrasion, maintaining stable performance under long-term high-pressure working conditions.

2. Multi-Pressure Grade Compatibility Designed for 5000 psi, 7500 psi and 10000 psi pressure levels, covering standard and high-pressure drilling scenarios for both onshore and offshore drilling operations.

3. Efficient Maintenance Design Domed and flat plate modular structure enables fast disassembly, convenient daily inspection and quick replacement of internal valve components. It greatly saves maintenance time and reduces equipment downtime compared with integrated valve box structures.

4. Reliable Sealing & Strict Quality Control Manufactured with precision machining and verified by non-destructive testing (NDT). Strict dimensional tolerance control and matched sealing accessories ensure zero leakage and safe, stable high-pressure operation.

5. Strong Universal Interchangeability Available in metric and inch thread specifications. Fully interchangeable with original parts for mainstream mud pump models including 3NB, F series, PZ series, BOMCO, EMSCO, NOV and IDECO without any modification.

6. High-Purity Custom Material Options Secondary smelted and deoxidized 35CrMo and 40CrMoMn alloy materials are optional, providing higher purity, better toughness and stronger mechanical performance for heavy-duty and high-abrasion working environments.
