Fluid End Parts

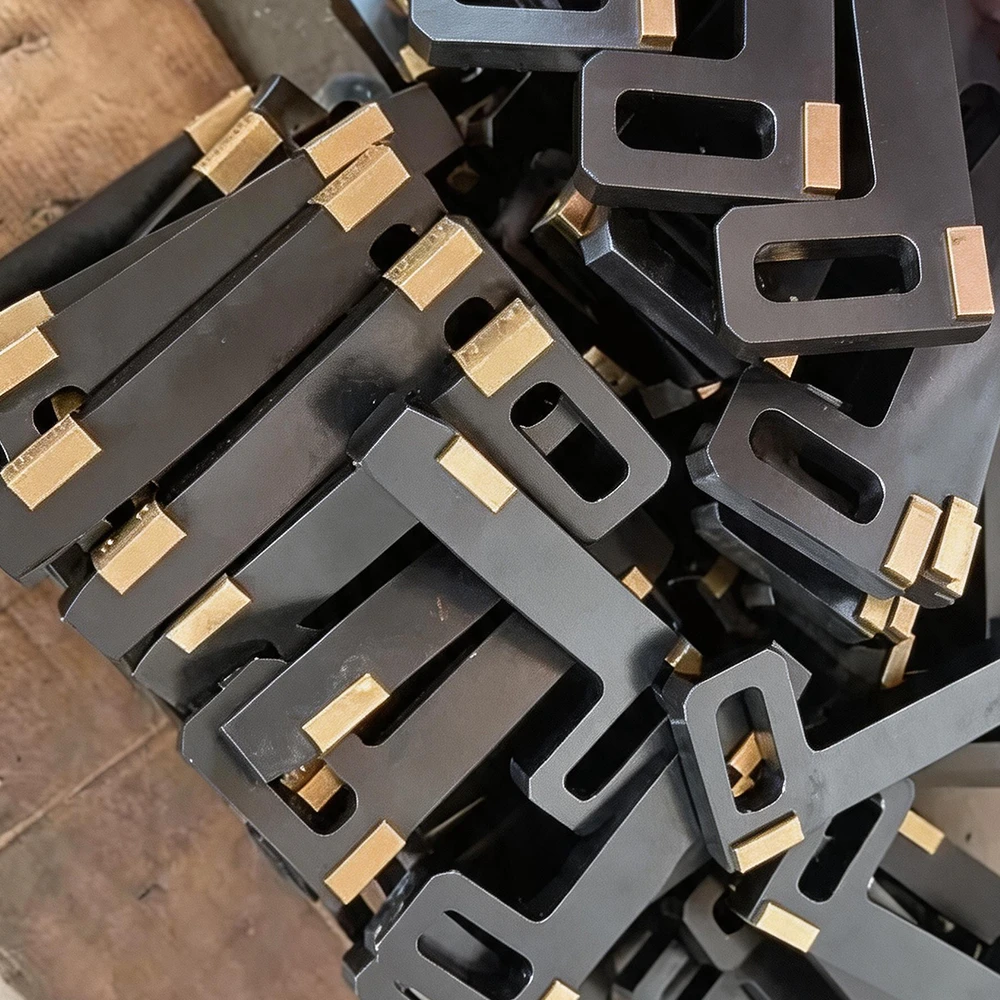

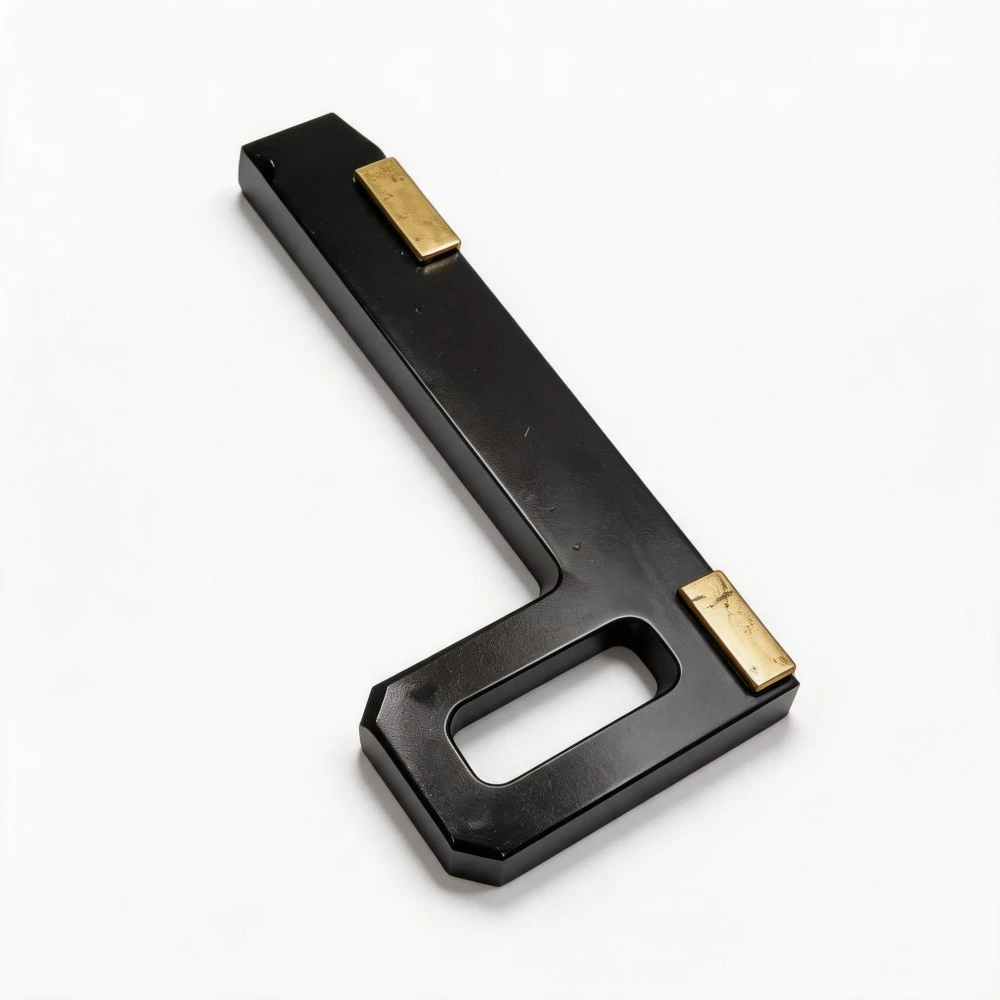

Our flashboard assembly serves as the dedicated access cover for the valve and spring chambers inside mud pump fluid end valve boxes. It is fastened tightly onto the valve box body via high-strength bolts, with a matching sealing gasket installed between the flashboard and valve housing to block high-pressure fluid leakage. Manufactured with sturdy, thickened structures, this assembly reliably withstands intense internal pumping pressure during continuous drilling operations.
Product Description
The biggest design highlight is convenient on-site maintenance. Operators can inspect, repair or replace suction valves, discharge valves, springs and valve seats directly after removing the flashboard, without complete disassembly of the whole fluid end unit. Since the flashboard requires frequent mounting and dismounting, its bolt holes and threaded sections are precision machined for extended wear resistance. Keeping the flashboard intact with intact sealing gaskets effectively stops mud spillage, guarantees safe pump operation and shortens routine maintenance cycles, greatly cutting unplanned production downtime.
Core Advantages
1. High-pressure resistant solid construction Heavy-duty integral structure bears the extreme pressure inside pump chambers, no deformation or cracking under long-term heavy-load drilling.
2. Fast, simplified maintenance workflow No full fluid-end disassembly needed; quick access to all internal valve components saves plenty of repair time.
3. Reliable leak-proof sealing performance Matched sealing gasket forms a complete isolation layer between flashboard and valve box, effectively preventing high-pressure drilling fluid outflow.
4. Wear-resistant threaded and bolt hole design Precision processed threads adapt to repeated disassembly, slowing down abrasion and extending the service life of matching fasteners.
5. Full model compatibility Specially produced to fit F-500, F-800, F-1000, F-1300 and F-1600 series mud pumps, direct replacement without modification.
6. Lower comprehensive operating cost Minimizes pump downtime caused by inspection and part replacement, improving overall drilling efficiency and reducing production loss.
|
Brand |
Compatible Models |
|
BOMCO |
F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, D-375, D-700 |
|
LANSHI |
3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
|
QINGZHOU |
SL3NB-1300A, QZ-1000, QZ-500, QZ-350, QZ-800, SL3NB-1600 |
|
HONGHUA |
3NB-1600F, HHF800/1000, HHF1300/1600, HHF1600HL, HHF2200HL |
|
DRILLMEC |
7TS450, 7TS600, 9T800, 9T1000, 10T1300, 12T1600 |
|
EMSCO |
F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC-1600, FC-2200 |
|
IDECO |
T-500, T-800, T-1000, T-1300, T-1600 |
|
GARDNER DENVER |
PZ-7, PZ-8, PZ-9, PZ-10, PZ-11 |
|
NATIONAL |
7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-200, 14-P-220, K-700, K-700A, K-500, K-500A |
|
OILWELL |
A-350PT, A-560PT, A-600PT, A-850PT, A-1100P, A-1400PT, A-1700PT |
|
ELLIS WILLIAMS |
W-440-LP, E-447, E-2200, W446, W440 |
|
RUSSIAN Series |
8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310 |
Applications
Offshore Drilling Mud Pump Replacement Parts
Corrosion-resistant power end and fluid end parts built for harsh marine conditions, fully interchangeable with mainstream F-series triplex mud pumps and designed for extended runtime between maintenance.
Deep Well Onshore Drilling Pump Components
Heavy-duty pump parts rated for high-pressure deep drilling operations, including forged crankshafts, crossheads and fluid end modules, delivering consistent performance under continuous heavy load per API standards.
Workover & Land Drilling Aftermarket Pump Parts
Cost-effective OEM-compatible spare parts for routine onshore drilling and workover projects, covering common wear parts of power end, fluid end and structural assemblies to cut maintenance costs.
