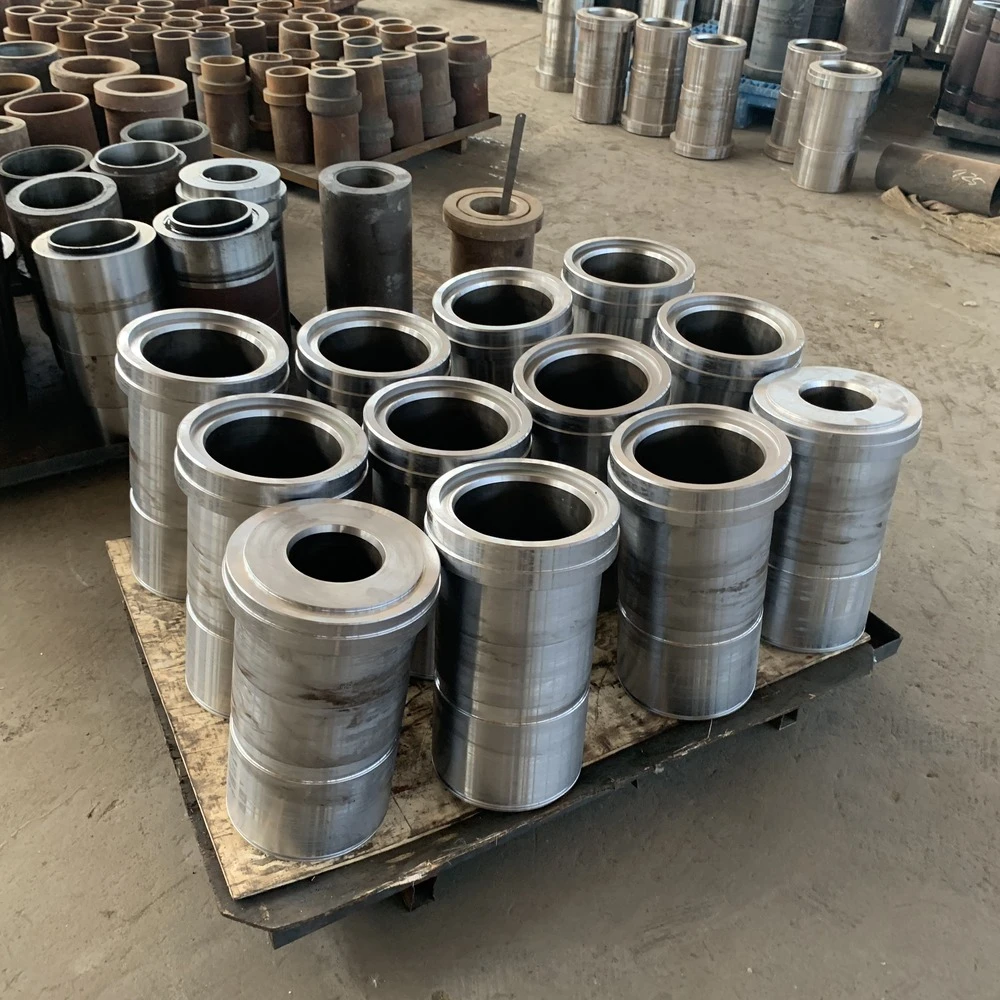

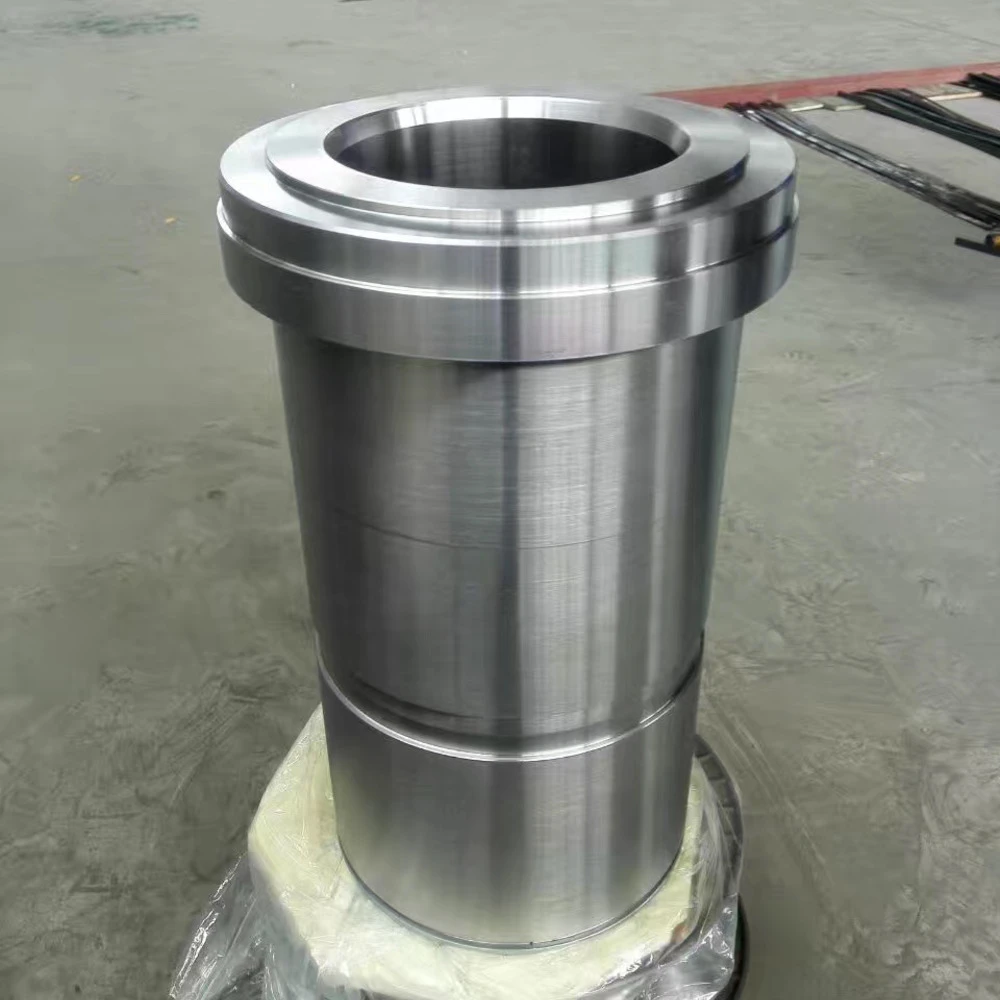

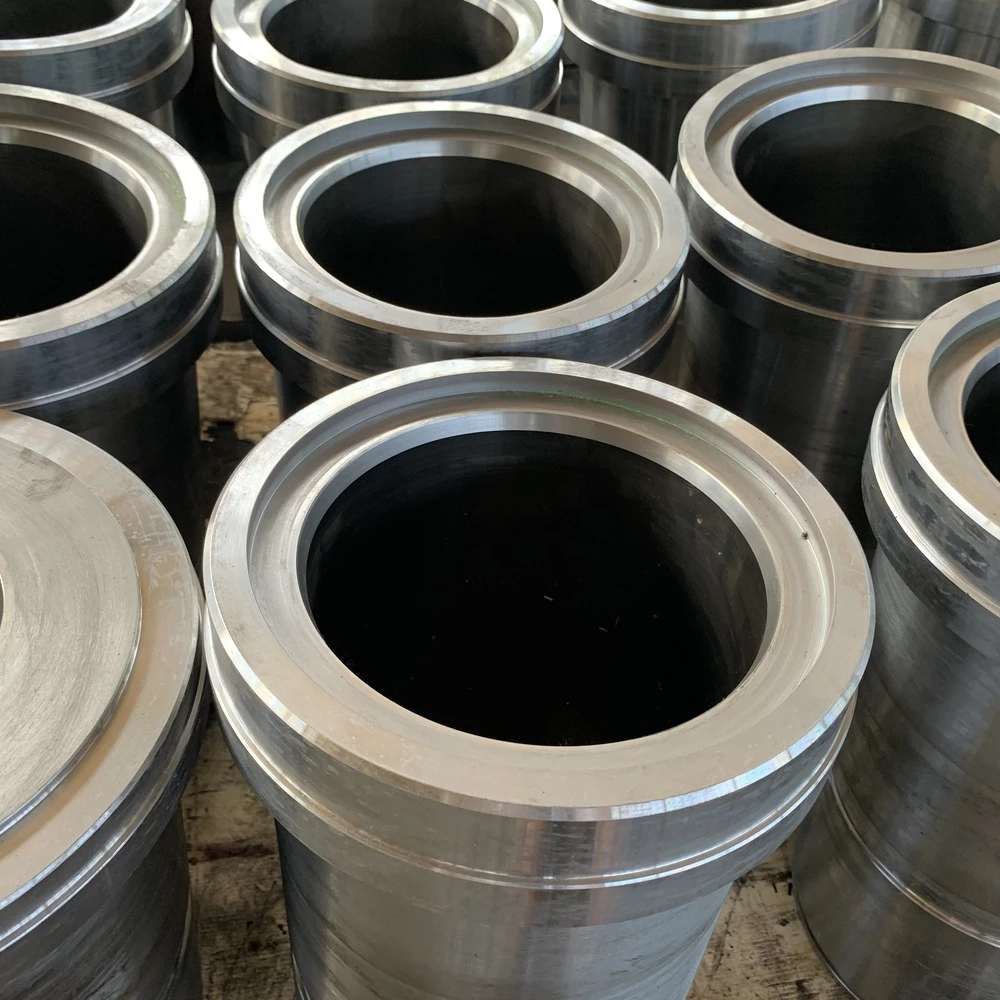

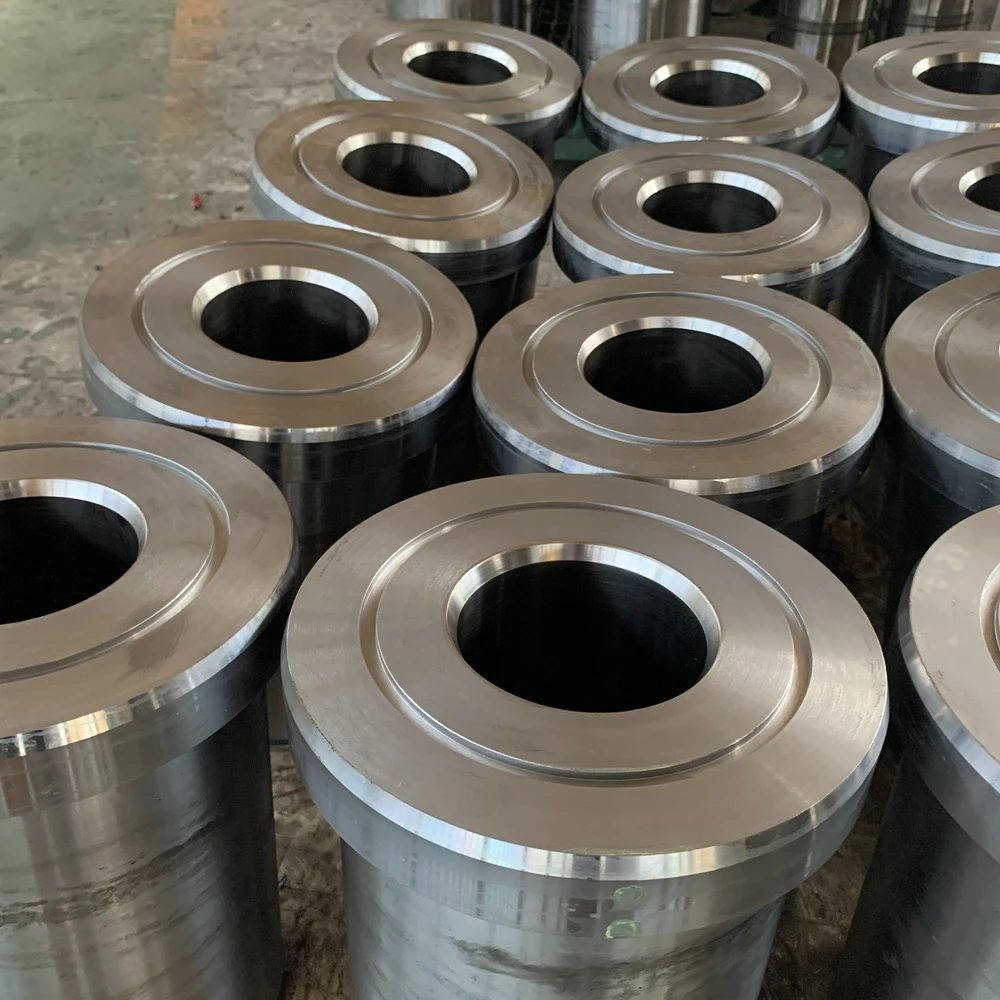

Mud Pump Liners
FH Petroleum manufactures metal mud pump liners with a forged 45# carbon steel outer sleeve and a centrifugally cast high-carbon, high-chromium wear-resistant alloy inner sleeve. The inner sleeve is heat treated to HRC 59–67 for the working bore. Metal liners are available for a wide range of mud pump models and can be manufactured according to pump models, part numbers, dimensions, technical drawings or approved samples.
Product Description
Metal mud pump liners are replaceable wear components installed in the fluid end of reciprocating mud pumps. FH Petroleum manufactures metal liners using a composite structure that combines a forged steel outer sleeve with a wear-resistant alloy working bore.
The outer sleeve is manufactured from 45# carbon steel using forging and heat-treatment processes. The inner sleeve is made from a high-carbon, high-chromium wear-resistant iron alloy and formed by centrifugal casting, followed by quenching and tempering. The hardness of the inner sleeve reaches HRC 59–67 according to FH Petroleum's product specification.
FH Petroleum supplies metal mud pump liners for a wide range of mud pump models and replacement requirements. Production can be arranged according to pump models, part numbers, dimensions, technical drawings or approved samples.
Technical Specifications
| Product Type | Metal Mud Pump Liner |
|---|---|
| Construction | Composite Metal Liner |
| Outer Sleeve Material | 45# Carbon Steel |
| Outer Sleeve Process | Forging & Heat Treatment |
| Inner Sleeve Material | High-Carbon, High-Chromium Wear-Resistant Iron Alloy |
| Inner Sleeve Process | Centrifugal Casting |
| Inner Sleeve Heat Treatment | Quenching & Tempering |
| Inner Sleeve Hardness | HRC 59–67 |
| Replacement Supply | Pump Model / Part No. / Dimensions / Technical Drawing / Approved Sample |
Product Features
Mud Pump Models & Replacement Manufacturing
FH Petroleum supplies metal mud pump liners manufactured in accordance with applicable API requirements for a wide range of mud pump models and replacement applications, including supply requirements for API mud pump manufacturers.
Replacement liners can be manufactured according to the required pump model, part number, liner dimensions, technical drawing or approved sample. Because liner dimensions and specifications may vary between pump models and configurations, technical information should be confirmed before production.
|
Brand |
Compatible Models |
|
BOMCO |
F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, D-375, D-700 |
|
LANSHI |
3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
|
QINGZHOU |
SL3NB-1300A, QZ-1000, QZ-500, QZ-350, QZ-800, SL3NB-1600 |
|
HONGHUA |
3NB-1600F, HHF800/1000, HHF1300/1600, HHF1600HL, HHF2200HL |
|
DRILLMEC |
7TS450, 7TS600, 9T800, 9T1000, 10T1300, 12T1600 |
|
EMSCO |
F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC-1600, FC-2200 |
|
IDECO |
T-500, T-800, T-1000, T-1300, T-1600 |
|
GARDNER DENVER |
PZ-7, PZ-8, PZ-9, PZ-10, PZ-11 |
|
NATIONAL |
7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-200, 14-P-220, K-700, K-700A, K-500, K-500A |
|
OILWELL |
A-350PT, A-560PT, A-600PT, A-850PT, A-1100P, A-1400PT, A-1700PT |
|
ELLIS WILLIAMS |
W-440-LP, E-447, E-2200, W446, W440 |
|
RUSSIAN Series |
8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310 |
Bimetallic Mud Pump Liners
For detailed information about FH Petroleum's bimetallic liner construction, high-chromium inner sleeve specifications and manufacturing process, view our Bimetallic Mud Pump Liners.
Applications
Offshore Drilling Mud Pump Replacement Parts
Corrosion-resistant power end and fluid end parts built for harsh marine conditions, fully interchangeable with mainstream F-series triplex mud pumps and designed for extended runtime between maintenance.
Deep Well Onshore Drilling Pump Components
Heavy-duty pump parts rated for high-pressure deep drilling operations, including forged crankshafts, crossheads and fluid end modules, delivering consistent performance under continuous heavy load per API standards.
Workover & Land Drilling Aftermarket Pump Parts
Cost-effective OEM-compatible spare parts for routine onshore drilling and workover projects, covering common wear parts of power end, fluid end and structural assemblies to cut maintenance costs.
