Mud Pump Crosshead

Mud Pump Crosshead

The crosshead is a key component of the mud pump power end. It connects to the connecting rod through the crosshead pin and helps transmit reciprocating motion toward the extension rod while moving along the guide surfaces.

Mud Pump Crosshead Overview

A mud pump crosshead is a key component of the pump power end. It connects to the connecting rod through the crosshead pin and helps transmit reciprocating motion toward the extension rod while moving along the guide surfaces.

FH Petroleum manufactures mud pump crossheads in different sizes and structural configurations for F-series and other drilling mud pumps.

We support OEM replacement requirements and custom manufacturing based on customer drawings, samples, dimensions and technical specifications.

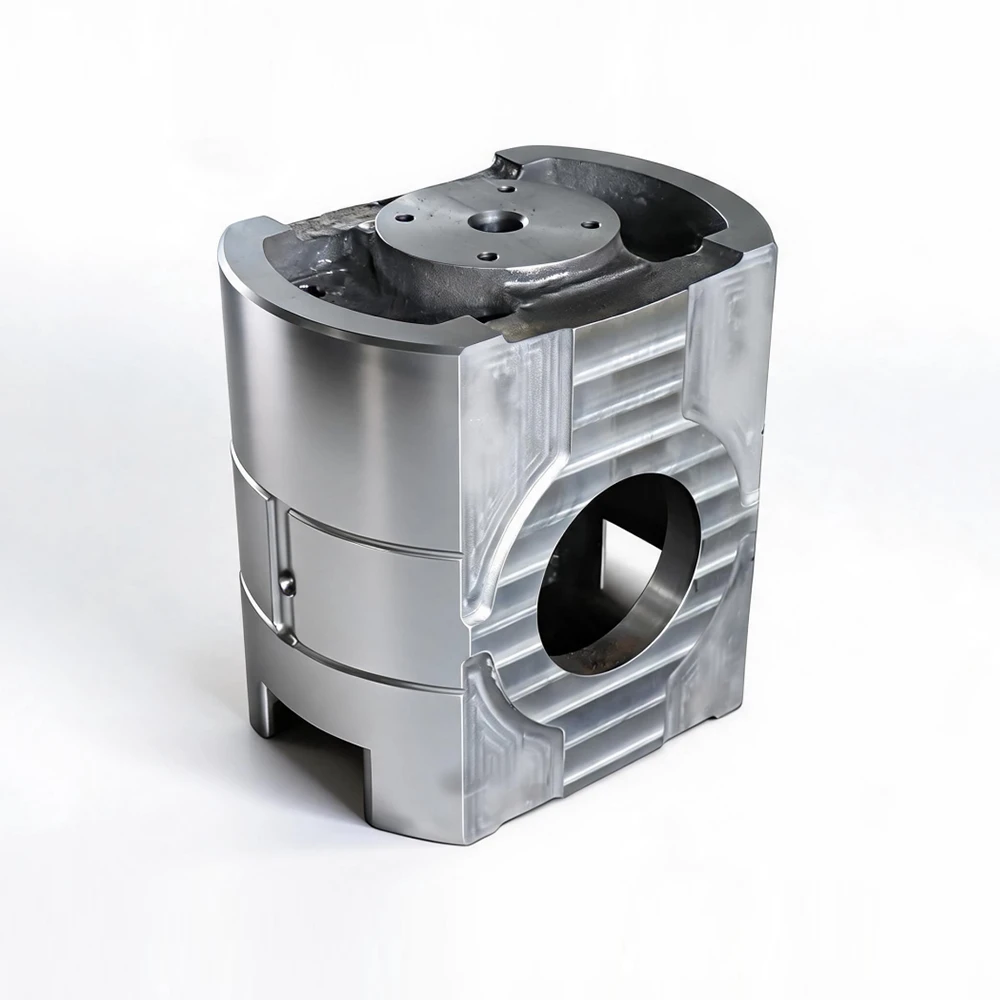

Mud pump crosshead finished component front view

Finished mud pump crosshead after final machining.

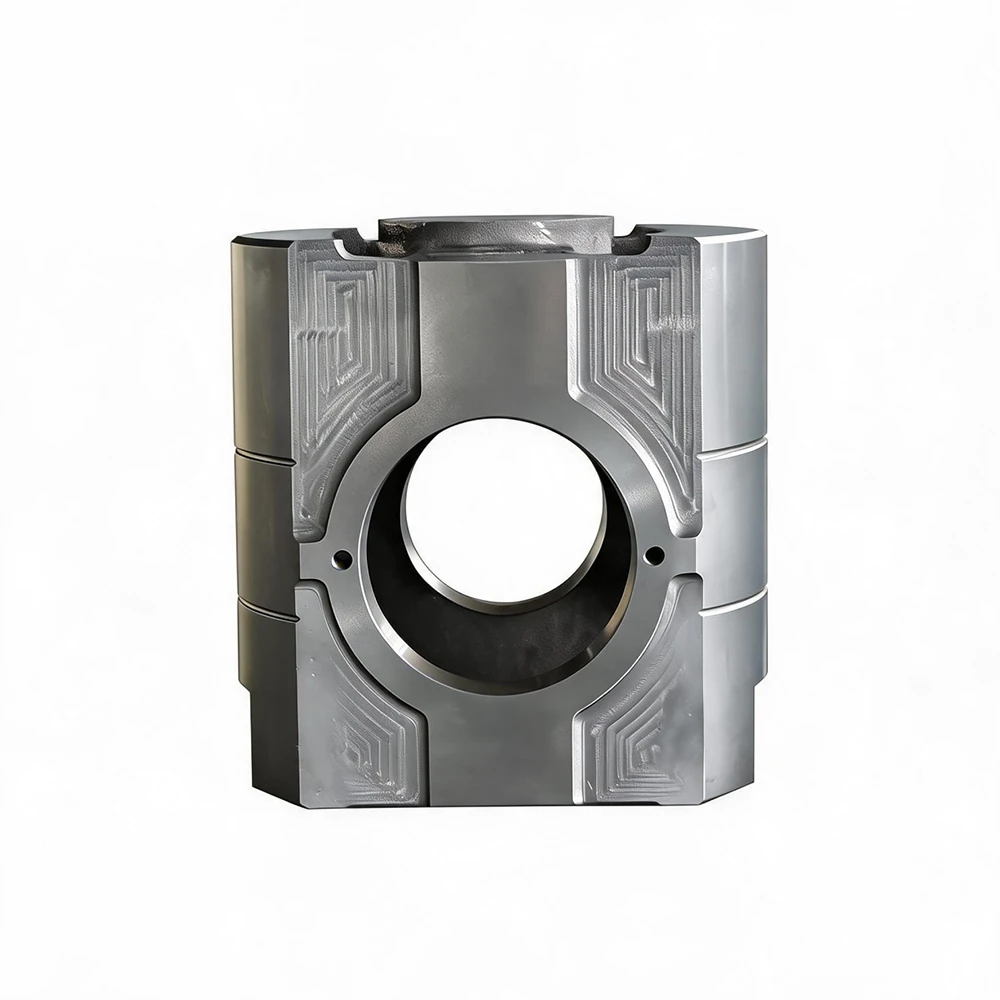

Precision machined mud pump crosshead side view

Machined crosshead body showing the pin bore and sliding surfaces.

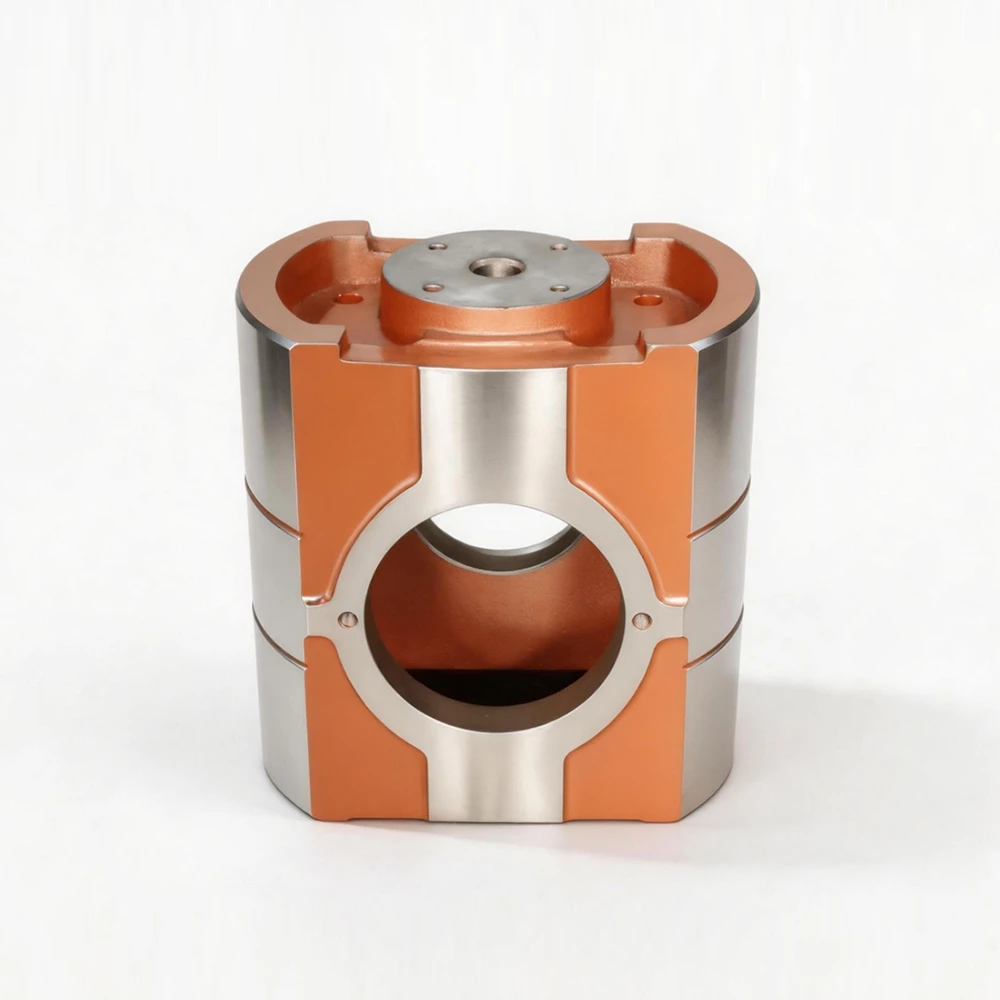

Finished mud pump crosshead with machined bore

Finished crosshead with a machined bore, ready for assembly.

Crosshead Designs & Custom Manufacturing

Mud pump crossheads are manufactured in different structural configurations according to pump models and application requirements.

Design features may vary, including external profiles, pin bore dimensions, sliding surfaces and other machined details.

FH Petroleum supports drawing-based manufacturing and custom production for applicable crosshead designs.

For replacement projects, customers are encouraged to provide the pump model, original part number, technical drawing or sample to confirm dimensions and fitment before ordering.

Optional Segmented Bronze Shoes

Segmented bronze shoes are available as an optional customized feature for applicable mud pump crosshead designs.

They are not a standard configuration for every crosshead.

When appropriately designed and matched to the operating conditions, bronze sliding surfaces can help improve wear performance and support longer component service life.

Bronze shoe dimensions, materials and fitment should be confirmed according to the specific crosshead design and customer requirements.

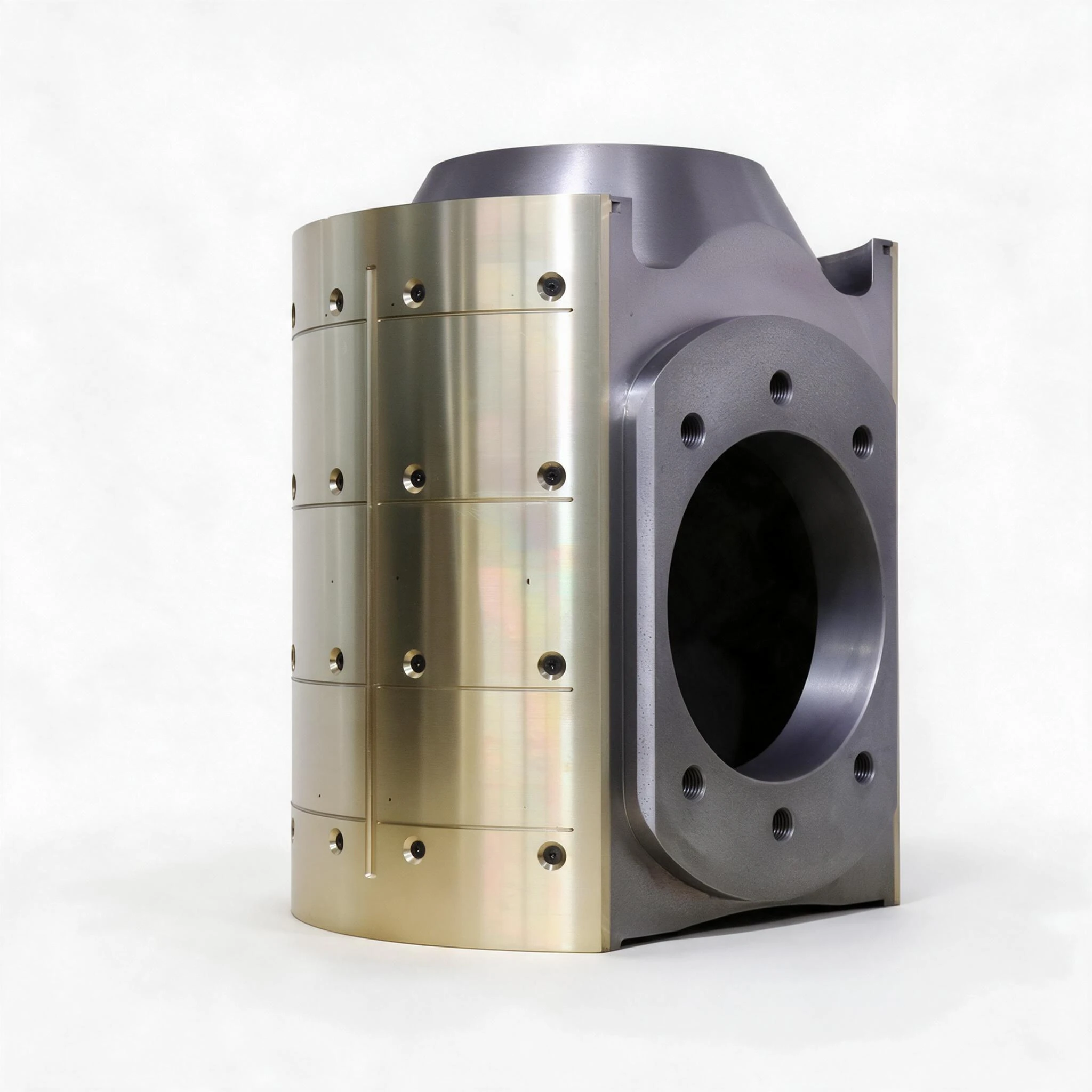

Mud pump crosshead with optional segmented bronze shoes

Crosshead fitted with segmented bronze shoes.

Two finished mud pump crossheads with bronze sliding shoes

Two crosshead designs prepared with bronze sliding shoes.

Finished Crossheads & Manufacturing

Finished Mud Pump Crossheads

Explore different finished mud pump crossheads manufactured by FH Petroleum, featuring various structural designs and machined details.

Materials & Manufacturing

FH Petroleum manufactures mud pump crossheads according to the material and mechanical property requirements of the applicable product drawings.

Ductile iron configurations are available for specified crosshead designs.

Material grades, mechanical properties and inspection requirements are determined by the applicable technical specifications.

Manufacturing includes machining of critical features and dimensional verification according to customer requirements.


Mud pump crosshead casting blanks before machining

Crosshead casting blanks stored before machining.

Precision Machining & Quality Inspection

Dimensional accuracy is important for crosshead fitment and operation within the mud pump power end.

FH Petroleum performs machining and dimensional inspection according to applicable drawings and technical requirements.

Inspection may include verification of critical dimensions, pin bores, sliding surfaces and other specified features.

Dimensional inspection of a mud pump crosshead using a measuring arm

Crosshead dimensions verified with a portable measuring arm.

Batch Supply, OEM Experience & Related Parts

Batch Production, Packaging & Delivery

FH Petroleum supports mud pump crosshead manufacturing for replacement requirements and batch supply projects.

Finished components are inspected and prepared for delivery according to the applicable order requirements.

Packaging can be arranged according to product dimensions, shipping methods and customer specifications.

Batch of finished mud pump crossheads prepared for delivery

Batch of finished crossheads prepared for delivery.

Mud pump crosshead packed in a protective wooden shipping crate

Crossheads packed in a wooden crate with protective wrapping.

OEM Supply Experience

FH Petroleum has manufacturing and supply experience with established Chinese drilling equipment OEMs, including BOMCO and Honghua.

This experience supports our understanding of mud pump component manufacturing, technical requirements and quality control.

For replacement crossheads, dimensions and compatibility must be confirmed against the actual pump model, original part number or technical drawing.

Related Mud Pump Power End Components

In addition to mud pump crossheads, FH Petroleum manufactures related power end components for applicable drilling mud pump models.

  • Crosshead Guide Plates — Components that provide guiding surfaces for crosshead movement.
  • Crosshead Pins — Components used to connect the crosshead and connecting rod.
  • Connecting Rods — Components that transmit motion from the crankshaft toward the crosshead.
  • Extension Rods — Components that transmit reciprocating motion toward the fluid end.

These products are available according to customer drawings, pump models and technical requirements.

Compatible Mud Pump Models

The following pump models are provided as reference applications. Crosshead dimensions and interchangeability must be confirmed against the actual pump model, original part number or technical drawing before ordering.

Brand

Compatible Models

BOMCO

F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, D-375, D-700

LANSHI

3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800

QINGZHOU

SL3NB-1300A, QZ-1000, QZ-500, QZ-350, QZ-800, SL3NB-1600

HONGHUA

3NB-1600F, HHF800/1000, HHF1300/1600, HHF1600HL, HHF2200HL

DRILLMEC

7TS450, 7TS600, 9T800, 9T1000, 10T1300, 12T1600

EMSCO

F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600, FC-1600, FC-2200

IDECO

T-500, T-800, T-1000, T-1300, T-1600

GARDNER DENVER

PZ-7, PZ-8, PZ-9, PZ-10, PZ-11

NATIONAL

7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-200, 14-P-220, K-700, K-700A, K-500, K-500A

OILWELL

A-350PT, A-560PT, A-600PT, A-850PT, A-1100P, A-1400PT, A-1700PT

ELLIS WILLIAMS

W-440-LP, E-447, E-2200, W446, W440

RUSSIAN Series

8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310

Applications

Key Features & Maintenance

  1. Crosshead manufacturing for F-series and other drilling mud pump models.
  2. Different structural configurations according to application requirements.
  3. Optional segmented bronze shoes for applicable customized designs.
  4. Precision machining of critical features.
  5. Dimensional inspection according to technical specifications.
  6. OEM replacement and drawing-based custom manufacturing.
  7. Batch production and packaging support.

Maintenance Tips

The crosshead pin bearings and guide shoes are subject to wear under long-term high-load operation. Regular inspection of the fit clearance between the crosshead and guide plates, as well as the wear condition of the pin bearings, is recommended. Timely maintenance or replacement ensures smooth pump operation and extends the overall service life of the mud pump.
