Mud pump valves and seats are critical wear components in the fluid end of a drilling mud pump. During each pumping cycle, the valve opens and closes against the valve seat while exposed to repeated impact, pressure cycles and abrasive drilling fluid.
Reliable replacement therefore depends on more than external dimensions. Valve body construction, material selection, hardened surfaces, machining accuracy and correct matching among the valve body, sealing insert and valve seat all influence how the assembly fits and functions.
FH Petroleum Machinery manufactures mud pump valve bodies and matching valve seats for replacement and customized applications. Our valve body manufacturing capability includes both conventional friction-welded construction and our patented one-piece forged design.
FH one-piece forged mud pump valve body manufactured as an integral structure before installation of the sealing insert.
The mud pump valve body is the moving structural component of the valve system. It supports the replaceable sealing insert and guides the opening and closing movement of the valve.
The valve seat is the stationary mating component installed in the fluid end. When the valve closes, the insert contacts the corresponding seat surface to control the direction of fluid flow.
The principal components include:
These parts must be selected as a coordinated system. A valve body with the correct general appearance may still be unsuitable if its dimensions, guiding structure, insert configuration or mating seat geometry do not match the required application.
FH Petroleum can supply valve bodies, valve seats, sealing inserts or coordinated valve and seat sets according to confirmed customer requirements.
Depending on the required valve design, FH Petroleum can manufacture full-open, three-web (triple-rib) and four-web (four-rib) valve body configurations.
FH Petroleum provides two valve body manufacturing options for different technical and purchasing requirements:
Both are established manufacturing solutions. Selection should be based on the required drawing, replacement specification, operating conditions and customer preference.

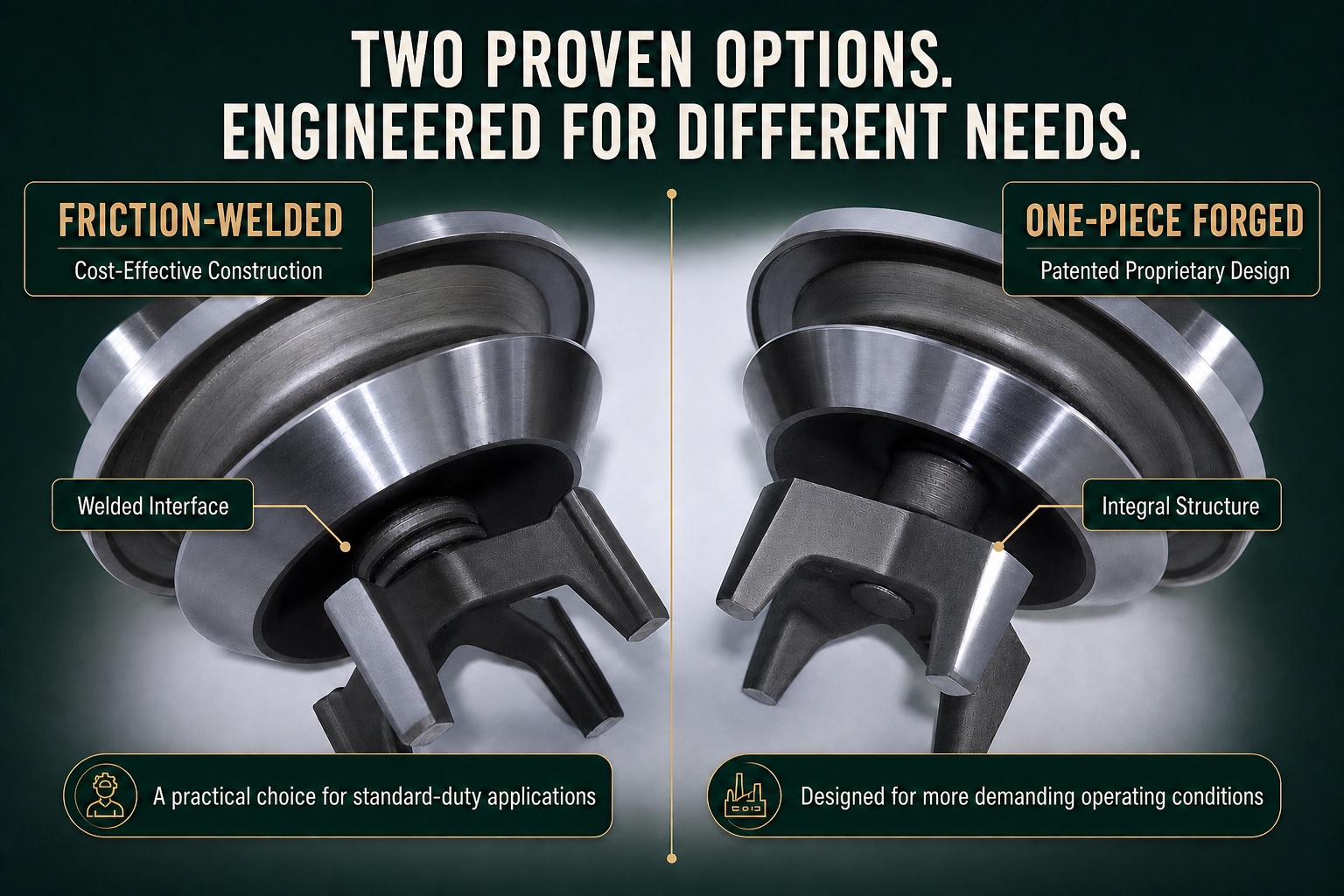

Comparison of a friction-welded valve body with a welded interface and a one-piece forged valve body with an integral structure.
A friction-welded valve body is manufactured from separately prepared sections that are joined through a controlled friction-welding process.
This established construction remains a practical option for many standard replacement applications. Its manufacturing quality depends on correct component preparation, joint alignment, welding-process control and subsequent machining.
The welded interface is the key structural feature that distinguishes this construction from a one-piece forged valve body.

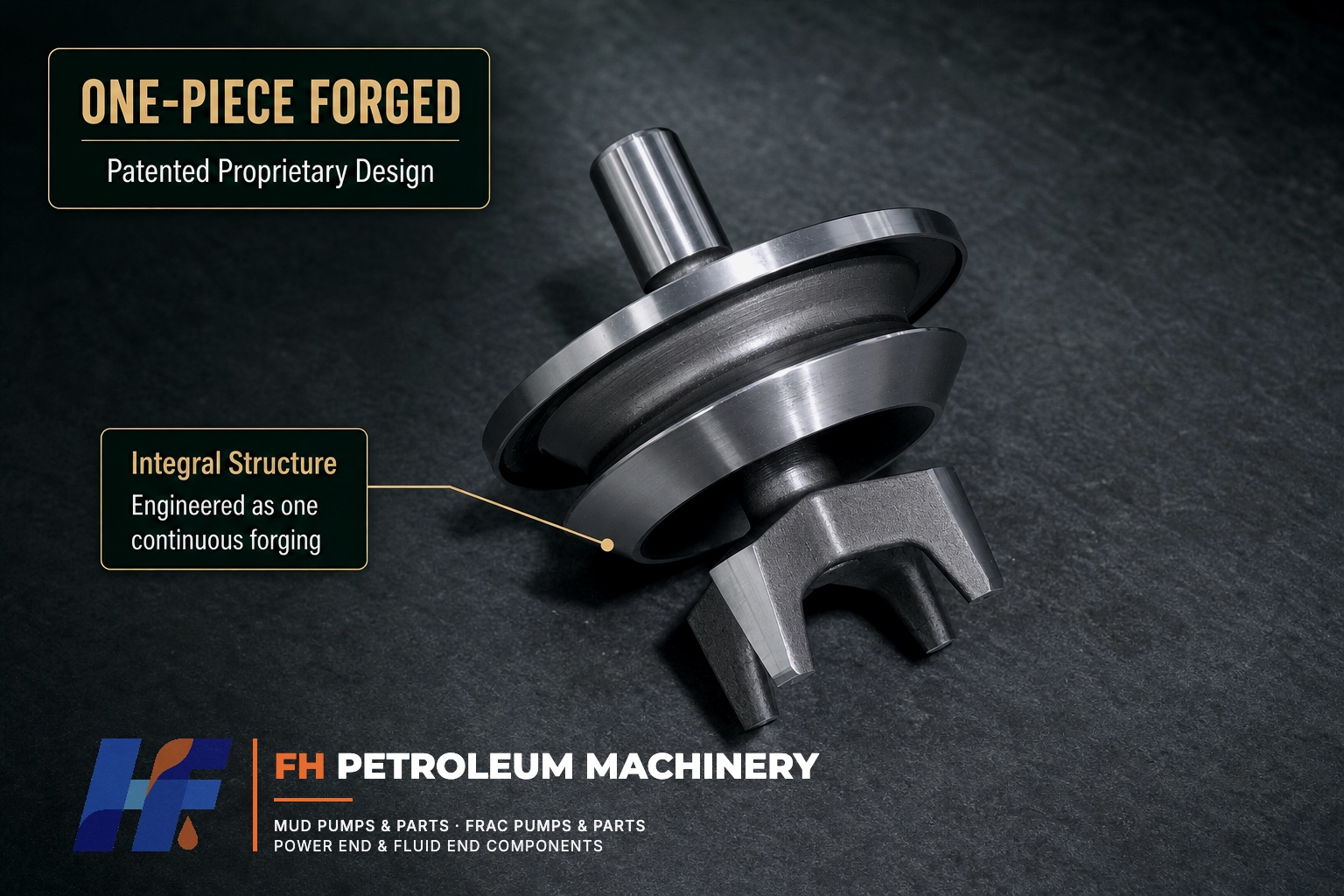

FH Petroleum’s patented one-piece forged valve body design provides an integral alternative to conventional friction-welded construction. The principal valve body structure is produced from a single forged blank before subsequent machining and required processing.
Because the principal sections are formed as one integral structure, the design does not contain the friction-welded interface found between the main sections of conventional friction-welded construction.
FH continues to manufacture both friction-welded and one-piece forged valve bodies according to the required valve design, drawing, application and customer requirements.
Final selection should still be based on the customer’s drawing, pump requirements and operating conditions.
The transition between the central stem area and the main body is an important identifying feature of the one-piece design.
In a friction-welded valve body, separately manufactured sections meet at a welded interface. In the one-piece forged version, the corresponding transition belongs to the same integral forged blank.

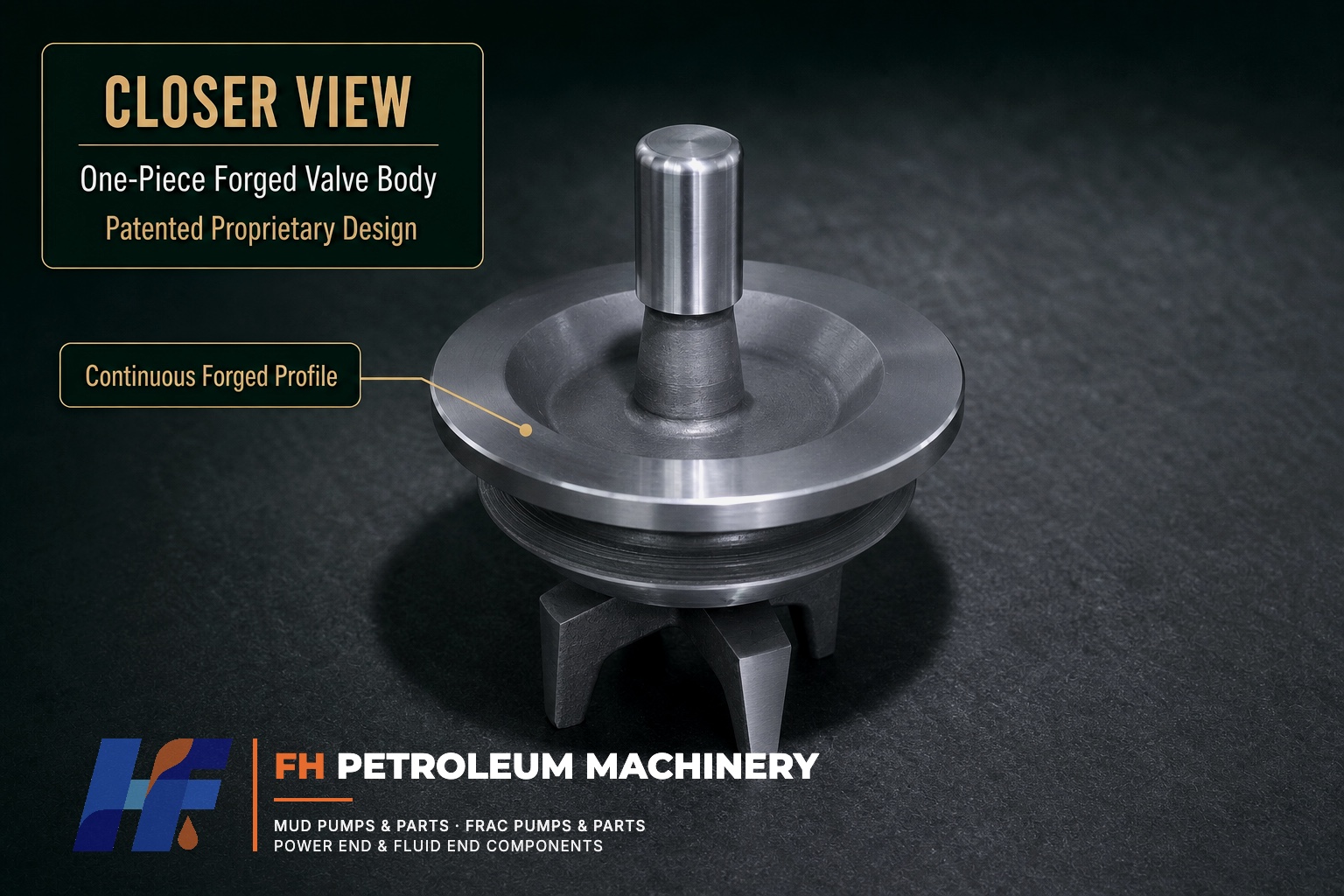

Close view of the continuous structural transition on an FH one-piece forged valve body.
The image highlights the external profile of the integral design. It shows the visible structural transition and machined surfaces of the valve body. It does not represent a cutaway view or metallurgical examination of the internal grain flow.
FH valve bodies can be manufactured from 20CrMnTi alloy steel according to the applicable product drawing and manufacturing specification.
After the specified heat-treatment process, designated hardened surfaces can reach HRC 60–65. This hardness value applies to the required hardened areas rather than automatically describing the hardness of the entire component.
Material and heat-treatment requirements should be confirmed against the relevant drawing, order specification or customer requirement before production.
A finished valve body begins with a blank that provides sufficient material for the following machining operations.
The manufacturing route varies according to the valve design and approved process. Relevant stages may include:
The exact sequence is controlled by the required drawing and manufacturing process.

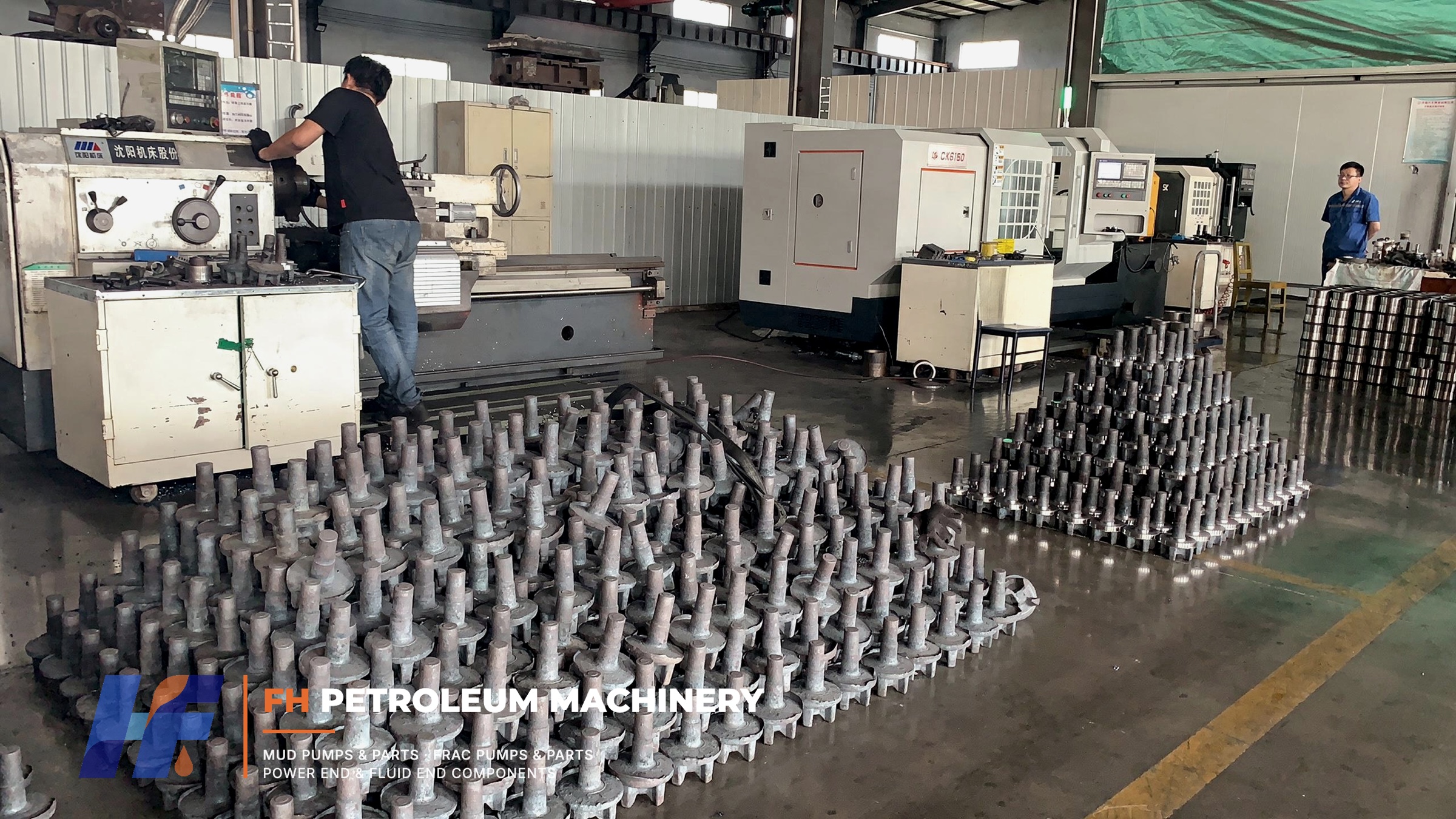

Batch of one-piece forged blanks corresponding to the No. 7 triple-rib valve design, with partially machined components and machining equipment visible in the workshop.
The production batch shown here consists of No. 7 triple-rib one-piece forged valve body blanks manufactured by FH Petroleum for Baoji Oilfield Machinery (BOMCO) applications. FH Petroleum is the sole supplier of this specific valve body product/configuration to BOMCO.
Their unfinished surfaces and retained machining allowance distinguish them from completed valve bodies.
Partially machined components are visible separately on the right side of the workshop. Together, the two groups show different manufacturing stages within the same production environment.
After initial machining, valve bodies may already show finished surfaces on the stem or outer profile while other areas still retain a rougher appearance.
At this stage, the components have not yet become complete valve assemblies. No replaceable sealing inserts are installed, and further processing or inspection may still be required.

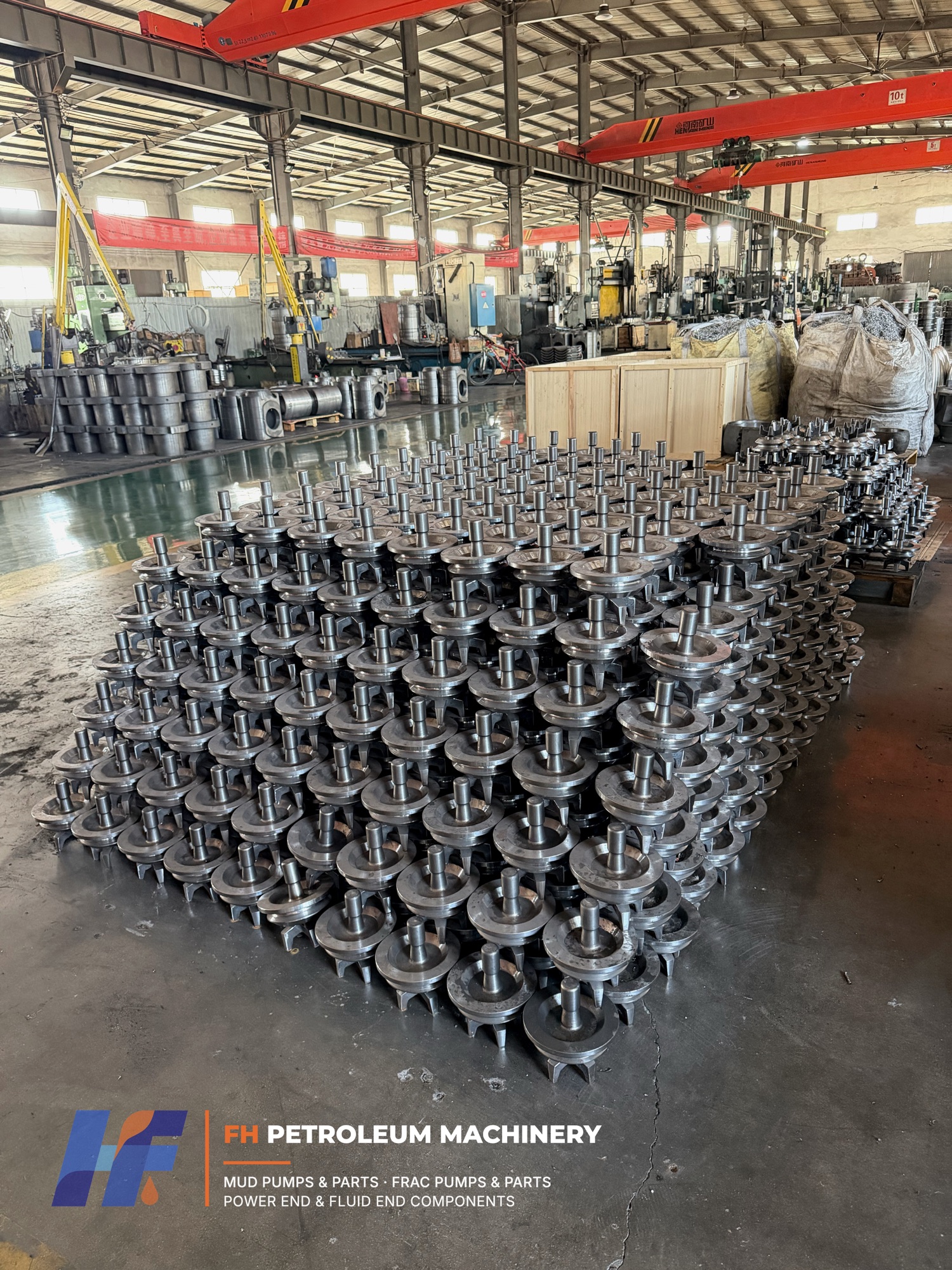

Partially machined mud pump valve bodies arranged in batches before final processing, inspection and installation of sealing inserts.
The photograph demonstrates the ability to organize a large production quantity through the intermediate manufacturing stages. It should be understood as a batch of semi-finished valve bodies rather than finished valve assemblies.
Producing one acceptable component and maintaining the same requirements across a repeat order are different manufacturing challenges.
Batch manufacturing requires control of material, machining references, critical dimensions and production status throughout the order. Components at different stages must also remain identifiable before final inspection and delivery.

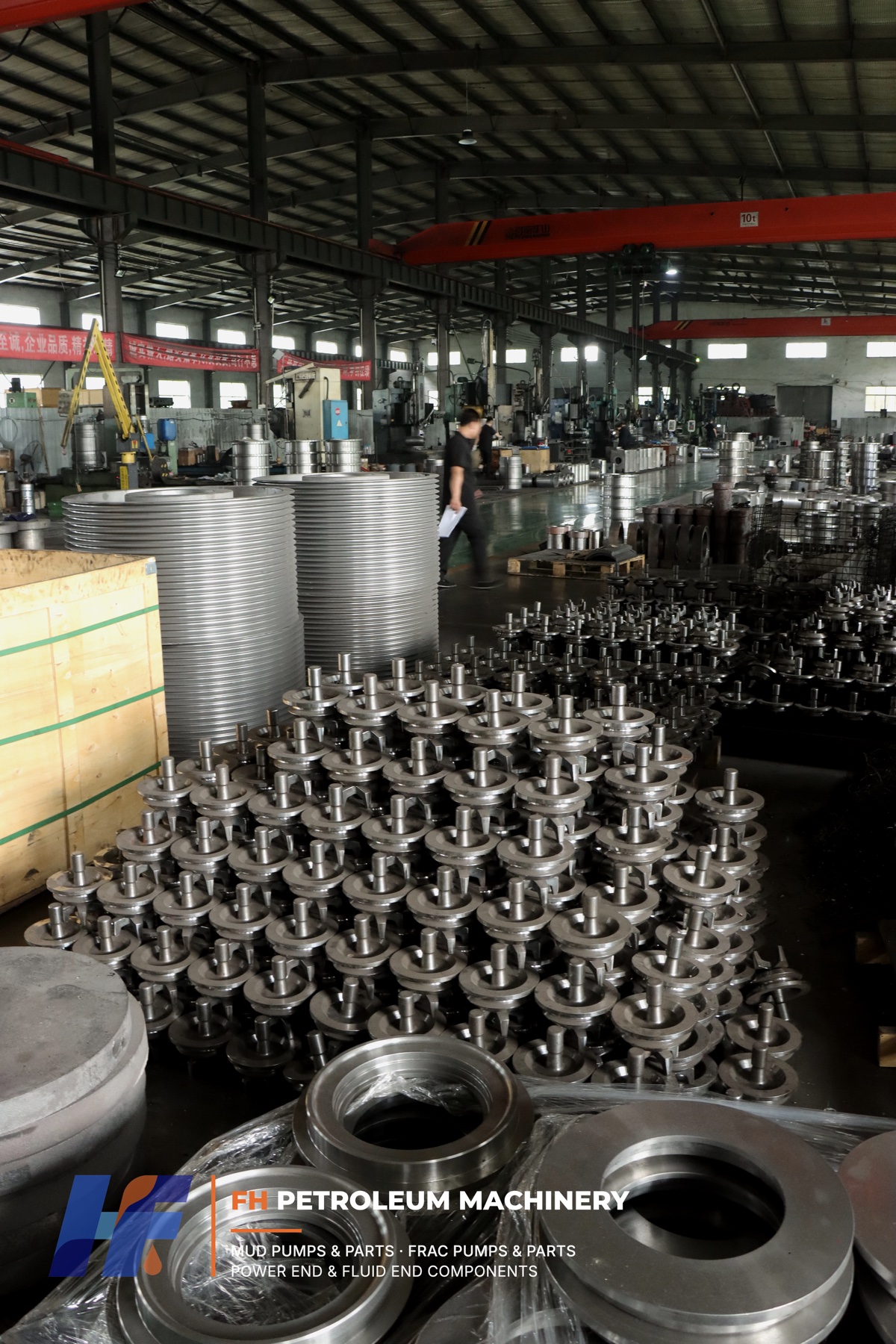

Large batches of machined mud pump valve bodies and other components in the FH Petroleum production workshop.
This workshop photograph provides a wider view of production capacity. The central groups contain large quantities of valve bodies, while other machined mud pump components are also visible around the workshop.
FH Petroleum supports:
The valve seat is the stationary counterpart to the valve body and sealing insert. Its dimensions and mating geometry must correspond to the required valve configuration.
Valve seat production begins with prepared blanks. Before machining, the blanks retain additional material that will later be removed to create the specified external dimensions, internal profile and mating surfaces.

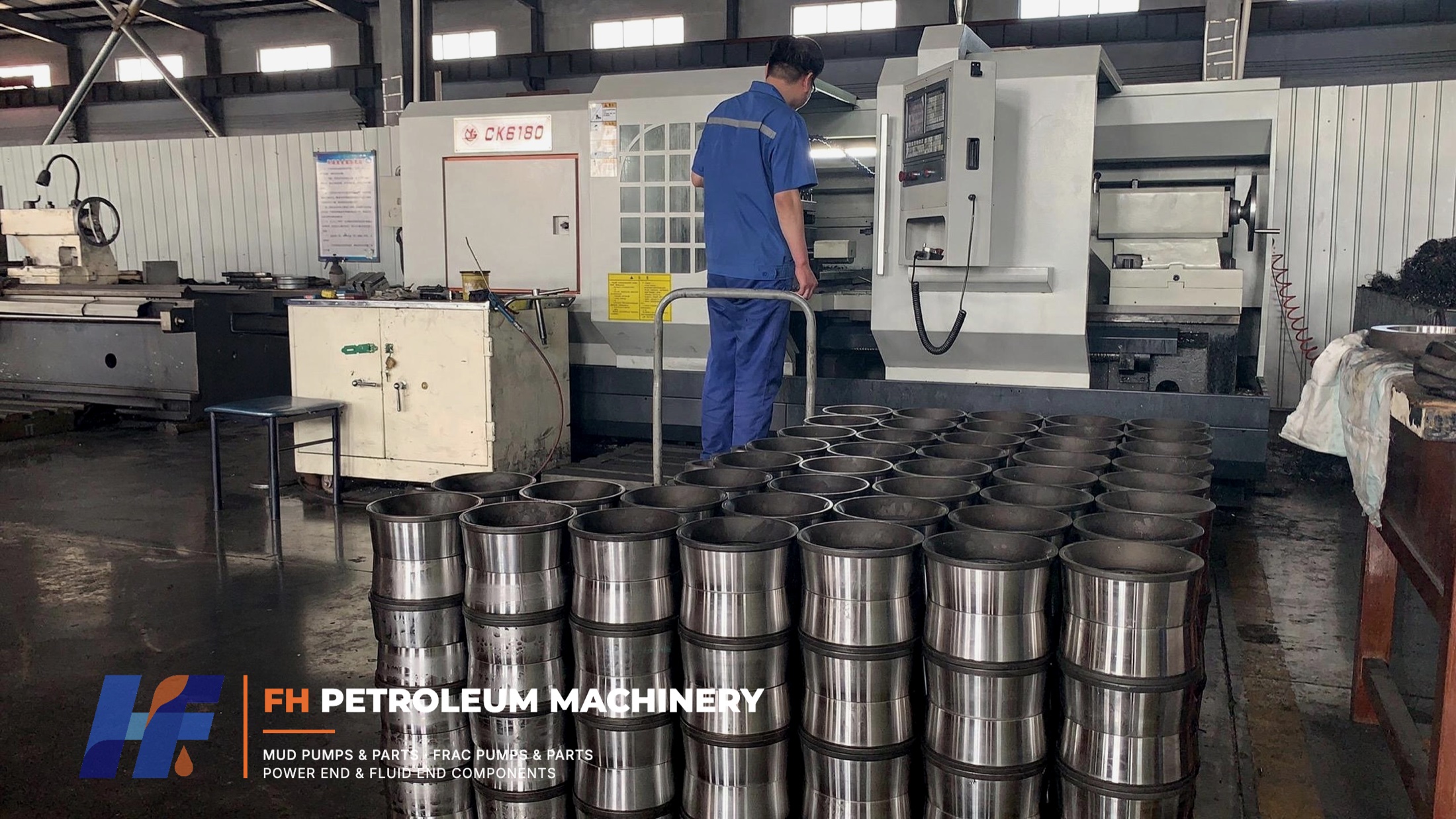

Batches of mud pump valve seat blanks arranged in front of CNC equipment while waiting for machining.
The photograph shows valve seat blanks staged in the machining area. The blanks are waiting for processing; the image does not show a cutting tool actively machining a valve seat.
Manufacturing requirements for the seats are determined by the applicable drawing and matching valve specification. The photographed blanks should therefore not be used to claim a particular finished size, material grade or completed surface condition unless those details are confirmed separately.
FH Petroleum supplies replaceable sealing inserts for mud pump valve assemblies. Available material options include NBR, CPU and TPU, while insert material, color, configuration, dimensions and other requirements can be customized according to the confirmed valve design and customer specification.
Insert colors should not automatically be used to infer hardness, temperature resistance or compatibility with a particular drilling fluid. These characteristics must be confirmed from the actual material specification.
Supplying the valve body, sealing insert and matching valve seat as coordinated components helps customers confirm the required assembly configuration before placing an order.
For mud pump valves and seats, external appearance alone cannot verify manufacturing quality.
Inspection requirements may include:
The applicable inspection scope depends on the drawing, technical specification and purchase requirements.
FH Petroleum manufactures according to confirmed requirements and can evaluate the documentation needed for an individual order.
The corresponding valve design has accumulated field application experience in oilfield service, with recorded continuous stable operation exceeding 400 hours in actual use.
Actual valve service life depends on operating conditions, drilling fluid properties, pump condition, maintenance practices and other field variables. The 400+ hour figure therefore represents documented practical application experience for the corresponding product rather than a guaranteed service-life value for every operating condition.
Mud pump fleets may contain equipment from different manufacturers, production periods and component configurations. A pump model name alone may not always provide enough information to identify the required valve and seat.
For accurate evaluation, customers can provide:
FH Petroleum can review the available information and determine whether an existing product or customized manufacturing solution is appropriate.
FH Petroleum combines valve body manufacturing experience with the ability to supply the corresponding valve seats and replaceable sealing inserts.
Key capabilities include:
This allows customers to source individual replacement components or a coordinated mud pump valve and seat solution from one manufacturing supplier.
FH Petroleum supplies mud pump valve bodies, valve seats, sealing inserts and related fluid-end replacement components for international customers.
For quotation or technical evaluation, please send the pump model, part number, drawing, dimensions, sample information, required quantity and sealing-insert requirements.
Our team will review the information and confirm the appropriate valve body construction, matching valve seat and available manufacturing solution.
A friction-welded valve body is produced from separately prepared sections joined through friction welding. A one-piece forged valve body is formed as an integral forged component and does not contain the same welded interface between the principal body sections.
Yes. FH Petroleum manufactures friction-welded valve bodies and proprietary one-piece forged valve bodies according to the required product specification.
20CrMnTi alloy steel is available for FH mud pump valve bodies. The final material and heat-treatment requirements must be confirmed against the applicable drawing or order specification.
The figure refers to specified hardened surfaces or designated hardened areas. It should not be interpreted as the uniform hardness of the entire valve body unless a particular technical specification explicitly states this.
Yes. Insert material, color, configuration, dimensions and other requirements can be customized according to the confirmed customer specification. Polyurethane is available as a common material option.
Yes. FH Petroleum can supply valve bodies, matching valve seats, sealing inserts or coordinated valve and seat sets.
Customers should provide the pump manufacturer and model, part number or drawing, valve and seat size, required quantity and any sealing-insert or operating requirements. An existing sample may also be used for evaluation when drawings are unavailable.
