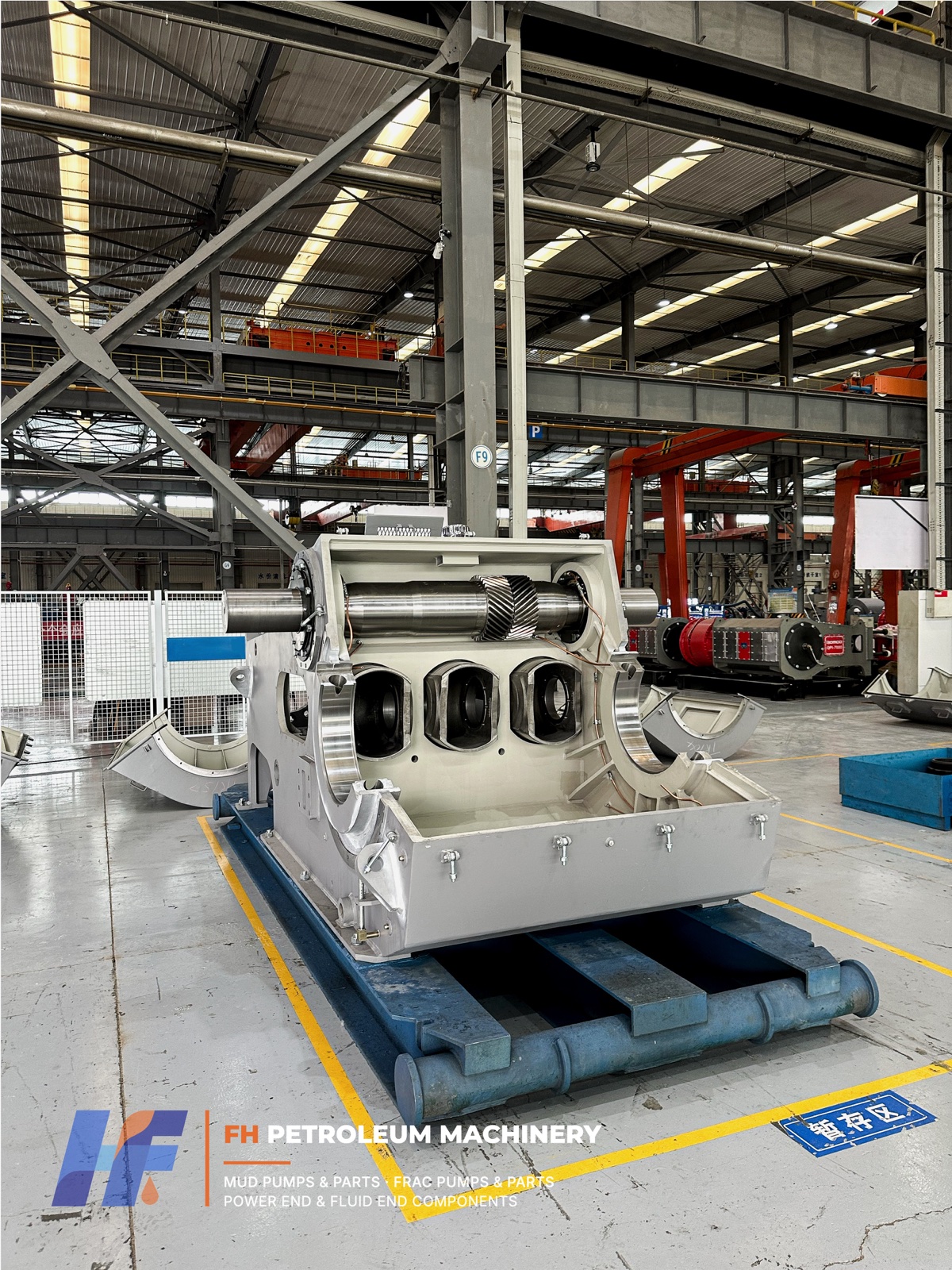

Power End Internal Structure
The F-Series mud pump power end converts rotary input into reciprocating motion through the pinion shaft, crankshaft, connecting rods and crosshead assemblies.
+86 123 456 7890
+86 123 456 7890
F Series Mud Pumps
Product Overview

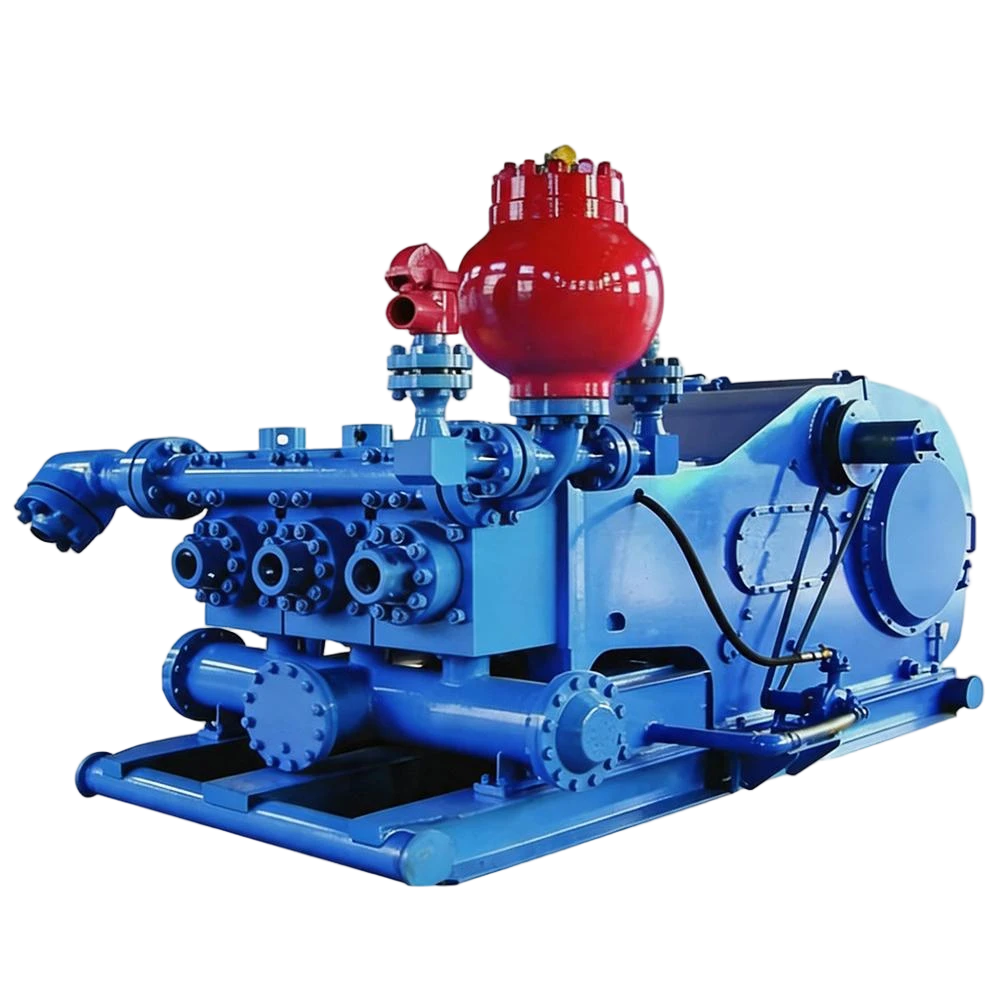

F-Series mud pumps are triplex reciprocating pumps designed to circulate drilling fluid through the drilling system. The series covers a range of power ratings and operating configurations for different drilling requirements.
FH Petroleum supplies F-Series mud pumps covering F-500, F-800, F-1000, F-1300, F-1600 and F-1600HL. The F-1600HL represents the F-1600 7500 PSI configuration for applications requiring the corresponding higher-pressure fluid-end arrangement.
Complete pump configurations and replacement components can be supplied according to the required pump model, technical specifications and project requirements.
Complete F-Series mud pumps are supplied through an API-certified pump manufacturing system, with applicable components manufactured to the corresponding API requirements.
Available Models:
For category-level product information, see F-Series Mud Pumps.
Technical Specifications – F-Series Mud Pumps
| Model | Type | Rated Power | Rated Speed | Stroke | Maximum Liner Diameter | Gear Type | Valve Pot / Valve Type | Gear Ratio | Suction Inlet | Discharge Outlet | Lubrication | Maximum Working Pressure | Overall Dimensions (in) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

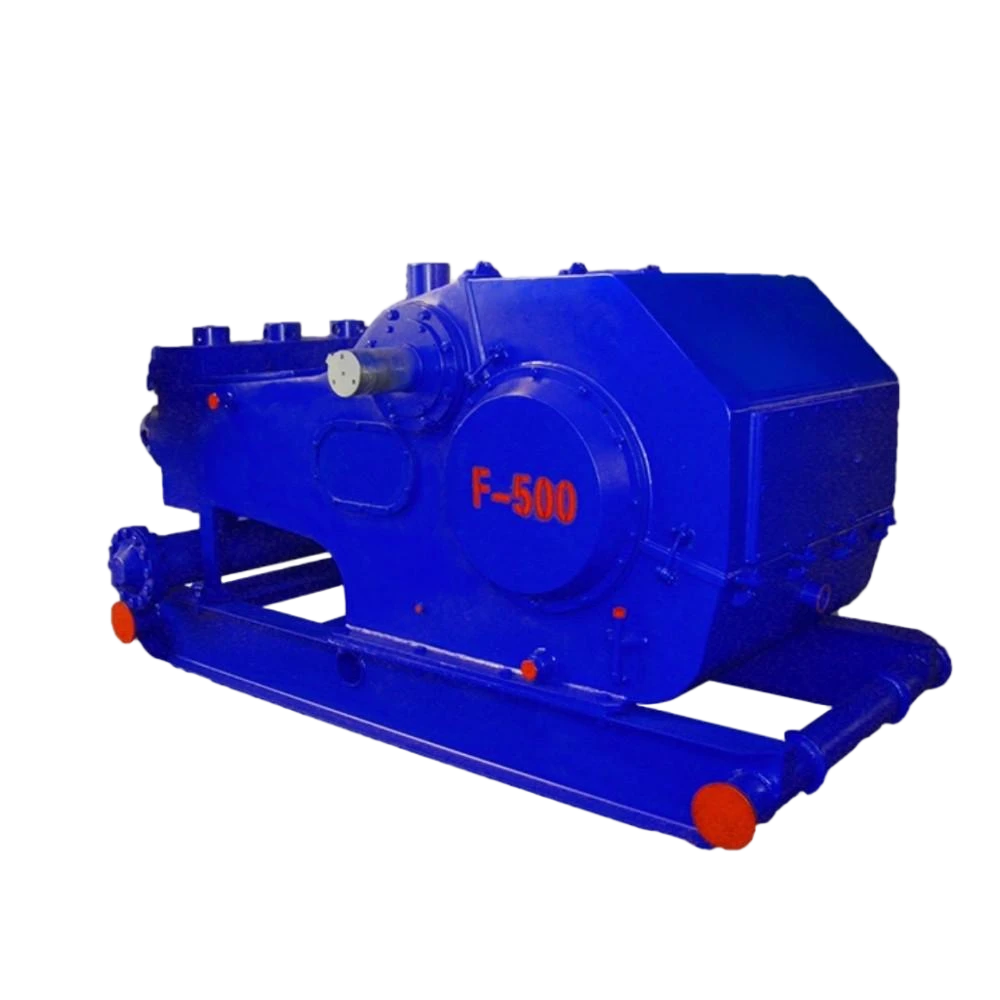

| F-500 | Triplex single acting | 370 kW (500 HP) | 165 SPM | 191 mm (7.5 in) | 6 3/4 in | Herringbone | API 5# | 4.286:1 | 203 mm (8 in) | 4 1/16 in flange, 35 MPa | Forced & Splash | 34.5 MPa (5000 PSI) | 144 x 106 x 86 | 9,770 kg |

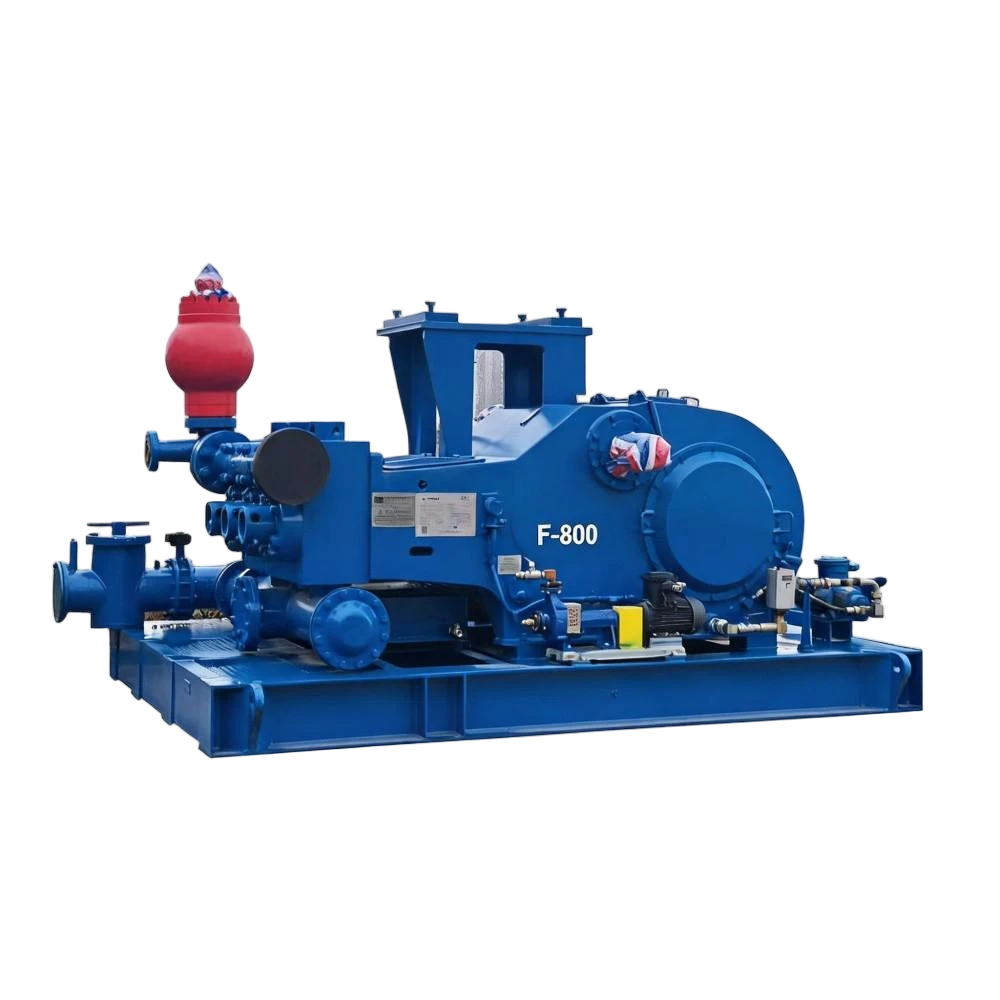

| F-800 | Triplex single acting | 590 kW (800 HP) | 150 SPM | 228.6 mm (9 in) | 6 1/2 in | Herringbone | API 6# | 4.185:1 | 254 mm (10 in) | 5 1/8 in flange, 35 MPa | Forced & Splash | 34.5 MPa (5000 PSI) | 156 x 79 x 66 | 14,500 kg |
| F-1000 | Triplex single acting | 746 kW (1000 HP) | 140 SPM | 254 mm (10 in) | 6 3/4 in | Herringbone | API 6# | 4.207:1 | 305 mm (12 in) | 5 1/8 in flange, 35 MPa | Forced & Splash | 34.5 MPa (5000 PSI) | 163 x 89 x 70 | 18,790 kg |

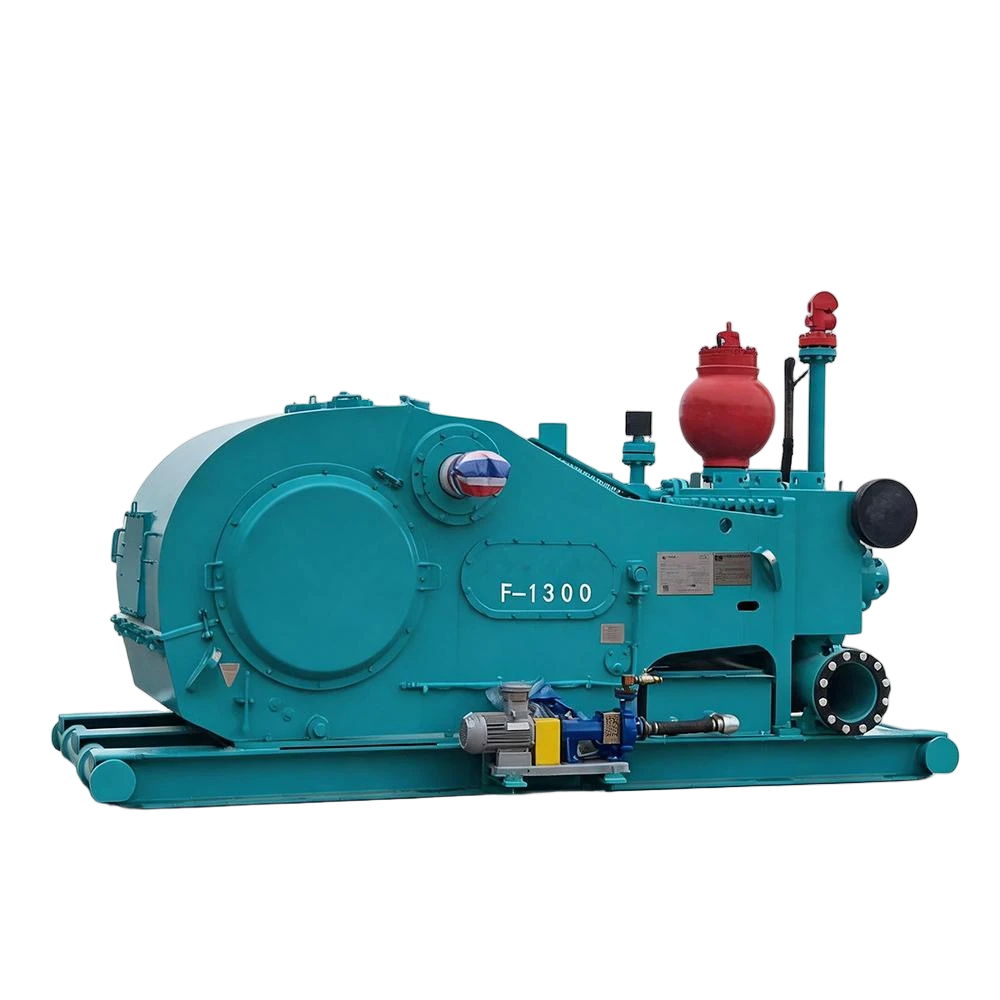

| F-1300 | Triplex single acting | 960 kW (1300 HP) | 120 SPM | 304.8 mm (12 in) | 7 in | Herringbone | API 7# | 4.206:1 | 305 mm (12 in) | 5 1/8 in flange, 35 MPa | Forced & Splash | 34.5 MPa (5000 PSI) | 174 x 121 x 78 | 25,850 kg |
| F-1600 | Triplex single acting | 1193 kW (1600 HP) | 120 SPM | 304.8 mm (12 in) | 7 in | Herringbone | API 7# | 4.31:1 | 305 mm (12 in) | 5 1/8 in flange, 35 MPa | Forced & Splash | 34.5 MPa (5000 PSI) | 181 x 129 x 106 | 26,100 kg |

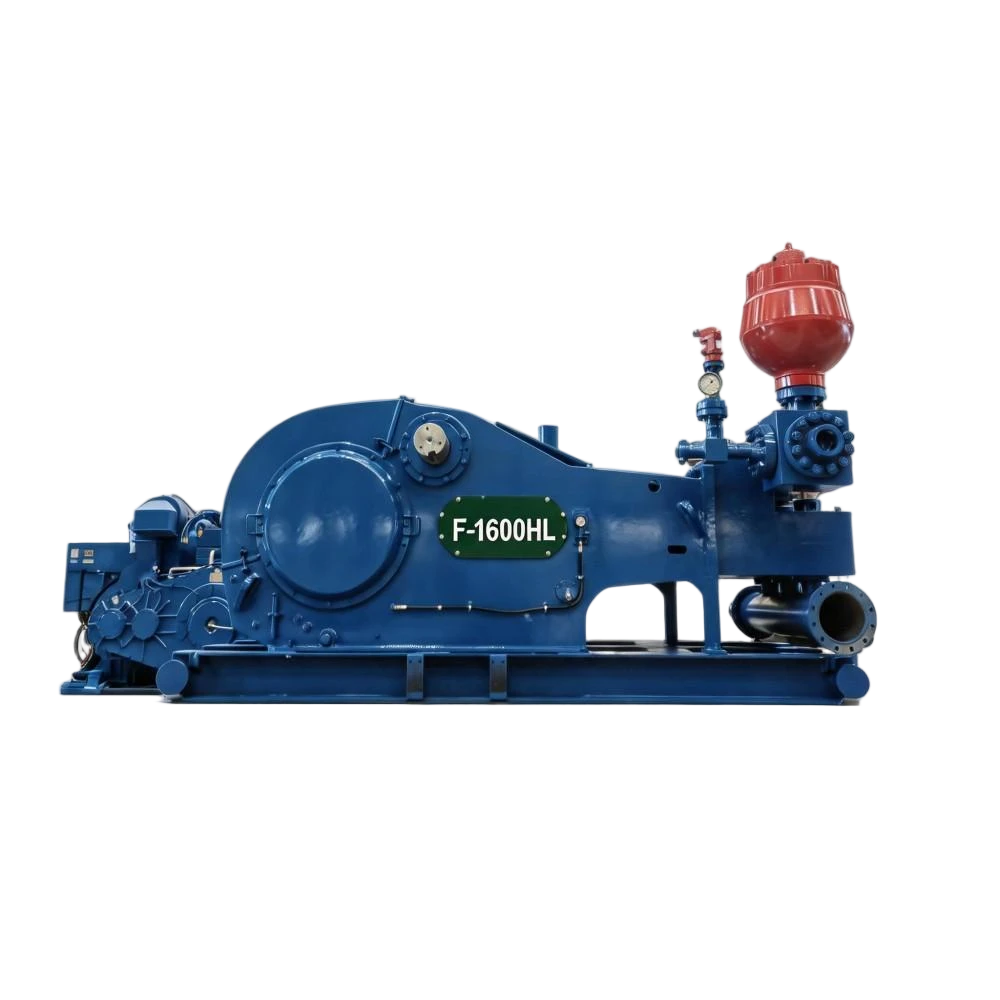

| F-1600HL | Triplex single acting | 1193 kW (1600 HP) | 120 SPM | 304.8 mm (12 in) | 7 1/4 in | Herringbone | API 7# | 4.31:1 | 305 mm (12 in) | 5 1/8 in flange, 52 MPa | Forced & Splash | 51.7 MPa (7500 PSI) | 28,400 kg |
Specifications are presented for reference. Rated working pressure reflects the fluid-end configuration; achievable pressure changes with liner diameter and operating conditions and should be confirmed for the specific application.
For a detailed comparison of F-Series models, specifications and high-pressure configurations, see our F-Series Mud Pump Models, Specifications & 7500 PSI Options technical article.
Applications
Offshore Drilling Mud Pump Replacement Parts
Corrosion-resistant power end and fluid end parts built for harsh marine conditions, fully interchangeable with mainstream F-series triplex mud pumps and designed for extended runtime between maintenance.
Deep Well Onshore Drilling Pump Components
Heavy-duty pump parts rated for high-pressure deep drilling operations, including forged crankshafts, crossheads and fluid end modules, delivering consistent performance under continuous heavy load per API standards.
Workover & Land Drilling Aftermarket Pump Parts
Cost-effective OEM-compatible spare parts for routine onshore drilling and workover projects, covering common wear parts of power end, fluid end and structural assemblies to cut maintenance costs.

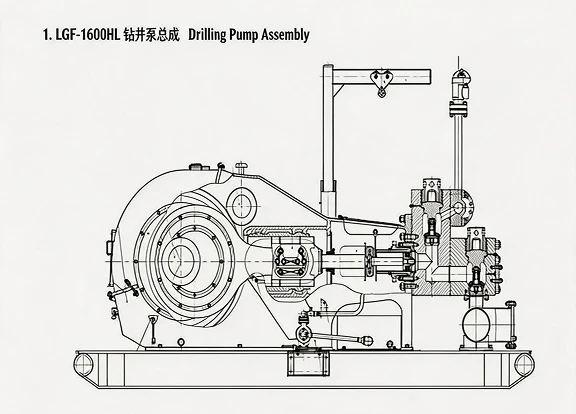

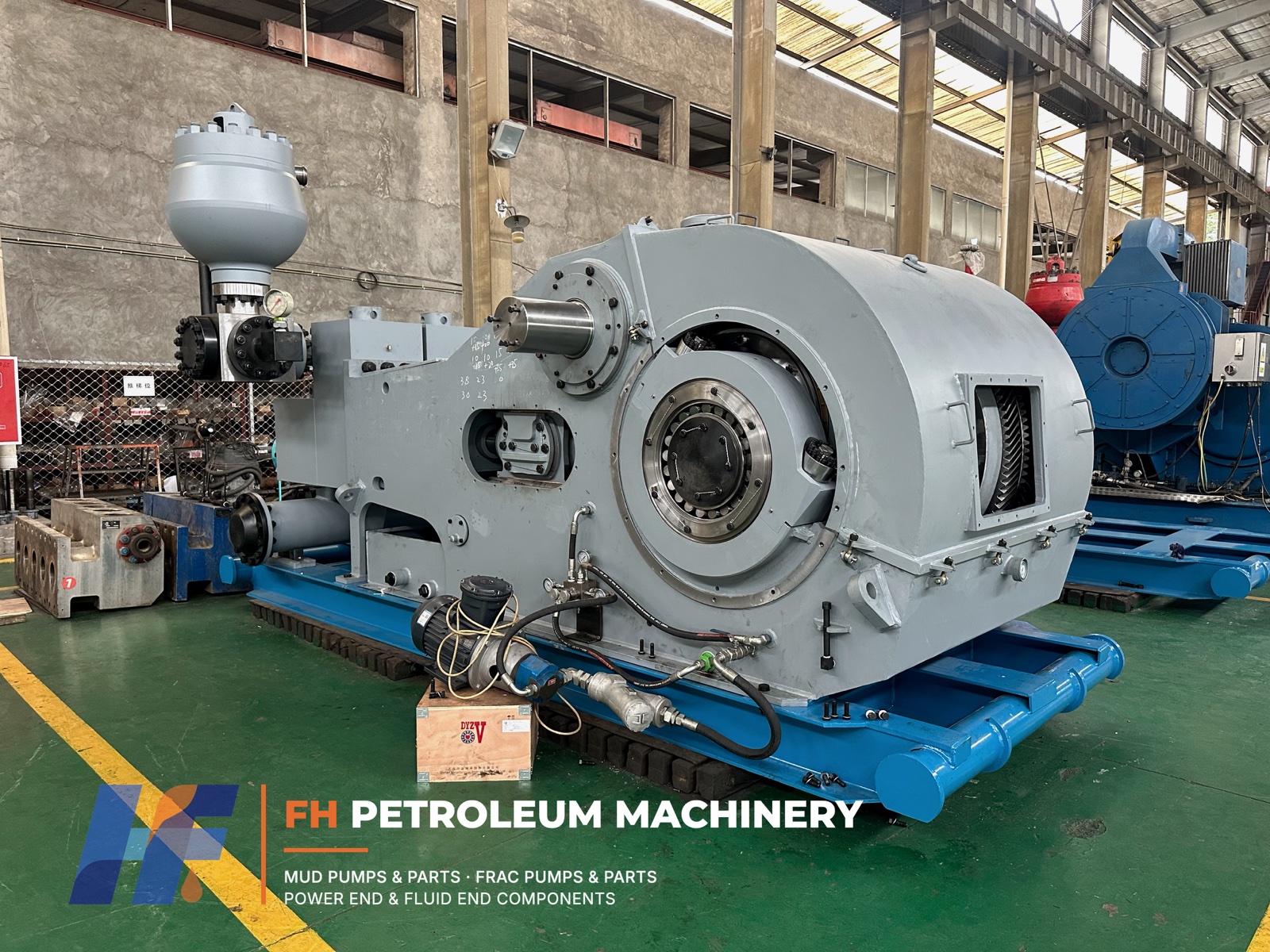

Power End Design & Assembly

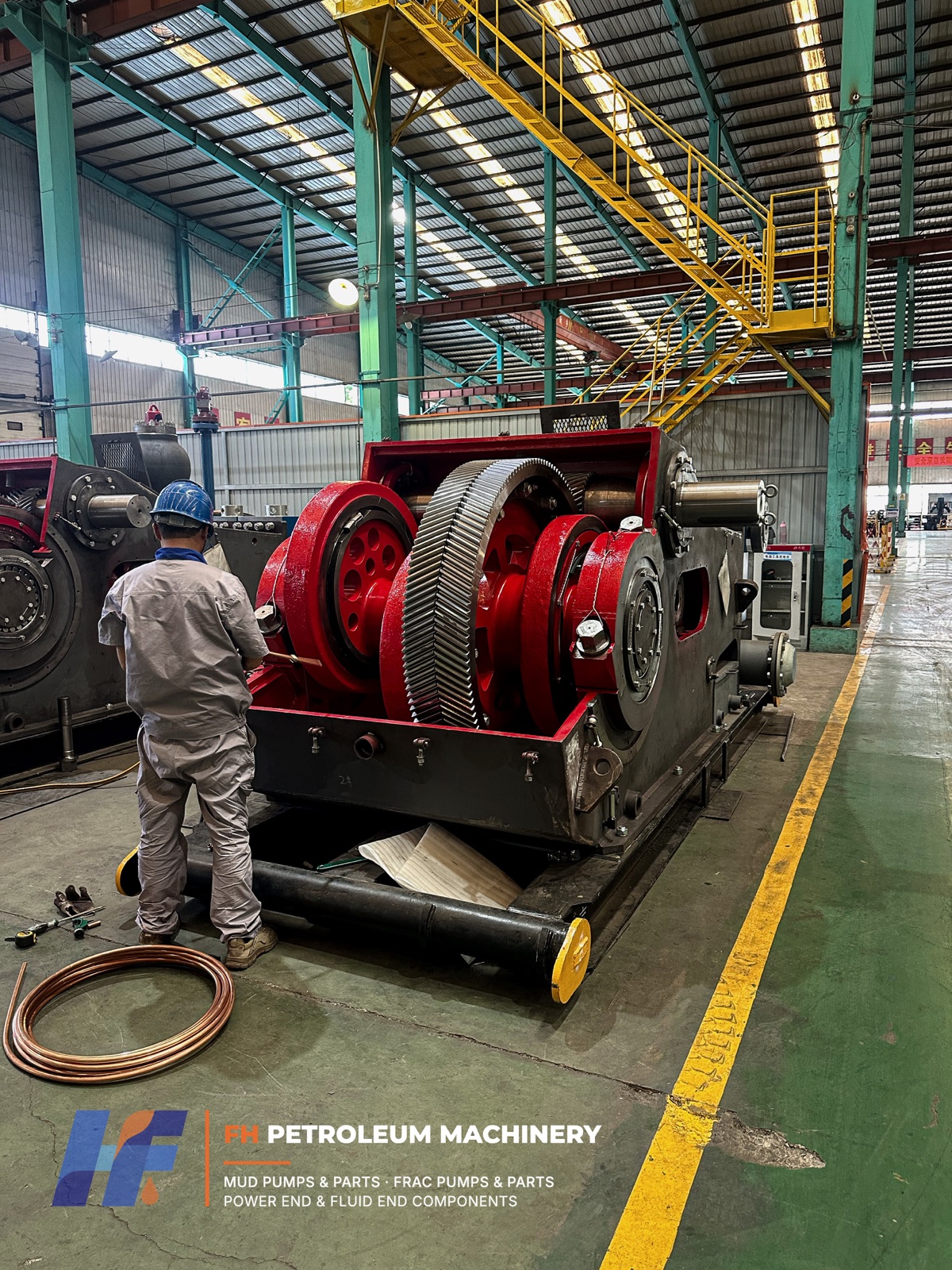

The F-Series mud pump power end converts rotary input into reciprocating motion through the pinion shaft, crankshaft, connecting rods and crosshead assemblies.
Power is transmitted from the pinion shaft to the main gear / crankshaft, then through the connecting rods and crossheads to the extension rods.
These assemblies operate within the power end frame and connect the drive input to the crosshead and piston rod system.
The fluid end operates according to the specific pump model and pressure configuration. Its main replaceable components include:
Fluid-end modules and internal components are selected to suit the required pump model, liner size, pressure configuration and operating conditions.
The F-1600HL represents the F-1600 7500 PSI configuration for applications requiring the corresponding higher-pressure fluid-end arrangement.
The F-1600HL remains a separate model designation from the standard F-1600. Fluid-end pressure capability and connections should be selected according to the required configuration.
FH Petroleum manufactures and supplies key replacement components for F-Series mud pump power ends and fluid ends. Component requirements are confirmed by pump model, drawing, part number or approved sample.
Replacement options include:
Complete F-Series mud pumps are manufactured through an API-certified pump manufacturing system in accordance with applicable API requirements. FH Petroleum supplies complete mud pumps together with replacement power end and fluid end components for international customers.
Manufacturing and inspection are carried out in accordance with applicable API 7K requirements for the corresponding mud pump configuration.
FH Petroleum also manufactures and supplies key mud pump power end and fluid end components for replacement and OEM supply requirements. Component dimensions, interfaces and technical requirements are confirmed according to the applicable pump model, drawings, part numbers or approved samples.
Use the technical specifications and article linked above to compare F-Series models and pressure configurations. Power-end and fluid-end replacement components are linked in the parts section.
For complete F-Series mud pump or replacement component requirements, send an inquiry with the pump model, required pressure, liner size, drawing or part number.
